Cabac HEATSHRINK THIN WALL 4.8MM YELLOW 1.2M XLP5Y/4FT

Description

Durable Electrical Insulation and Environmental Protection

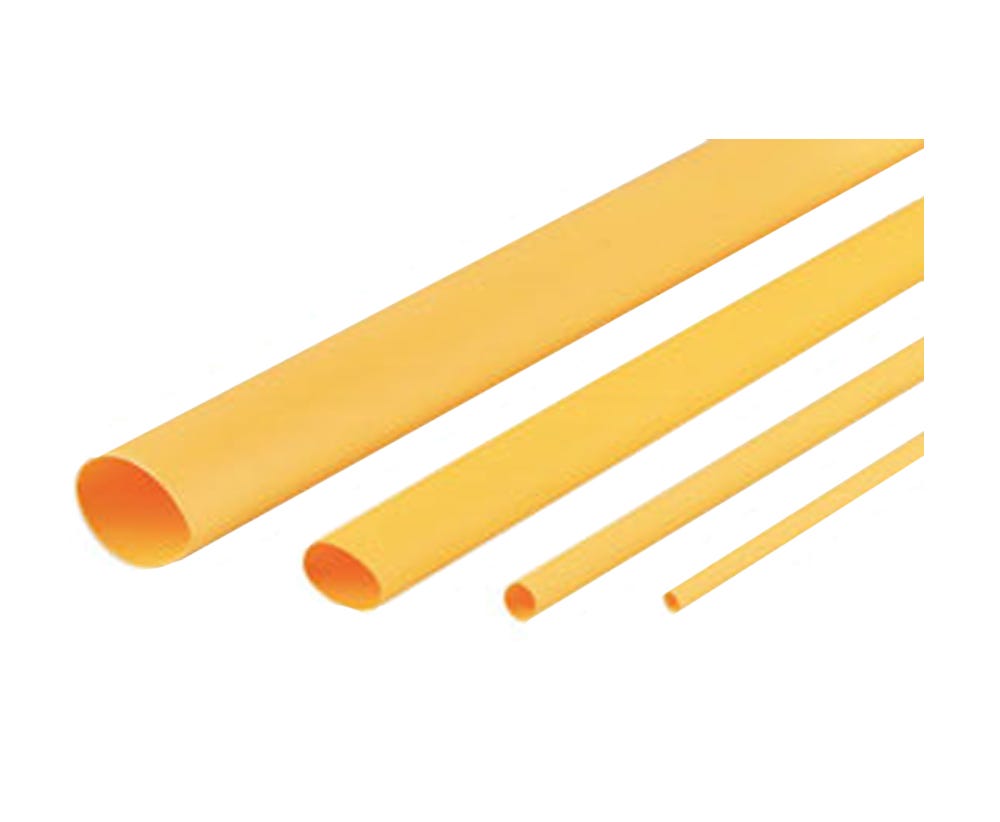

The CABAC yellow heat shrink tubing is engineered to protect electrical connections from everyday installation challenges. Its thin wall design provides insulation while maintaining flexibility, making it suitable for applications where space is limited.

The tubing is resistant to common fluids, solvents, abrasion, and UV exposure, helping maintain reliable performance in demanding electrical environments. With a continuous operating temperature range of -75°C to +135°C, it is suitable for a wide range of indoor and outdoor applications.

Professional-Grade Heat Shrink for Trade Applications

Built for electricians and electrical contractors, CABAC XLP5Y/4FT heat shrink tubing supports efficient cable identification and protection during installation and maintenance work. The yellow colour allows easy conductor identification and helps improve wiring organisation.

The polyolefin construction offers high tensile strength, excellent elongation properties, and reliable insulation performance. It is rated for 600V applications and provides a breakdown voltage of 25kV/mm wall thickness.

Certified Performance and Easy Installation

CABAC XLP heat shrink tubing meets recognised industry standards, including UL224 VW1 and ASTM D2671, giving tradespeople confidence in product quality and compliance.

For best results, the tubing can be installed using a CABAC heat gun to achieve consistent shrinking and a professional finish. Available in various colours and sizes, the XLP range provides flexible options for electrical repairs, cable assemblies, and installation projects.

Key Specs

• Brand: CABAC
• Model: XLP5Y/4FT
• Colour: Yellow
• Material: Electron beam cross-linked polyolefin
• Wall Type: Thin wall
• Pre-shrink diameter: 4.8mm
• After-shrink diameter: 2.4mm
• Recovered wall thickness: 0.48mm
• Length: 1.2m
• Shrink ratio: Approximately 2:1
• Operating temperature: -75°C to +135°C
• Shrink temperature: >105°C
• Voltage rating: 600V
• Tensile strength: 10.4MPa
• Elongation at break: 400%
• Breakdown voltage: 25kV/mm wall thickness
• Water absorption: 0.15% maximum
• Standards compliance: UL224 VW1, ASTM D2671
• Glue lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical contractors working on residential, commercial, and industrial installations
• Cable identification and colour coding applications
• Protecting electrical joints, terminals, and wire connections
• Maintenance and repair work requiring durable heat shrink protection
• Trade professionals needing compliant electrical accessories with consistent performance
