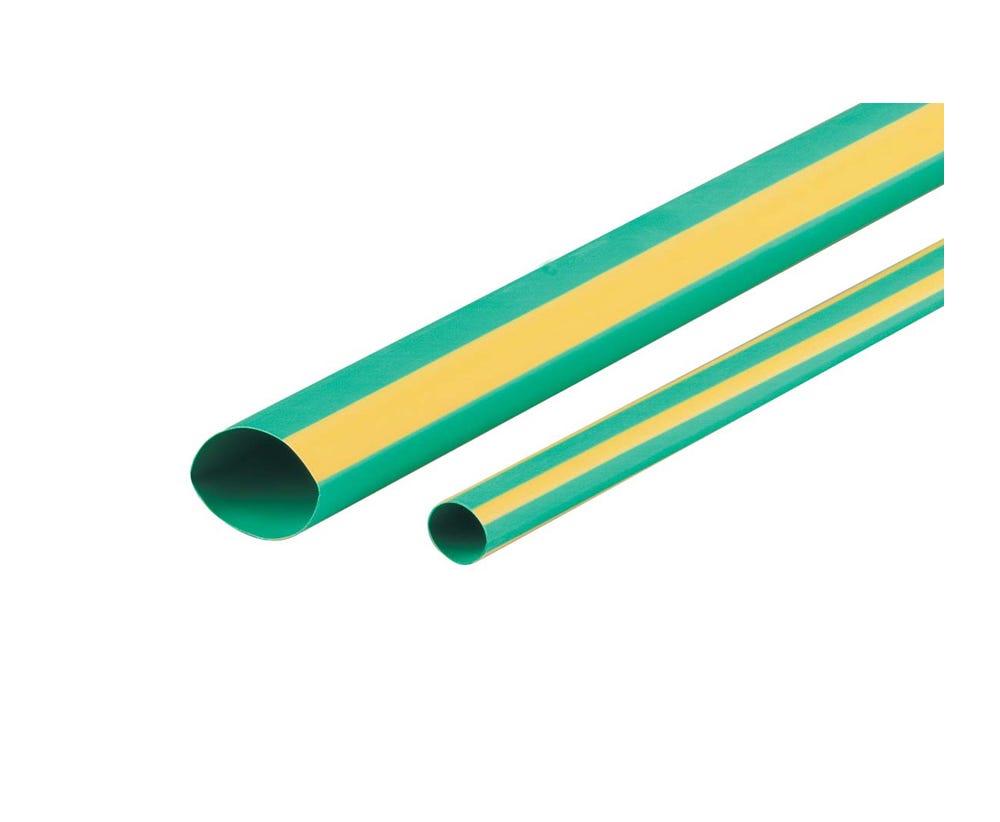

Cabac HEATSHRINK THIN WALL 4.8MM YELGRN 1.2M XLP5YG/4FT

Description

Reliable Electrical Insulation and Protection

Designed for professional electrical installations, CABAC thin wall heat shrink tubing creates a secure insulating layer around cables, terminals, and connections. When heat is applied, the tubing shrinks down to approximately 50% of its original diameter, forming a tight fit that helps protect against moisture, abrasion, and mechanical damage.

The yellow/green colour provides clear conductor identification, making it ideal for earth wire applications where fast recognition and installation accuracy are required. Its thin wall design allows for neat installations while maintaining effective electrical protection.

Durable Polyolefin Construction for Trade Applications

Built from high-quality cross-linked polyolefin, the CABAC XLP range is engineered to withstand demanding electrical environments. The tubing is flame retardant, UV resistant, and resistant to common fluids and solvents, helping maintain performance in residential, commercial, and industrial applications.

With an operating temperature range of -75°C to +135°C and a voltage rating of 600V, this heat shrink tubing provides reliable protection across various electrical projects. It is also UL224 VW1 certified and complies with ASTM D2671 standards, ensuring suitability for professional trade use.

Convenient Heat Shrink Solution for Electricians

The CABAC XLP5YG/4FT comes in a convenient 1.2m length, making it practical for repair work, electrical assemblies, maintenance tasks, and installation projects. Compatible with standard heat application tools, including CABAC heat guns, it allows electricians to quickly create secure and professional cable protection.

Available through iSupply Electrical, this CABAC heat shrink tubing is a dependable choice for licensed electricians and contractors seeking quality electrical accessories with competitive trade pricing and reliable supply.

Key Specs

• Brand: CABAC
• Model: XLP5YG/4FT
• Type: Thin wall heat shrink tubing
• Colour: Yellow/Green
• Material: Electron beam cross-linked polyolefin
• Pre-shrink diameter: 4.8mm
• After-shrink diameter: 2.4mm
• Length: 1.2m
• Recovered wall thickness: 0.48mm
• Shrink ratio: Approximately 2:1
• Operating temperature: -75°C to +135°C
• Shrink temperature: Greater than 105°C
• Voltage rating: 600V
• Tensile strength: 10.4 MPa
• Elongation at break: 400%
• Breakdown voltage: 25 kV/mm wall thickness
• Flame retardant: Yes
• UV resistant: Yes
• Glue lined: No
• Standards: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical contractors working on residential, commercial, and industrial projects
• Earth conductor identification and colour coding applications
• Cable repair and maintenance work
• Switchboard and control panel wiring
• Protecting electrical connections from abrasion and environmental exposure
• Professional installations requiring certified heat shrink tubing
