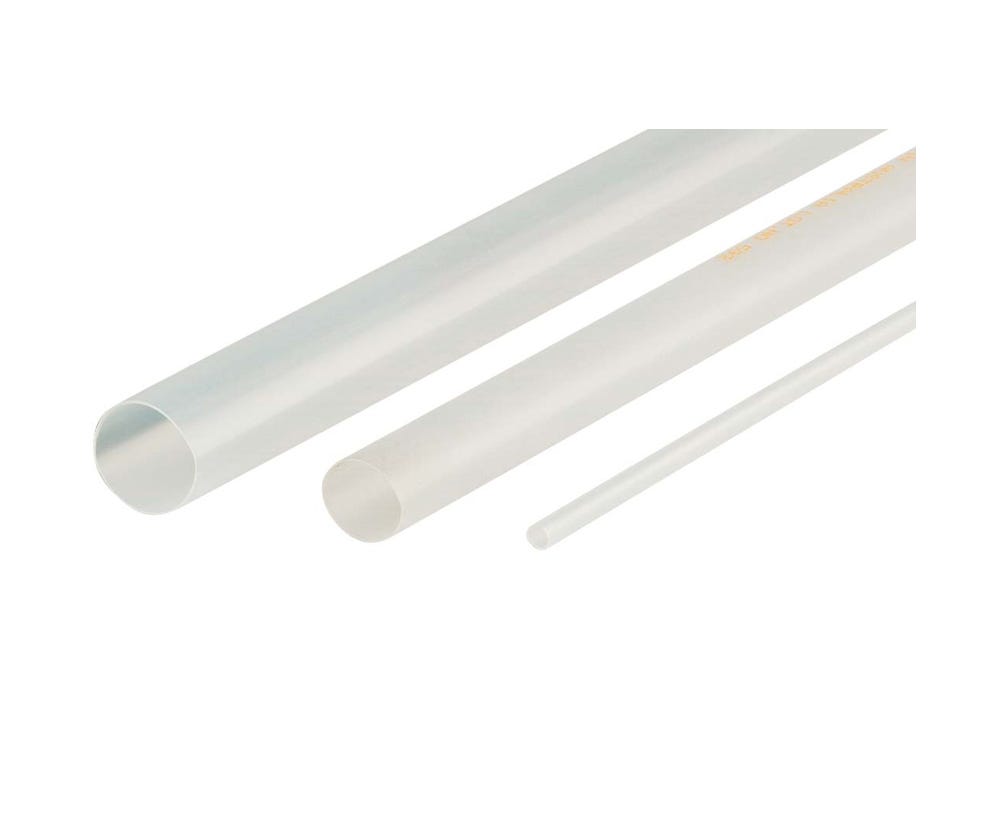

Cabac HEATSHRINK THIN WALL 4.8MM WHITE 10M BOX XLP5WH-10M

Description

Reliable Electrical Protection with CABAC Thin Wall Heat Shrink

The CABAC XLP5WH-10M Thin Wall Heat Shrink Tubing provides electricians and contractors with a dependable solution for insulating, protecting, and colour coding electrical conductors. Manufactured from electron beam cross-linked polyolefin, this 4.8mm white heat shrink tube delivers excellent mechanical strength while maintaining flexibility for easy installation.

Designed for professional electrical applications, the tubing shrinks to approximately 50% of its original diameter when heated, creating a secure and protective layer around cables, terminals, and connections. Its thin wall construction makes it ideal where space is limited while still providing reliable insulation performance.

Flame Retardant Design for Harsh Electrical Environments

Built to withstand demanding conditions, CABAC heat shrink tubing offers resistance against common fluids, solvents, abrasion, and UV exposure. The flame-retardant polyolefin material helps improve installation safety while maintaining long-term performance in residential, commercial, and industrial environments.

With a continuous operating temperature range of -75°C to +135°C and a voltage rating of 600V, the XLP range is engineered for dependable electrical protection. The tubing is UL certified and complies with recognised standards including UL224 VW1 and ASTM D2671, helping electrical professionals meet quality and compliance requirements.

Trade-Ready Heat Shrink Solution for Electrical Professionals

Supplied in a convenient 10-metre box, the CABAC XLP5WH-10M is suitable for everyday electrical installation, maintenance, and repair work. Its white finish provides an effective option for cable identification and organised wiring systems.

Available in multiple colours and sizes from 1.5mm to 125mm, the CABAC XLP range gives contractors flexibility across various electrical applications. For best results, use with a CABAC heat gun for quick and consistent shrinking.

Key Specs

• Brand: CABAC
• Model: XLP5WH-10M
• Colour: White
• Pre-shrink diameter: 4.8mm
• After-shrink diameter: 2.4mm
• Recovered wall thickness: 0.48mm
• Length: 10m box
• Material: Electron beam cross-linked polyolefin
• Wall type: Thin wall
• Glue lined: No
• Operating temperature: -75°C to +135°C
• Shrink temperature: >105°C
• Voltage rating: 600V
• Tensile strength: 10.4 MPa
• Elongation at break: 400%
• Breakdown voltage: 25 kV/mm wall thickness
• Standards: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable heat shrink tubing for installations
• Electrical contractors working on residential, commercial, and industrial projects
• Cable insulation, protection, and identification applications
• Repair and maintenance of electrical connections and wiring systems
• Installations requiring resistance against moisture, solvents, abrasion, and UV exposure
• Trade professionals seeking compliant CABAC electrical accessories
