Cabac HEATSHRINK THIN WALL 4.8MM WHITE 1.2M XLP5WH/4FT

Description

Reliable Electrical Insulation and Cable Protection

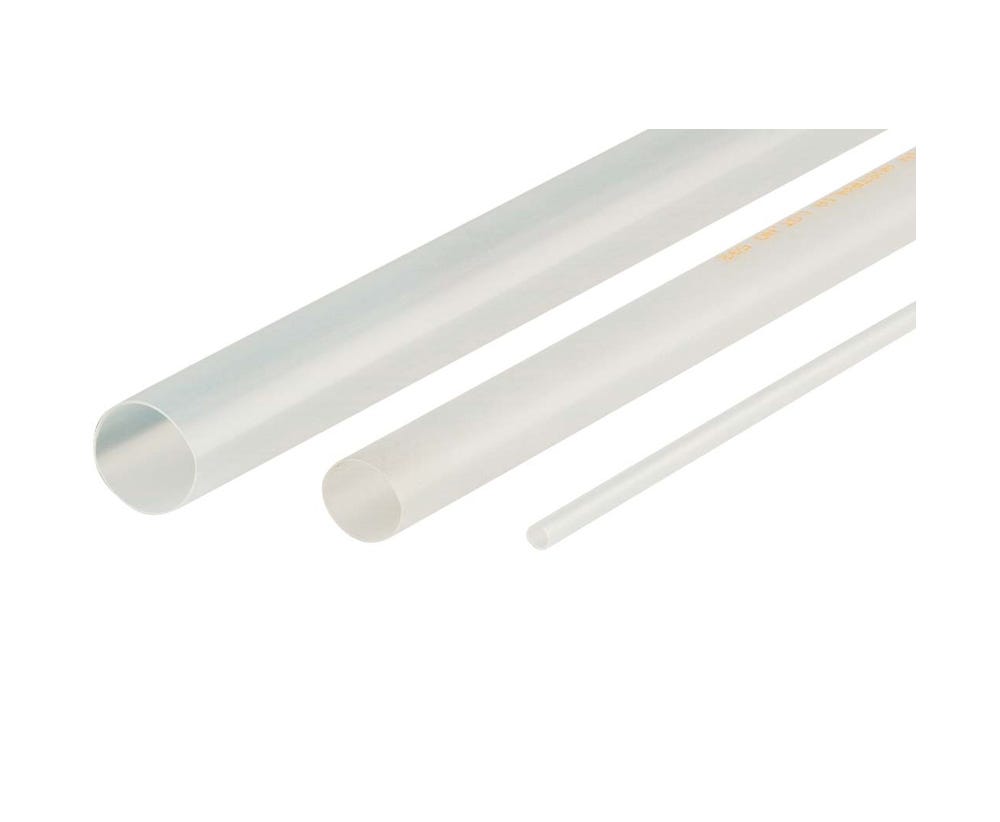

The CABAC XLP5WH/4FT Thin Wall Heat Shrink Tubing provides electricians and contractors with a dependable solution for insulating, protecting, and identifying electrical conductors. Designed from flame-retardant polyolefin, this white heat shrink tubing delivers excellent electrical and mechanical protection while helping maintain neat and professional cable installations.

With a pre-shrink diameter of 4.8mm and a recovered diameter of approximately 2.4mm, the tubing contracts tightly around wires and cables when heat is applied. This creates a secure protective layer that helps prevent damage caused by abrasion, impact, moisture, and common workplace contaminants.

Durable Polyolefin Construction for Trade Applications

Manufactured using high-energy electron beam cross-linking technology, CABAC XLP heat shrink tubing provides enhanced durability and consistent performance across demanding electrical environments. The material is flexible, flame retardant, and resistant to common fluids and solvents, making it suitable for residential, commercial, and industrial electrical applications.

The white finish is ideal for cable identification, colour coding, and organised electrical installations where clear conductor recognition is required. The tubing offers reliable performance across a wide operating temperature range from -75°C to +135°C and supports applications up to a 600V voltage rating.

Certified Heat Shrink Solution for Professional Installations

CABAC XLP thin wall heat shrink tubing meets recognised international standards, including UL224 VW1 and ASTM D2671, providing electricians confidence in product quality and compliance. The tubing is designed for quick installation using a suitable heat gun, shrinking at temperatures above 105°C for a tight and secure fit.

Available through iSupply Electrical, CABAC heat shrink tubing supports trade professionals with reliable electrical accessories, competitive pricing, and convenient ordering options for projects of all sizes.

Key Specs

• Brand: CABAC
• Product Series: XLP Thin Wall Heat Shrink
• Colour: White
• Material: Electron Beam Cross Linked Polyolefin
• Wall Type: Thin Wall
• Pre-Shrink Diameter: 4.8mm
• After-Shrink Diameter: 2.4mm
• Recovered Wall Thickness: 0.48mm
• Length: 1.2m (4ft)
• Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Voltage Rating: 600V
• Tensile Strength: 10.4 MPa
• Elongation at Break: 400%
• Breakdown Voltage: 25 kV/mm wall thickness
• Water Absorption: 0.15% maximum
• Longitudinal Shrinkage: Less than 5%
• Flame Retardant: Yes
• UV Resistant: Yes
• Glue Lined: No
• Standards: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable heat shrink insulation
• Electrical contractors completing residential, commercial, and industrial installations
• Cable identification and conductor colour coding applications
• Protecting electrical connections from abrasion and environmental exposure
• Maintenance and repair work requiring durable cable protection
• Switchboard, control panel, and electrical assembly projects
• Trade professionals needing compliant electrical accessories with consistent performance
