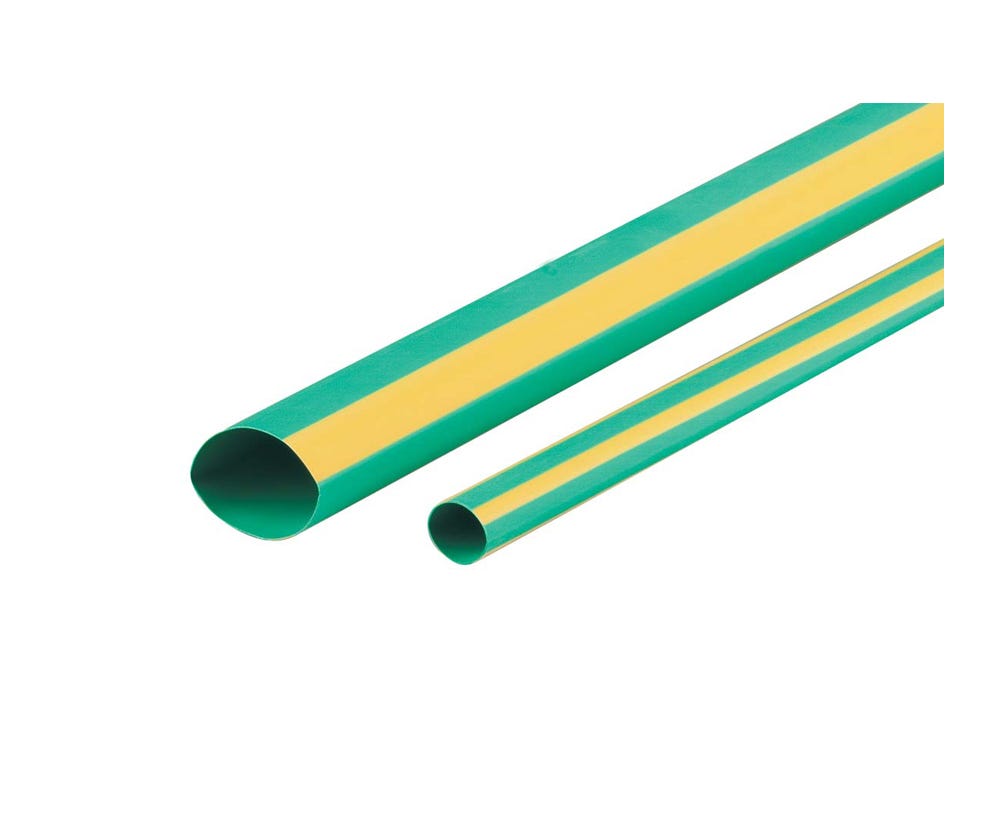

Cabac HEATSHRINK THIN WALL 38MM YELGRN 1.2M XLP38YG/4FT

Description

Reliable Electrical Insulation and Conductor Protection

The CABAC XLP38YG/4FT Thin Wall Heatshrink Tubing provides dependable electrical insulation, mechanical protection, and conductor identification for professional electrical applications. Designed from electron beam cross-linked polyolefin, this 38mm heat shrink tubing delivers a secure, durable covering that protects cables and conductors from abrasion, impact, and environmental exposure.

The yellow/green colour makes this heat shrink sleeve ideal for identification purposes, particularly where clear conductor marking is required during electrical installation and maintenance work. When heat is applied, the tubing reduces to approximately 50% of its original diameter, creating a tight-fitting layer around the cable or connection point.

Durable Polyolefin Construction for Trade Applications

Built for demanding electrical environments, CABAC thin wall heat shrink tubing is flame retardant, UV resistant, and resistant to common fluids and solvents. Its flexible construction allows easy installation while maintaining excellent mechanical strength after shrinking.

With an operating temperature range of -75°C to +135°C and a 600V voltage rating, this electrical heat shrink tubing is suitable for a wide range of residential, commercial, and industrial electrical applications. The tubing is manufactured using high-energy electron beam cross-linking technology to improve performance, durability, and long-term reliability.

CABAC recommends using compatible heat guns such as the HG2232 or HG2233 for efficient shrinking and consistent installation results.

Certified Heat Shrink Solution for Electrical Professionals

The CABAC XLP range is designed to meet the needs of electricians and contractors requiring dependable cable protection products. This yellow/green heat shrink sleeve complies with UL224 VW1 and ASTM D2671 standards, ensuring quality and performance for professional installations.

Available in various sizes and colours, CABAC XLP heat shrink tubing provides a practical solution for cable repairs, wire bundling, insulation, and electrical identification tasks.

Key Specs

• Brand: CABAC
• Model: XLP38YG/4FT
• Type: Thin wall heat shrink tubing
• Colour: Yellow/Green
• Material: Electron beam cross-linked polyolefin
• Pre-shrink diameter: 38.1mm
• After-shrink diameter: 19.1mm
• Length: 1.2m
• Recovered wall thickness: 1mm
• Shrink ratio: Approximately 2:1
• Operating temperature: -75°C to +135°C
• Shrink temperature: Above 105°C
• Voltage rating: 600V
• Tensile strength: 10.4 MPa
• Elongation at break: 400%
• Breakdown voltage: 25 kV/mm wall thickness
• Water absorption: 0.15% maximum
• Flame retardant: Yes
• UV resistant: Yes
• Glue lined: No
• Standards compliance: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable cable insulation products
• Electrical contractors completing residential and commercial installations
• Switchboard and control panel wiring applications
• Cable identification and colour coding tasks
• Electrical repairs and maintenance work
• Industrial environments requiring abrasion and chemical resistance
• Trade professionals needing compliant heat shrink solutions
