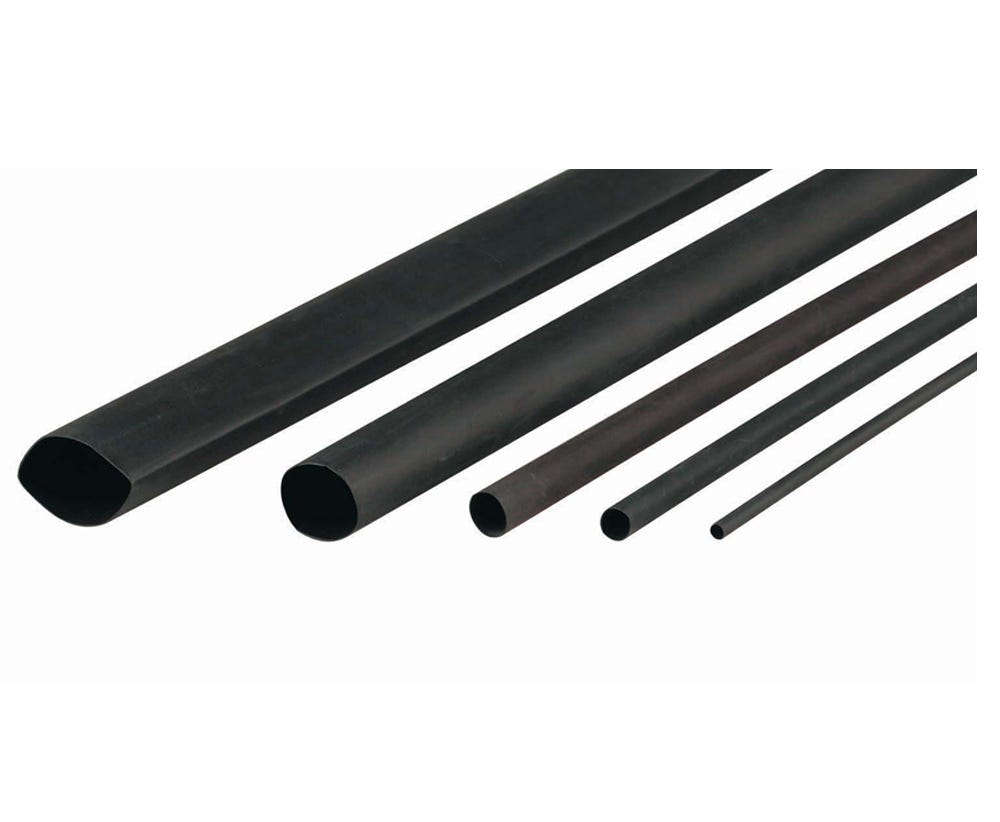

Cabac HEATSHRINK THIN WALL 38MM BLACK 1.2M XLP38BK/4FT

Description

Reliable Electrical Insulation and Cable Protection

The CABAC XLP38BK/4FT Heat Shrink Thin Wall Tubing provides electricians and contractors with a dependable solution for insulating, protecting, and identifying electrical conductors across a wide range of applications. Designed with a 38.1mm pre-shrink diameter and supplied in a convenient 1.2m length, this black heat shrink tubing creates a secure protective layer around cables, terminals, and electrical connections.

Manufactured from electron beam cross-linked polyolefin, the XLP range delivers excellent mechanical strength while maintaining flexibility for easy installation. When heat is applied, the tubing shrinks down to approximately 50% of its original size, forming a tight and professional finish around electrical components.

Flame Retardant Design Built for Harsh Environments

CABAC black thin wall heat shrink tubing is engineered to withstand demanding electrical environments. Its flame-retardant construction helps improve installation safety, while resistance to abrasion, common fluids, and solvents ensures long-lasting protection in industrial, commercial, and maintenance applications.

With a continuous operating temperature range of -75°C to +135°C and a 600V voltage rating, this heat shrink tube is suitable for protecting electrical systems exposed to varying temperature conditions. The UV-resistant material also helps maintain performance when installed in outdoor environments.

The CABAC XLP range complies with recognised standards including UL224 VW1 and ASTM D2671, providing electricians with confidence when selecting compliant electrical protection materials.

Professional Heat Shrink Solution for Trade Applications

Designed for professional electrical installations, the CABAC XLP38BK/4FT helps reduce installation time while delivering a clean and reliable finish. It is suitable for insulating cable joints, protecting terminals, bundling conductors, and colour coding electrical wiring systems.

Available in multiple sizes and colours, the XLP heat shrink range provides flexibility for different project requirements. For best results, use with a suitable CABAC heat gun to achieve consistent shrinkage and secure coverage.

Key Specs

• Brand: CABAC
• Model: XLP38BK/4FT
• Colour: Black
• Material: Electron Beam Cross Linked Polyolefin
• Wall Type: Thin Wall
• Pre-Shrink Diameter: 38.1mm
• After-Shrink Diameter: 19.1mm
• Length: 1.2m
• Recovered Wall Thickness: 1mm
• Shrink Ratio: Approximately 2:1
• Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Voltage Rating: 600V
• Tensile Strength: 10.4 MPa
• Elongation at Break: 400%
• Breakdown Voltage: 25 kV/mm wall thickness
• Flame Retardant: Yes
• UV Resistant: Yes
• Glue Lined: No
• Standards Compliance: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical contractors completing residential, commercial, and industrial installations
• Switchboard builders requiring conductor protection and identification
• Maintenance professionals repairing and upgrading electrical systems
• Cable jointing, terminal protection, and wire management applications
• Outdoor electrical installations requiring UV-resistant protection
• Trade projects requiring compliant electrical accessories from trusted brands
