Cabac HEATSHRINK THIN WALL 3.2MM YELLOW 1.2M XLP3Y/4FT

Description

Reliable Electrical Insulation and Cable Protection

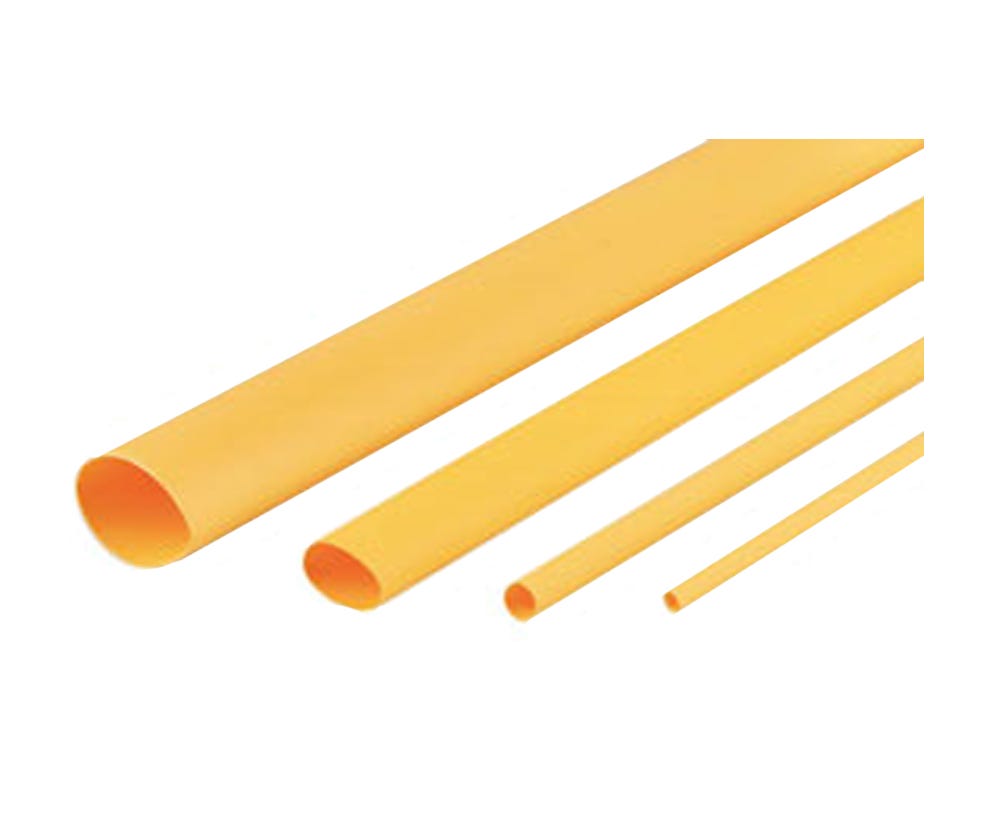

The CABAC XLP3Y/4FT Yellow Thin Wall Heat Shrink Tubing is designed to provide dependable insulation, protection, and colour identification for electrical conductors across residential, commercial, and industrial applications. Manufactured from flame retardant polyolefin using electron beam cross-linking technology, this 3.2mm heat shrink tube delivers a secure fit and long-lasting performance when exposed to demanding environments.

When heated, the tubing shrinks to approximately 50% of its original diameter, creating a tight protective layer around cables, terminals, and connections. The thin wall design allows for easy installation while maintaining excellent electrical insulation properties. With a yellow finish, it is ideal for cable identification, phase marking, and improving organisation within electrical systems.

CABAC heat shrink tubing provides protection against common fluids, solvents, abrasion, and UV exposure, helping reduce the risk of cable damage during installation and ongoing operation. Its flexible construction allows electricians to achieve clean and professional results without compromising durability.

Designed for Professional Electrical Applications

Built for trade environments, the CABAC XLP range meets recognised international standards including UL224 VW1 and ASTM D2671, ensuring reliable performance for professional electrical work. The tubing features a 600V voltage rating and strong resistance against heat, moisture, and mechanical stress.

With a continuous operating temperature range from -75°C to +135°C, this yellow heat shrink tubing is suitable for applications requiring dependable insulation performance across varying conditions. Its high tensile strength and excellent elongation properties allow it to withstand movement and installation stress without cracking or splitting.

The CABAC XLP3Y/4FT is supplied as a convenient 1.2 metre length, making it suitable for repair work, cable assembly, maintenance tasks, and electrical installations requiring consistent cable protection.

Trade-Ready Heat Shrink Solution

For electricians and contractors, having reliable electrical accessories readily available helps improve workflow and reduce installation delays. CABAC heat shrink tubing offers a practical solution for insulating connections, protecting exposed conductors, and maintaining professional installation standards.

Available in multiple colours and sizes, the XLP range supports different identification requirements across electrical systems. Whether used for residential wiring, commercial fit-outs, industrial maintenance, or equipment repairs, this thin wall heat shrink provides dependable protection backed by CABAC quality.

Key Specs

• Brand: CABAC
• Model: XLP3Y/4FT
• Colour: Yellow
• Material: Electron Beam Cross Linked Polyolefin
• Wall Type: Thin Wall
• Pre-Shrink Diameter: 3.2mm
• After-Shrink Diameter: 1.6mm
• Recovered Wall Thickness: 0.48mm
• Length: 1.2m
• Voltage Rating: 600V
• Continuous Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Tensile Strength: 10.4 MPa
• Elongation at Break Point: 400%
• Breakdown Voltage: 25 kV/mm wall thickness
• Water Absorption: 0.15% max
• Longitudinal Shrinkage: <5%
• Compliance Standards: UL224 VW1, ASTM D2671
• Glue Lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical contractors completing residential and commercial installations
• Cable identification and colour coding applications
• Protecting electrical connections from abrasion and environmental exposure
• Maintenance and repair work requiring durable heat shrink protection
• Industrial electrical installations and equipment wiring
• Trade professionals seeking compliant CABAC electrical accessories
