Cabac HEATSHRINK THIN WALL 3.2MM GREEN 1.2M XLP3G/4FT

Description

Reliable Insulation and Protection for Electrical Applications

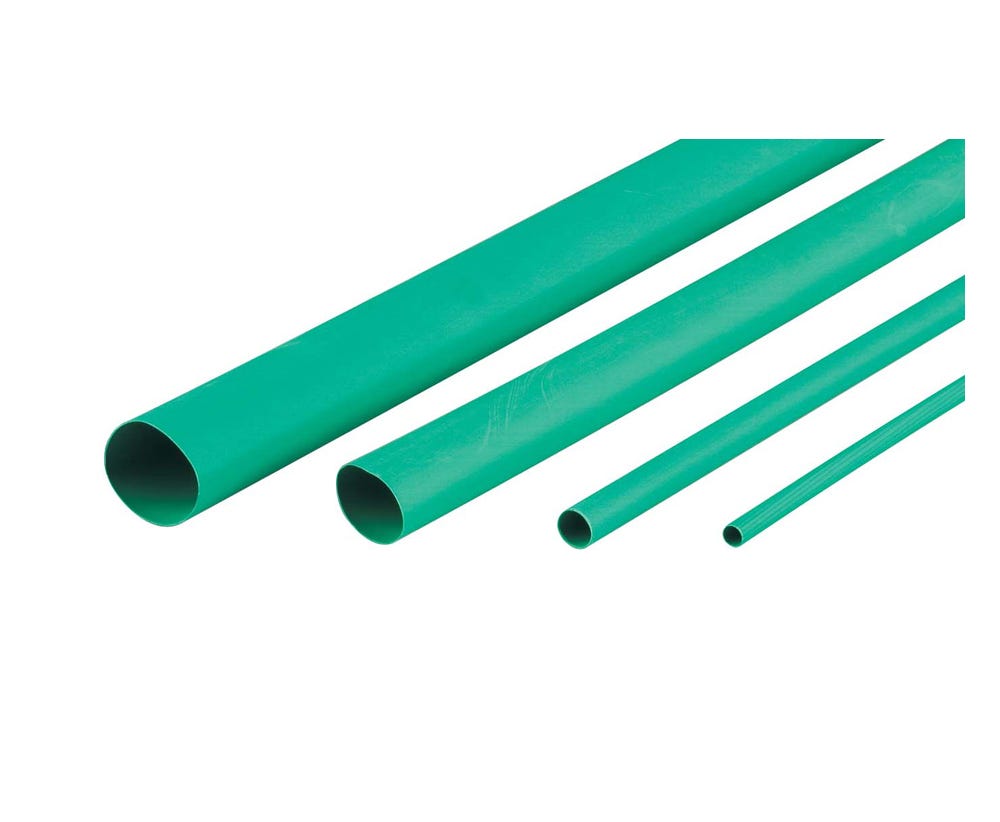

The CABAC XLP3G/4FT Green Thin Wall Heat Shrink Tubing provides dependable insulation, protection, and colour identification for electrical conductors across residential, commercial, and industrial installations. Designed from flame retardant polyolefin, this 3.2mm heat shrink tubing creates a secure protective layer around cables, terminals, and electrical connections.

When heat is applied, the tubing contracts to approximately 50% of its original diameter, forming a tight-fitting seal that improves insulation performance and protects against abrasion, impact, moisture, and environmental exposure. Its flexible construction allows easy installation while maintaining excellent durability for demanding trade applications.

Durable Polyolefin Construction Built for Trade Environments

Manufactured using electron beam cross-linked polyolefin technology, CABAC XLP heat shrink tubing delivers enhanced mechanical strength and long-term reliability. The green heat shrink tubing is resistant to common fluids, solvents, and UV radiation, making it suitable for electrical installations where additional protection against harsh conditions is required.

With a continuous operating temperature range of -75°C to +135°C and a voltage rating of 600V, this thin wall heat shrink provides reliable performance in various electrical applications. It is also UL certified and complies with recognised standards including UL224 VW1 and ASTM D2671, giving electricians confidence in product quality and compliance.

Trade-Friendly Solution for Cable Identification and Maintenance

The CABAC green polyolefin heat shrink tubing is ideal for electricians who need a practical solution for wire marking, conductor insulation, repairs, and electrical assembly work. The green colour supports easy cable identification, helping improve organisation and efficiency during installation and maintenance tasks.

Available through iSupply Electrical, trade professionals can access reliable CABAC electrical accessories alongside thousands of other compliant electrical products with competitive pricing, fast delivery, and convenient ordering options.

Key Specs

• Brand: CABAC
• Model: XLP3G/4FT
• Product Colour: Green
• Material: Electron Beam Cross Linked Polyolefin
• Wall Type: Thin Wall
• Pre-Shrink Diameter: 3.2mm
• After-Shrink Diameter: 1.6mm
• Recovered Wall Thickness: 0.48mm
• Length: 1.2m
• Shrink Ratio: Approximately 2:1
• Shrink Temperature: >105°C
• Continuous Operating Temperature: -75°C to +135°C
• Voltage Rating: 600V
• Tensile Strength: 10.4 MPa
• Elongation at Break: 400%
• Breakdown Voltage: 25 kV/mm wall thickness
• Water Absorption: 0.15% maximum
• Flame Retardant Construction
• UV Resistant
• Resistant to Common Fluids, Solvents, and Abrasion
• Standards Compliance: UL224 VW1, ASTM D2671
• Glue Lined: No

Ideal For

• Licensed electricians requiring reliable cable insulation solutions
• Electrical contractors working on residential and commercial projects
• Wire identification and colour coding applications
• Protecting terminals, cable joints, and electrical connections
• Maintenance and repair work requiring durable insulation
• Switchboards, control panels, and electrical assemblies
• Applications requiring UV and abrasion resistance
• Trade installations requiring compliant electrical accessories
