Cabac HEATSHRINK THIN WALL 3.2MM CLEAR XLP3CL x 200

Description

Made from Electron Beam Cross Linked Polyolefin

Operating temperature -75 to +135 degrees Celsius

Resistant to common fluids, solvents and abrasion

Clear variant is NOT UL listed, UV resistant or flame retardant

Product Description

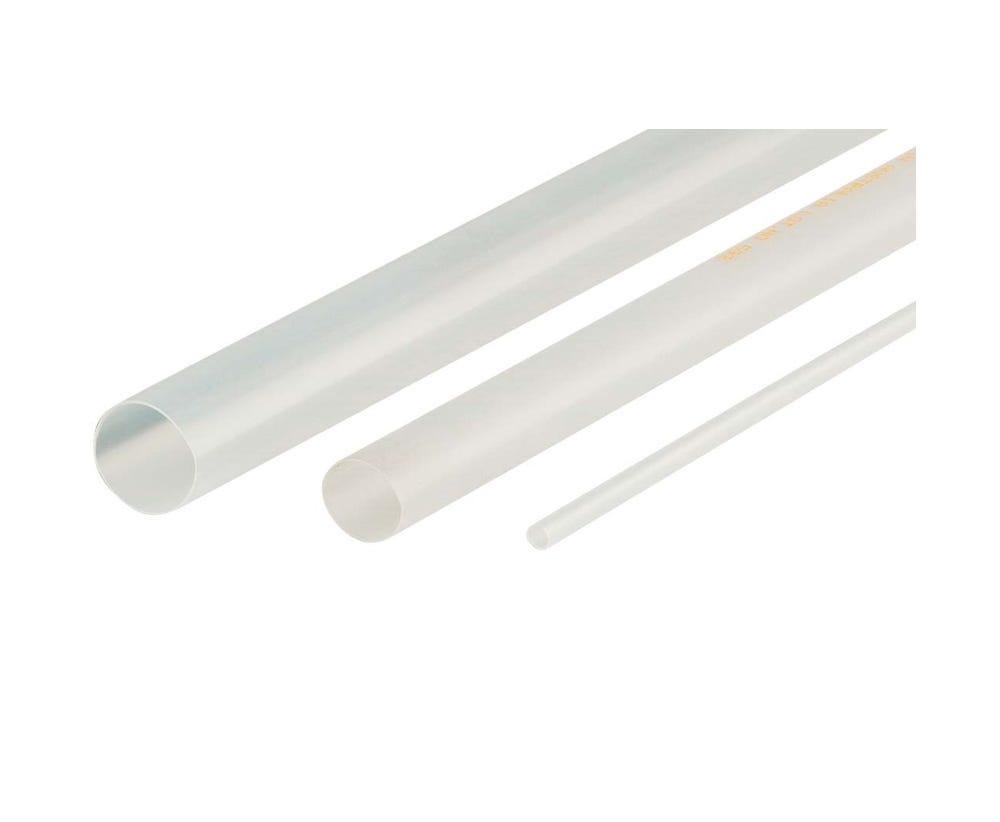

XLP Heatshrink Thin Wall 3.2mm Clear – Reel

XLP tubing is a chemically cross-linked tubing that conforms to MIL-1-23053/5 class 3. It will withstand -75°C to 135°C for normal operating conditions.

Black tubing withstands ultraviolet radiation. Tubing can easily be shrunk with a heatgun or a heat tunnel (Part No. HG2000 or HG2000C).

NOTE: All tubing in this range are flame retardant except clear, which is flammable and conforms to MIL-1-23053/5 Class 2.

XLP Heatshrink Thin Wall Features

? Highly flexible

? Flame retardant

? Abrasion and impact resistant

? For use in all electrical and electronic applications

? In-house cutting facility available for cut sleeves

? Full range 1.5mm to 125mm diameter with 2:1 shrink

? Available in most colours on reels or 4ft (1.2m) lengths

? Full range is UV stabilised

XLP tubing has numerous uses in the electrical and associated industries, including insulation, colour coding and mechanical protection.

Technical Data

Compliant Standards: UL224 VW1 File No. E366157 Conformant Standards: MIL-1-23053/5; JIS Material: Chemically, cross-linked, thermally stabilised flame retardant polyolefin Continuous Operating Temperature: -75°C to +135°C Shrinkage temp: > 100°C Longitudinal shrinkage: < 5% Tensile strength: 16 MPaBreakdown voltage: 25 kV/mm wall thickness Volume resistivity: 1.0 x 1014 ohm cm Elongation at break point: 400% Water absorption: 0.15% max Flammability: Passed ASTM-D-2671 UV stability: All tubing is stable Voltage rating: 600V Pre-cut service available for large quantities of tubing to customer specifications. Preferred supply option is a full reel of tubing. If your requirements are less than a full reel, please consider buying 4ft lengths. Technical Specifications

After-Shrink Diameter (mm): 0.48

Wall: Thin

Recovered Wall Thickness (mm): 1.6

Product Colour: Clear

Pre-Shrink Diameter (mm): 3.2

Glue Lined: No
