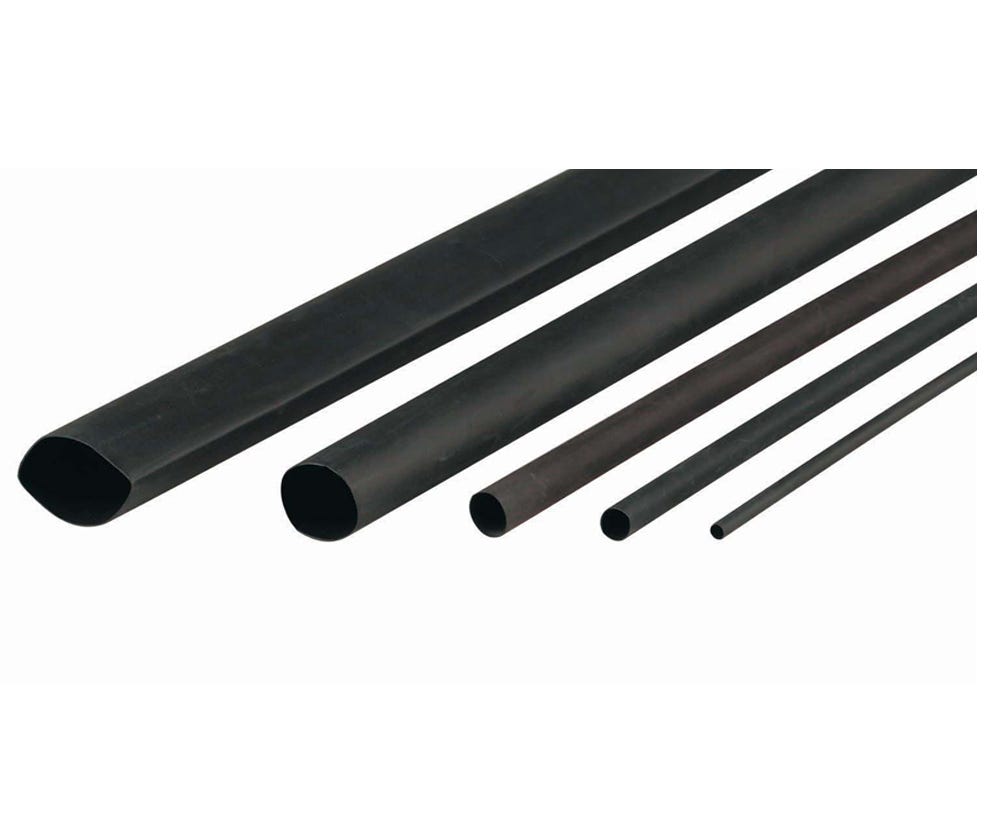

Cabac HEATSHRINK THIN WALL 3.2MM BLACK XLP3BK x 200

Description

Reliable Electrical Insulation and Protection for Trade Applications

The CABAC XLP3BK Thin Wall Heat Shrink Tubing provides electricians and contractors with a dependable solution for insulating, protecting, and colour coding electrical conductors. Manufactured from electron beam cross-linked polyolefin, this 3.2mm black heat shrink tubing delivers excellent durability while maintaining flexibility for easy installation across residential, commercial, and industrial applications.

Designed for professional electrical work, the thin wall construction allows the tubing to shrink tightly around wires and connections when heated, creating a secure protective layer. With resistance against abrasion, impact, common fluids, and solvents, the CABAC XLP range helps extend the service life of electrical components in demanding environments.

Durable Performance in Harsh Conditions

The CABAC XLP3BK heat shrink tubing is engineered to perform reliably across a wide temperature range from -75°C to +135°C. Its flame-retardant properties and UV resistance make it suitable for applications requiring additional protection against environmental exposure.

When heat is applied, the tubing recovers to approximately 50% of its original diameter, forming a tight fit around conductors and providing effective electrical insulation. The product is compatible with professional heat guns, including CABAC heat gun models, for efficient installation on-site.

Trade-Ready Heat Shrink Solution from CABAC

Built to meet professional electrical requirements, the CABAC XLP range complies with recognised standards including UL224 VW1 and ASTM D2671. Supplied as a 200m roll, this black thin wall heat shrink tubing provides excellent value and convenience for electricians requiring reliable stock availability for multiple projects.

Whether used for cable repairs, wire identification, insulation, or general electrical protection, CABAC XLP3BK delivers consistent performance trusted by trade professionals.

Key Specs

• Brand: CABAC
• Product Range: XLP Thin Wall Heat Shrink Tubing
• Colour: Black
• Pre-shrink Diameter: 3.2mm
• After-shrink Diameter: 1.6mm
• Length: 200m roll
• Wall Type: Thin wall
• Recovered Wall Thickness: 0.48mm
• Material: Electron beam cross-linked polyolefin
• Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Voltage Rating: 600V
• Tensile Strength: 10.4 MPa
• Elongation at Break Point: 400%
• Breakdown Voltage: 25 kV/mm wall thickness
• Water Absorption: 0.15% maximum
• Standards Compliance: UL224 VW1, ASTM D2671
• Glue Lined: No

Ideal For

• Licensed electricians performing electrical installations and repairs
• Electrical contractors requiring reliable insulation materials
• Maintenance teams servicing commercial and industrial equipment
• Cable protection and conductor insulation applications
• Wire identification and colour coding tasks
• Repairing and protecting electrical connections from environmental damage
• Projects requiring compliant electrical accessories and materials
