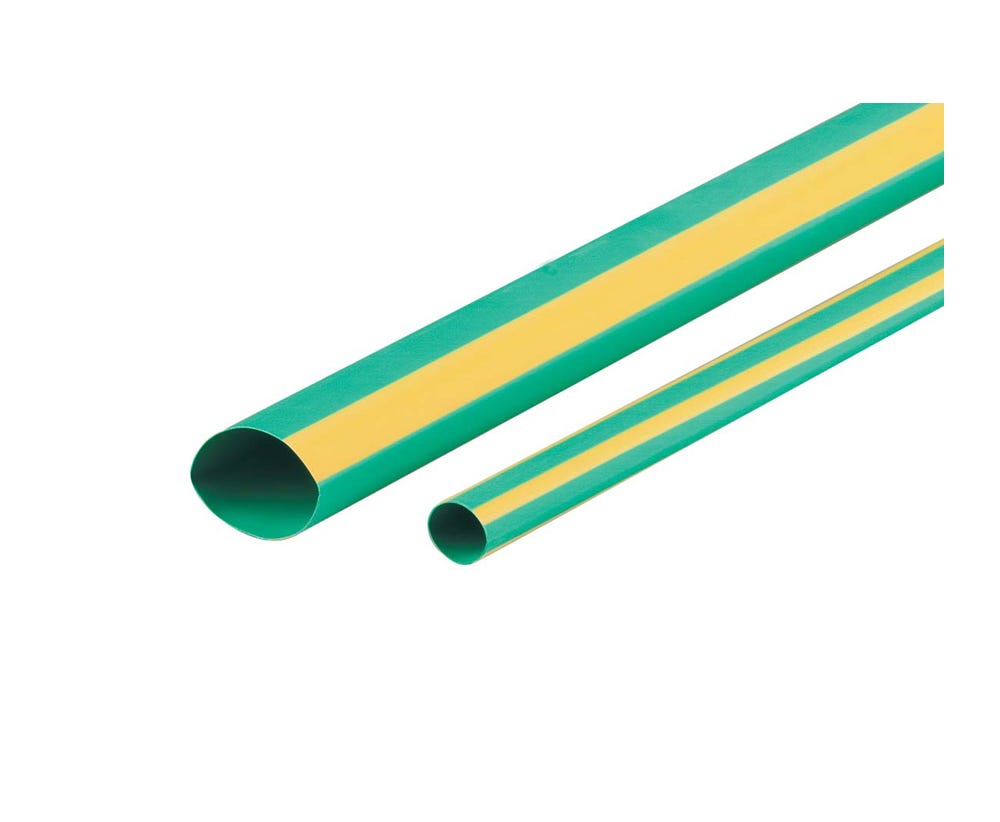

Cabac HEATSHRINK THIN WALL 25.4MM YELGRN 1.2M XLP25YG/4FT

Description

Reliable Electrical Insulation and Cable Protection

The CABAC XLP25YG/4FT Thin Wall Heat Shrink Tubing provides electricians and contractors with a dependable solution for insulating, protecting, and colour coding electrical conductors. Manufactured from Electron Beam Cross Linked Polyolefin, this yellow/green heat shrink tubing delivers excellent flexibility, durability, and resistance against common electrical installation challenges.

Designed for general-purpose electrical applications, the tubing shrinks down to approximately 50% of its original diameter when heated, creating a secure fit around cables and conductors. This helps improve insulation performance while providing additional mechanical protection against abrasion, impact, and everyday environmental exposure.

The yellow/green colour makes this heat shrink sleeve ideal for earth conductor identification, helping tradespeople maintain organised and compliant electrical installations.

Durable Performance for Trade and Industrial Applications

Built for demanding electrical environments, CABAC thin wall heat shrink tubing offers reliable protection against common fluids, solvents, and UV radiation. Its flame-retardant polyolefin construction supports safer installations while maintaining flexibility during application.

With a continuous operating temperature range of -75°C to +135°C, the XLP25YG/4FT is suitable for a wide range of residential, commercial, and industrial electrical projects. The tubing features a 600V voltage rating, 25kV/mm breakdown voltage, and strong tensile performance to provide long-lasting insulation protection.

CABAC XLP heat shrink tubing is UL certified and complies with recognised international standards, including UL224 VW1 and ASTM D2671, giving electrical professionals confidence in product quality and reliability.

Trade-Ready Heat Shrink Solution from CABAC

For electricians and contractors managing multiple installations, CABAC heat shrink tubing provides a practical and efficient method for cable protection and identification. Its 1.2m length allows flexibility for various repair, maintenance, and installation requirements.

Available in multiple colours and sizes, the XLP range supports different electrical applications, from cable repairs and termination protection to conductor marking and insulation reinforcement. Pair with a CABAC heat gun for efficient shrinking and a professional finish.

iSupply Electrical supplies trade-grade electrical products from trusted brands, helping contractors access reliable solutions with competitive pricing, fast delivery, and convenient ordering options across Australia.

Key Specs

• Brand: CABAC
• Model: XLP25YG/4FT
• Type: Thin Wall Heat Shrink Tubing
• Colour: Yellow/Green
• Material: Electron Beam Cross Linked Polyolefin
• Pre-Shrink Diameter: 25.4mm
• After-Shrink Diameter: 12.7mm
• Length: 1.2m
• Recovered Wall Thickness: 0.87mm
• Shrink Ratio: Approximately 2:1
• Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Voltage Rating: 600V
• Breakdown Voltage: 25kV/mm wall thickness
• Tensile Strength: 10.4MPa
• Elongation at Break: 400%
• Water Absorption: 0.15% maximum
• Flame Retardant: Yes
• UV Resistant: Yes
• Glue Lined: No
• Standards Compliance: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable cable insulation solutions
• Electrical contractors working on residential and commercial installations
• Switchboard builders needing conductor identification and protection
• Maintenance teams performing cable repairs and upgrades
• Industrial electrical applications requiring abrasion and chemical resistance
• Colour coding earth conductors and improving installation organisation
