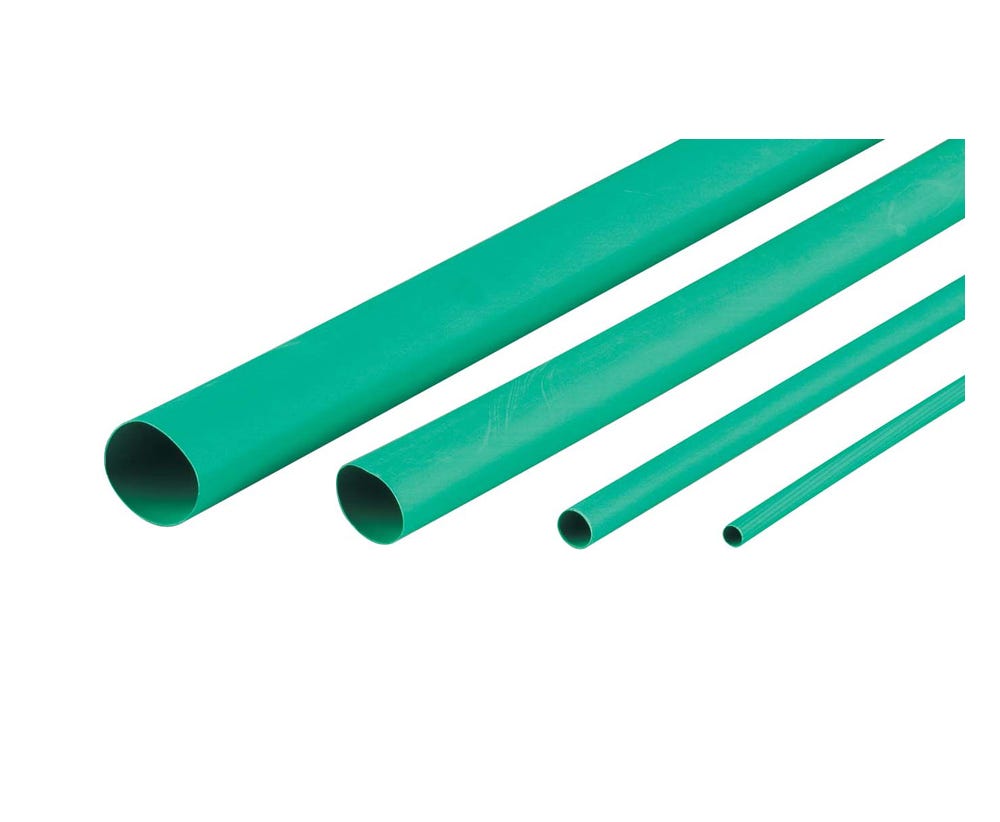

Cabac HEATSHRINK THIN WALL 25.4MM GREEN 1.2M XLP25G/4FT

Description

Reliable Electrical Insulation and Protection

Designed for everyday trade applications, CABAC thin wall heatshrink tubing shrinks to approximately 50% of its original diameter when heated above 105°C, creating a secure and professional finish around cables and conductors. Its flame-retardant construction provides additional safety while helping protect electrical connections against environmental contaminants and mechanical wear.

The flexible polyolefin material ensures straightforward installation around cable joints, terminations, and wiring assemblies while maintaining long-term durability in both indoor and outdoor environments.

Built for Harsh Australian Conditions

Engineered to perform in challenging installations, the CABAC XLP range operates continuously between -75°C and +135°C. The tubing is resistant to common fluids, solvents, abrasion, and UV radiation, making it suitable for industrial facilities, commercial buildings, and outdoor electrical infrastructure.

Compliant with UL224 VW1 and ASTM D2671 standards, this heatshrink tubing delivers dependable insulation performance with a voltage rating of 600V and breakdown voltage of 25 kV/mm wall thickness. Its low water absorption and excellent tensile strength further enhance reliability in demanding applications.

Trade-Ready Performance for Professional Installers

Available through iSupply Electrical, CABAC heatshrink tubing helps electricians complete installations efficiently while maintaining professional standards. The bright green finish simplifies conductor identification and cable management, reducing installation time and improving maintenance accessibility.

Whether used in switchboards, cable repairs, or new electrical projects, this heatshrink sleeve delivers the durability, flexibility, and protection required by Australian tradespeople.

Key Specs

• Brand: CABAC
• Product code: XLP25G/4FT
• Colour: Green
• Material: Electron beam cross-linked polyolefin
• Wall type: Thin wall
• Length: 1.2m
• Pre-shrink diameter: 25.4mm
• After-shrink diameter: 12.7mm
• Recovered wall thickness: 0.87mm
• Operating temperature: -75°C to +135°C
• Shrink temperature: Above 105°C
• Voltage rating: 600V
• Breakdown voltage: 25kV/mm wall thickness
• Glue lined: No
• UV resistant: Yes
• Standards: UL224 VW1 File No. E366157, ASTM D2671

Ideal For

• Electrical cable insulation
• Conductor identification and colour coding
• Switchboard installations
• Commercial fit-outs
• Industrial maintenance work
• Outdoor electrical applications
• Cable repairs and terminations
