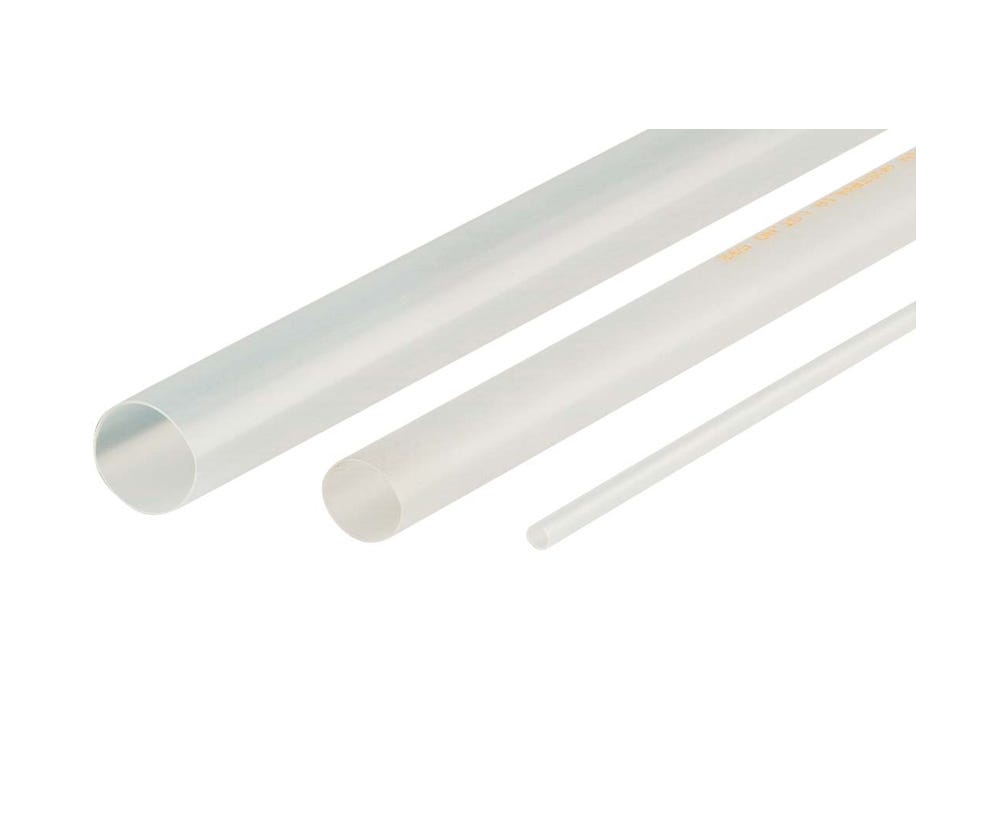

Cabac HEATSHRINK THIN WALL 2.4MM WHITE 1.2M XLP2.5WH/4FT

Description

Reliable Electrical Insulation and Protection

Designed for professional electricians and contractors, the CABAC XLP thin wall heatshrink range provides dependable insulation and mechanical protection for conductors and cable terminations. The tubing shrinks to approximately 50% of its original diameter when heated, creating a secure fit around wires and electrical connections.

Its flame-retardant construction helps improve installation safety, while resistance to common fluids, solvents, impact, and abrasion ensures long-lasting performance in demanding conditions. The white finish also allows for easy cable identification and colour coding across switchboards, control panels, and electrical systems.

Built for Australian Trade Applications

Manufactured from electron beam cross-linked polyolefin, this heatshrink tubing is engineered to perform in harsh environments. With a continuous operating temperature range from -75°C to +135°C and a voltage rating of 600V, it is suitable for a wide range of residential, commercial, and industrial projects.

The tubing complies with UL224 VW1 and ASTM D2671 standards, giving electricians confidence that installations meet recognised industry requirements. UV stabilisation further protects the material from environmental exposure, maintaining functional performance over time.

Efficient Installation for Busy Professionals

With a pre-shrink diameter of 2.4mm and a recovered diameter of 1.2mm, this thin wall tubing offers flexibility and ease of installation. The 1.2-metre length is ideal for service vehicles, maintenance teams, and contractors handling multiple jobsites.

As part of CABAC’s extensive XLP range, this heatshrink tubing enables tradespeople to complete installations efficiently while maintaining professional-quality cable management and insulation standards.

Key Specs

• Brand: CABAC
• Product code: XLP2.5WH/4FT
• Colour: White
• Material: Electron beam cross-linked polyolefin
• Wall type: Thin wall
• Length: 1.2m (4ft)
• Pre-shrink diameter: 2.4mm
• Recovered diameter: 1.2mm
• Recovered wall thickness: 0.48mm
• Operating temperature: -75°C to +135°C
• Shrink temperature: Above 105°C
• Voltage rating: 600V
• Tensile strength: 10.4 MPa
• Breakdown voltage: 25kV/mm wall thickness
• Flame retardant: Yes
• UV resistant: Yes
• Glue lined: No
• Standards: UL224 VW1 File No. E366157, ASTM D2671

Ideal For

• Residential electrical installations
• Commercial fit-outs
• Industrial maintenance projects
• Cable insulation and protection
• Switchboards and control panels
• Wire identification and colour coding
• Electrical repairs and upgrades
• Service and maintenance vehicles
