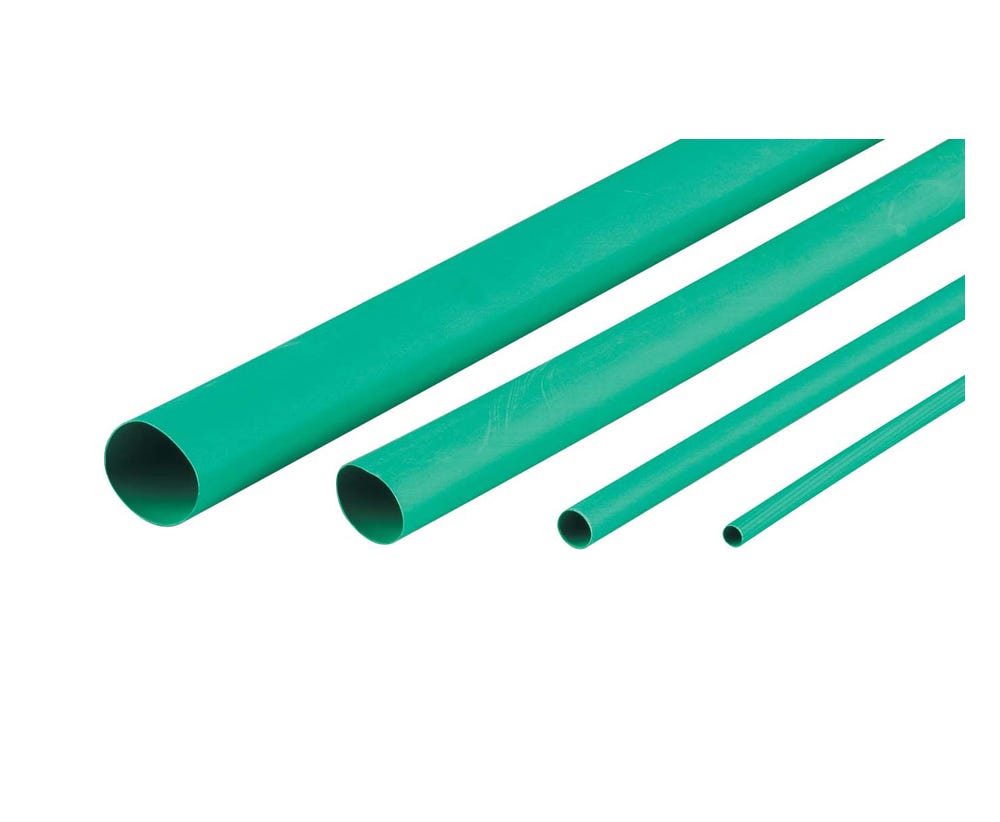

Cabac HEATSHRINK THIN WALL 2.4MM GREEN XLP2.5G x 200

Description

Durable Heat Shrink Protection for Electrical Applications

The CABAC XLP2.5G heat shrink tubing is engineered to insulate, protect, and colour-code conductors across a wide range of electrical projects. Shrinking to approximately 50% of its original diameter when heated, it creates a tight and dependable seal around wiring and components. Its flame-retardant construction helps improve safety while providing excellent mechanical protection against impacts and wear.

Suitable for both indoor and outdoor use, this green heat shrink sleeving maintains flexibility even in challenging environments. UV stabilisation helps preserve its performance over time, making it a practical choice for switchboards, cable terminations, control panels, and maintenance work.

Built for Trade Performance and Compliance

Manufactured using high-energy electron beam cross-linked polyolefin, the CABAC XLP range is designed to withstand continuous operating temperatures from -75°C to +135°C. The tubing also resists common fluids and solvents commonly encountered in commercial and industrial settings.

Certified to UL224 VW1 standards and compliant with ASTM D2671 requirements, this heat shrink tubing delivers the quality and reliability expected by licensed electricians and contractors. With a voltage rating of 600V and strong dielectric properties, it offers dependable electrical insulation for demanding applications.

Efficient Installation for Busy Job Sites

Supplied in a convenient 200-metre roll, the CABAC XLP2.5G reduces downtime by ensuring installers have ample stock available for large projects and routine maintenance. The tubing shrinks at temperatures above 105°C and is compatible with CABAC heat guns for fast and consistent installation.

Electrical contractors, facilities managers, and maintenance teams benefit from a product that combines long-term durability, straightforward application, and dependable protection, helping projects stay on schedule.

Key Specs

• Product colour: Green
• Material: Electron beam cross-linked polyolefin
• Wall type: Thin wall
• Pre-shrink diameter: 2.4mm
• After-shrink diameter: 1.2mm
• Recovered wall thickness: 0.48mm
• Roll length: 200m
• Continuous operating temperature: -75°C to +135°C
• Shrinkage temperature: Above 105°C
• Voltage rating: 600V
• Tensile strength: 10.4 MPa
• Breakdown voltage: 25kV/mm wall thickness
• Longitudinal shrinkage: Less than 5%
• UV resistant and flame retardant
• Glue lined: No
• Standards compliance: UL224 VW1 File No. E366157, ASTM D2671

Ideal For

• Licensed electricians
• Electrical contractors
• Commercial fit-outs
• Industrial installations
• Switchboard assembly
• Cable identification and colour coding
• Maintenance and repair work
• Residential electrical projects
