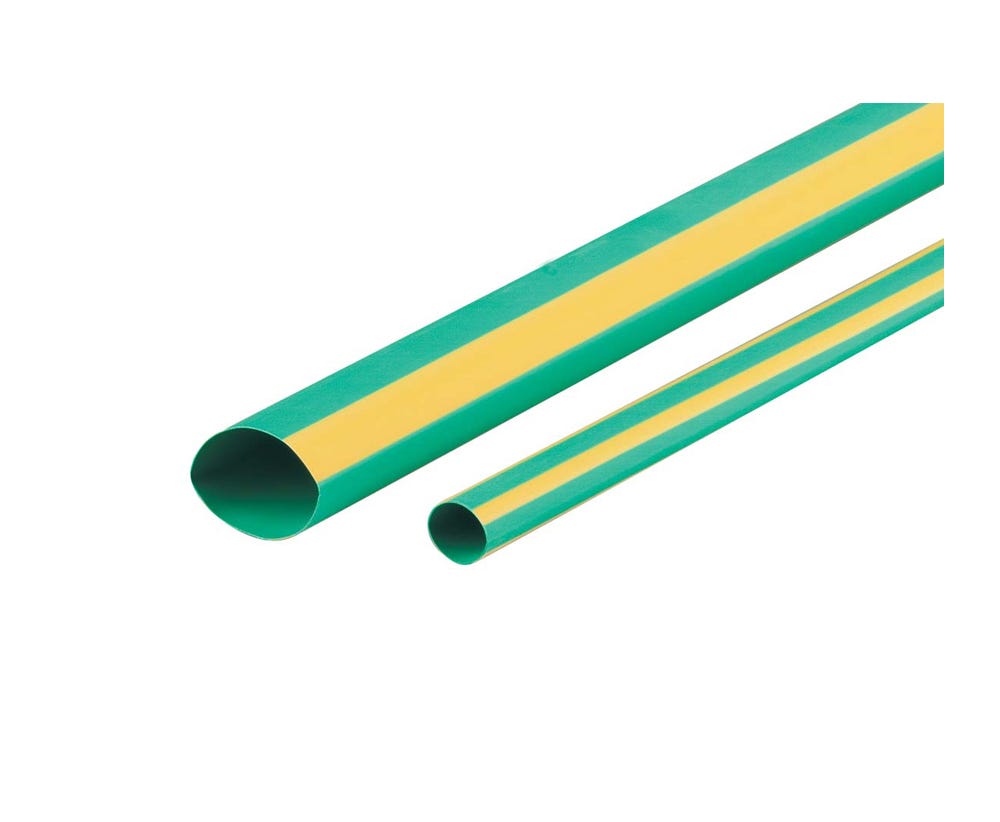

Cabac HEATSHRINK THIN WALL 19MM YELGRN 1.2M XLP20YG/4FT

CABAC Thin Wall Heatshrink for Electrical Protection

The CABAC XLP20YG/4FT thin wall heat shrink tubing is engineered to provide reliable electrical insulation and long-term mechanical protection across residential, commercial, and industrial installations. Manufactured using electron beam cross-linked polyolefin technology, this yellow and green heatshrink tubing delivers excellent flexibility while protecting conductors against impact, abrasion, moisture, and environmental exposure.

When heated above 105°C, the tubing shrinks to approximately half of its original diameter, creating a secure and professional finish around cables, terminals, and electrical connections. Its distinctive yellow and green colouring also makes it ideal for conductor identification and earthing applications.

Built for Tough Australian Conditions

Designed for demanding trade environments, CABAC thin wall heatshrink offers outstanding resistance to common fluids, solvents, UV radiation, and everyday wear. With a continuous operating temperature range from -75°C to +135°C, it performs reliably in harsh indoor and outdoor conditions.

Compliant with UL224 VW1 and ASTM D2671 standards, the tubing provides dependable insulation with a voltage rating of up to 600V and a dielectric strength of 25kV/mm wall thickness. The UV-stabilised construction helps preserve functional performance, even when exposed to prolonged sunlight.

Fast Installation for Trade Professionals

Electrical contractors and maintenance teams need products that minimise downtime and keep projects moving. The CABAC XLP range is designed for quick installation using compatible heat guns, helping tradespeople complete jobs efficiently without compromising safety or durability.

Available through iSupply Electrical’s extensive product range, this heatshrink tubing supports everything from switchboard work and cable management to maintenance and infrastructure projects. Backed by trusted CABAC quality, it offers the dependable performance professionals expect on every installation.

Key Specs

• Brand: CABAC
• Model: XLP20YG/4FT
• Wall type: Thin wall
• Colour: Yellow/Green
• Material: Electron beam cross-linked polyolefin
• Tube length: 1.2m (4ft)
• Pre-shrink diameter: 19.1mm
• After-shrink diameter: 9.5mm
• Recovered wall thickness: 0.68mm
• Operating temperature: -75°C to +135°C
• Shrink temperature: Above 105°C
• Voltage rating: 600V
• Breakdown voltage: 25kV/mm wall thickness
• Longitudinal shrinkage: Less than 5%
• Glue lined: No
• Standards: UL224 VW1 File No. E366157, ASTM D2671
• UV resistant and flame retardant

Ideal For

• Electrical cable insulation
• Earthing conductor identification
• Switchboard installations
• Commercial fit-outs
• Industrial maintenance work
• Cable repairs and protection
• Residential electrical projects
• Facilities and building maintenance teams
