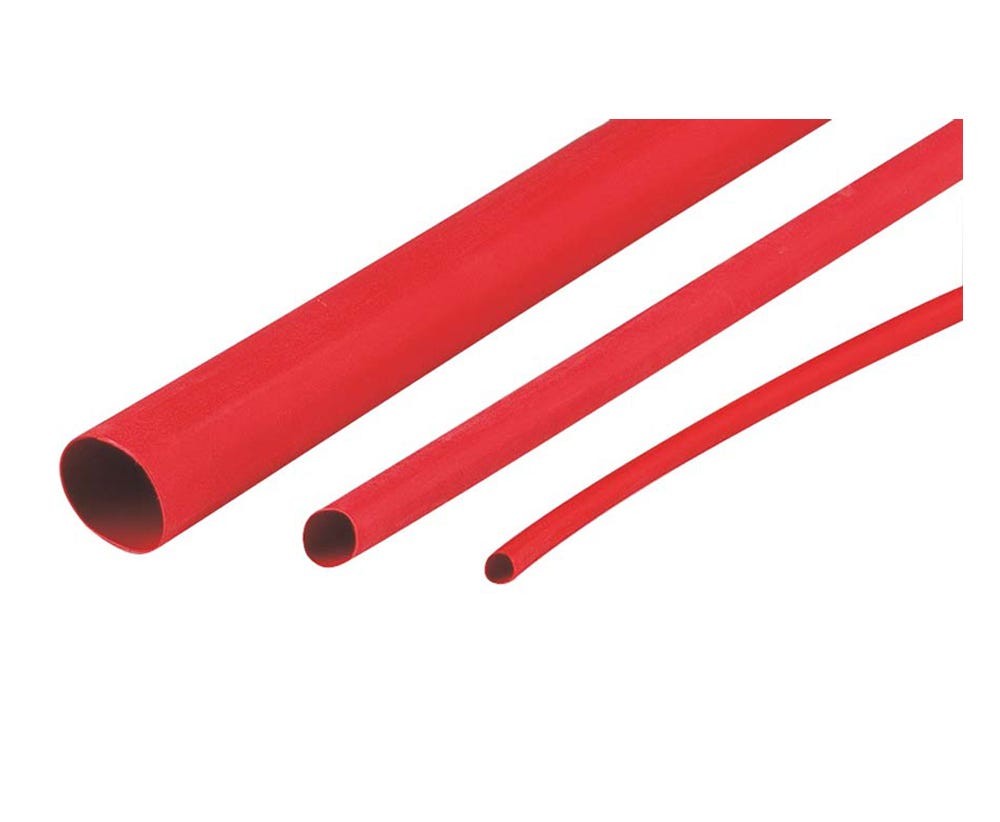

Cabac HEATSHRINK THIN WALL 19MM RED 5M BOX XLP20RD-5M

Description

High-Performance Electrical Insulation & Colour Coding

CABAC XLP thin wall heat shrink tubing delivers reliable insulation and professional colour coding for electrical conductors across residential, commercial, and industrial installations. Manufactured from electron beam cross-linked polyolefin, it shrinks to a tight, secure fit when heat is applied, helping protect cables from abrasion, impact, and everyday wear on site. Its flexible design allows fast application even in tight or complex wiring setups, making it a dependable choice for electricians working under time pressure.

Built for Reliability, Safety & Compliance on Site

Designed for demanding electrical environments, this heat shrink operates across a wide temperature range from -75°C to +135°C and provides strong electrical protection up to 600V. It is flame retardant and UL224 VW1 certified, meeting ASTM D2671 standards for compliance-critical installations. With strong resistance to common fluids, solvents, and environmental exposure, it helps maintain long-term insulation integrity. UV stabilisation also supports durability in exposed installations, helping reduce premature degradation and rework.

Trade-Ready Convenience to Keep Projects Moving

Supplied in a practical 5m box, this 19mm red heat shrink is ideal for efficient job-site use, reducing downtime from frequent restocking. It shrinks to approximately 50% of its original diameter for a tight, professional finish and is compatible with standard heat guns such as CABAC HG2232 or HG2233. With a wide size and colour range available in the XLP series, contractors can streamline inventory across multiple projects while maintaining consistent installation standards.

Key Specs

• Pre-shrink diameter: 19.1mm
• After-shrink diameter: 9.5mm
• Recovered wall thickness: 0.68mm
• Length: 5m box
• Material: Electron beam cross-linked polyolefin
• Operating temperature: -75°C to +135°C
• Voltage rating: 600V
• Standards: UL224 VW1 (File No. E366157), ASTM D2671
• Shrinkage temperature: >105°C
• Colour: Red
• Thin wall, non-glue lined
• Longitudinal shrinkage: <5%
• Tensile strength: 10.4 MPa
• Elongation at break: 400%
• Water absorption: 0.15% max
• Breakdown voltage: 25 kV/mm
• Heat shock: 250°C for 4 hours

Ideal For

• Licensed electricians and electrical contractors
• Residential wiring and rewiring projects
• Commercial fit-outs and maintenance work
• Industrial electrical installations and repairs
• Cable identification and phase colour coding
• Panel wiring and conductor insulation protection
