Cabac HEATSHRINK THIN WALL 12.7MM YELGRN 5MBOX XLP13YG-5M
$29.53 inc GST

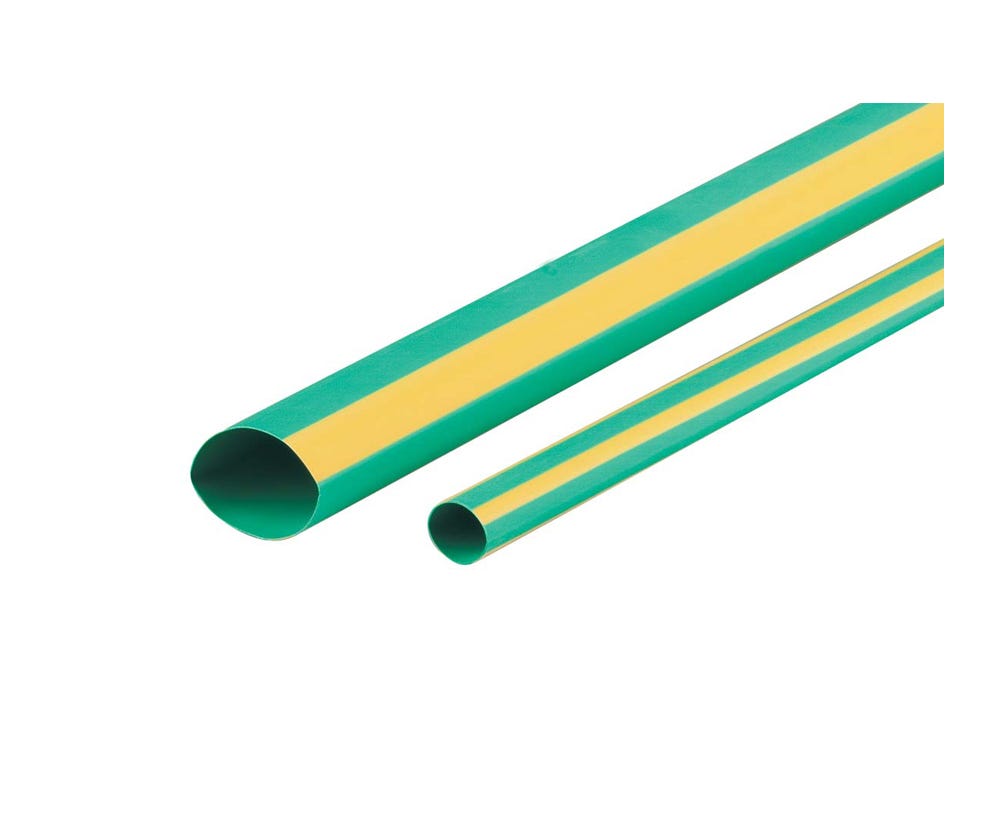

CABAC thin wall heatshrink tubing is a professional-grade insulation solution designed for electrical identification, protection, and environmental sealing. Supplied in a 5m box, the yellow/green variant is ideal for earth and safety conductor marking in compliance-driven installations. Built from cross-linked polyolefin, it delivers reliable shrink performance, durability, and long-term electrical insulation for trade applications.
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
25 in stock
Description
Electrical Insulation & Colour Coding Solution
This CABAC XLP thin wall heat shrink tubing provides reliable insulation and colour identification for electrical conductors across residential, commercial, and industrial installations. The yellow/green coding ensures clear earthing identification, helping electricians maintain compliance and safety standards on site. Designed for trade professionals, it supports fast and efficient cable management in demanding environments.
It is ideal for earthing identification in switchboards, control panels, and wiring harnesses, supporting Australian compliance requirements for safety marking. The yellow/green sheath also improves visibility in complex wiring systems, reducing installation errors and improving long-term maintenance efficiency for technicians on site.
High Performance Cross-Linked Polyolefin Protection
Manufactured from electron beam cross-linked polyolefin, this tubing delivers excellent mechanical and electrical protection. It is flame retardant, UV resistant, and engineered to withstand exposure to common fluids, solvents, and abrasion. With a wide operating temperature range from -75°C to +135°C, it performs reliably in harsh Australian conditions while maintaining long-term insulation integrity.
Electron beam cross-linking enhances dimensional stability and ensures consistent shrink performance, while UV stabilisation helps maintain appearance and function in outdoor installations over time. Its robust formulation also resists cracking and brittleness, ensuring dependable performance even in environments subject to vibration, moisture, and temperature cycling.
Easy Heat Shrink Installation for Trade Use
The tubing shrinks to approximately 50% of its original diameter when heat is applied, forming a tight protective seal around conductors. Compatible with standard heat guns such as CABAC HG2232 or HG2233, it ensures quick installation on-site. Its flexibility and durability make it ideal for high-volume electrical work where speed and reliability are essential.
Recommended for electrical contractors working in switchboards, building services, and industrial maintenance where reliable insulation and rapid installation are critical. This makes it suitable for both new installations and retrofit applications across varied electrical infrastructure projects. Provides dependable insulation in both indoor and outdoor environments. Trusted solution for professional licensed electricians Australia wide
Key specs
- Pre-shrink diameter: 12.7mm
- After-shrink diameter: 6.4mm
- Recovered wall thickness: 0.62mm
- Length: 5m box
- Voltage rating: 600V
- Operating temperature: -75°C to +135°C
- Tensile strength: 10.4 MPa
- Elongation at break: 400%
- Flame retardant, UV resistant
- Standards: UL224, ASTM D2671
Ideal for
- Licensed electricians and electrical contractors
- Switchboard and control panel wiring
- Building and industrial maintenance teams
- Cable identification and colour coding applications
- Residential, commercial, and industrial installations
