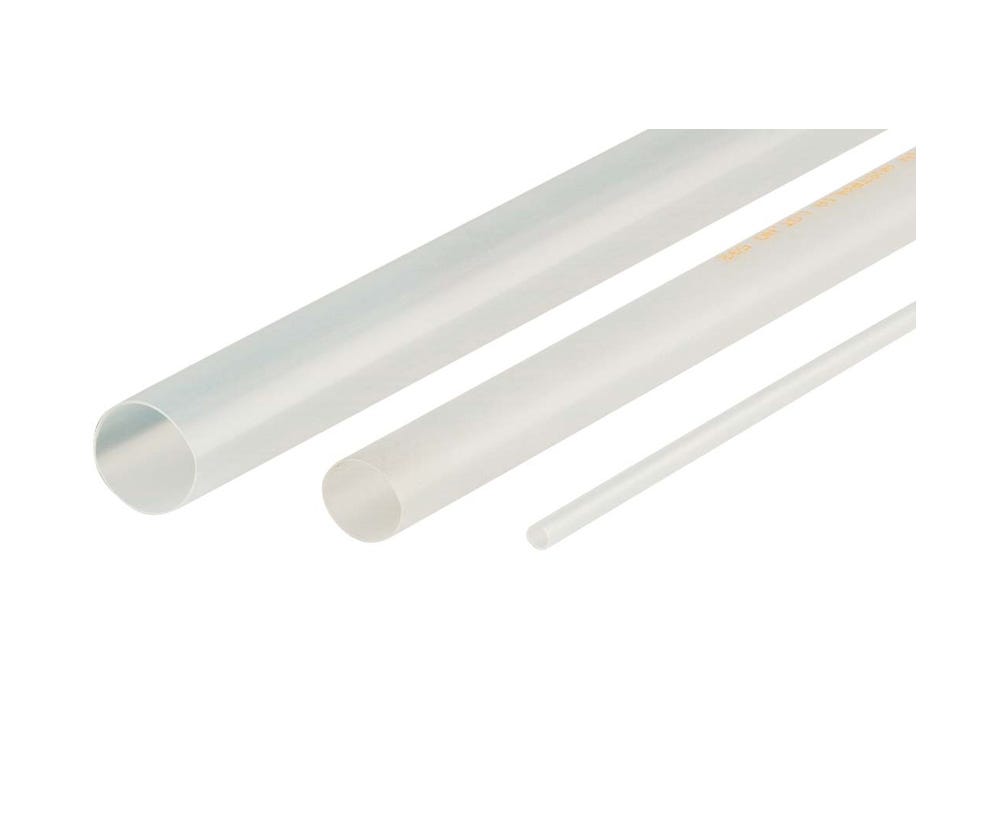

Cabac HEATSHRINK THIN WALL 12.7MM WHITE 1.2M XLP13WH/4FT

Description

Reliable Electrical Protection with CABAC Thin Wall Heat Shrink

The CABAC XLP13WH/4FT Thin Wall Heat Shrink Tubing provides dependable insulation and protection for electrical conductors across residential, commercial, and industrial applications. Designed with flame-retardant polyolefin material, this white 12.7mm heat shrink tube delivers a professional finish while helping protect cables from abrasion, impact, and environmental exposure.

Using advanced electron beam cross-linked technology, CABAC XLP heat shrink tubing offers excellent durability and flexibility. When heat is applied, the tubing shrinks to approximately 50% of its original diameter, creating a secure fit around cables, terminals, and electrical connections.

Durable Polyolefin Construction for Trade Applications

Built for demanding electrical environments, this thin wall heat shrink tubing is resistant to common fluids, solvents, and UV exposure. With a continuous operating temperature range of -75°C to +135°C and a 600V voltage rating, it provides reliable insulation performance for a wide range of electrical work.

The white finish allows easy identification and colour coding of conductors, making it suitable for maintenance, repairs, and installation projects where organised cable management is required. Its flexible design allows easy installation while maintaining strong mechanical protection.

Certified Quality for Professional Installations

CABAC XLP13WH/4FT heat shrink tubing is manufactured to meet recognised industry standards, including UL224 VW1 and ASTM D2671 compliance. With high tensile strength, excellent elongation properties, and low water absorption, it provides reliable long-term performance for electrical professionals.

Available through iSupply Electrical, this CABAC heat shrink tubing is ideal for electricians and contractors looking for quality electrical accessories backed by competitive trade pricing, fast delivery, and access to a wide range of electrical products.

Key Specs

• Brand: CABAC
• Model: XLP13WH/4FT
• Product Colour: White
• Wall Type: Thin Wall
• Material: Electron Beam Cross Linked Polyolefin
• Pre-Shrink Diameter: 12.7mm
• After-Shrink Diameter: 6.4mm
• Length: 1.2m
• Recovered Wall Thickness: 0.62mm
• Continuous Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Voltage Rating: 600V
• Breakdown Voltage: 25kV/mm wall thickness
• Tensile Strength: 10.4MPa
• Elongation at Break: 400%
• Water Absorption: 0.15% max
• Glue Lined: No
• Standards: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable cable insulation solutions
• Electrical contractors working on residential and commercial installations
• Maintenance teams performing cable repairs and upgrades
• Industrial applications requiring abrasion and fluid-resistant protection
• Cable identification and colour coding tasks
• Professional electrical installations requiring compliant heat shrink tubing
