Cabac HEATSHRINK THIN WALL 12.7MM GREEN 1.2M XLP13G/4FT

Description

Reliable Electrical Insulation and Cable Protection

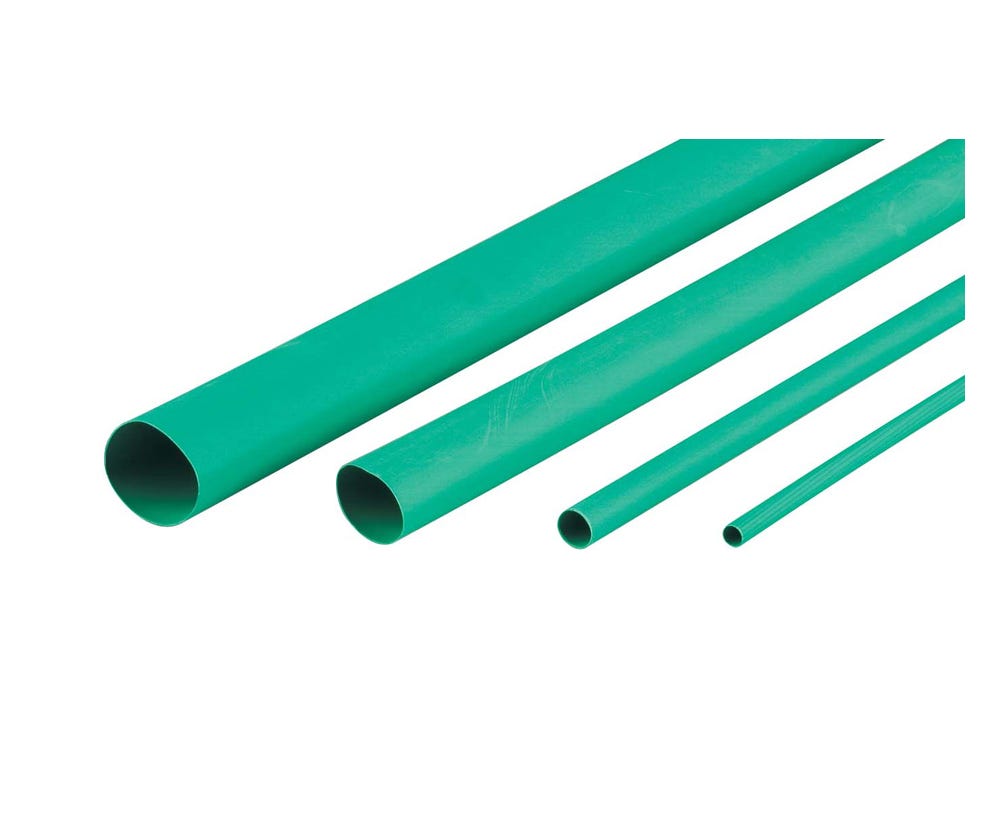

The CABAC XLP13G/4FT Thin Wall Heat Shrink Tubing provides electricians and contractors with a dependable solution for insulating, protecting, and colour coding electrical conductors. Manufactured from flame-retardant polyolefin, this 12.7mm green heat shrink tube delivers excellent electrical insulation and mechanical protection across residential, commercial, and industrial applications.

Using advanced electron beam cross-linking technology, the tubing is engineered to shrink evenly when heat is applied, reducing to approximately 50% of its original diameter. This creates a secure, tight-fitting layer around cables, terminals, and connections to help protect against environmental exposure and physical damage.

Durable Performance for Demanding Electrical Applications

Designed for long-term reliability, CABAC thin wall heat shrink tubing offers resistance against common fluids, solvents, abrasion, and UV radiation. Its flexible construction allows easy installation while maintaining strength and protection after shrinking.

With a continuous operating temperature range of -75°C to +135°C, this electrical heat shrink sleeve is suitable for a wide range of installation environments. The green colour also supports conductor identification and cable management requirements, helping tradespeople maintain organised and professional installations.

The XLP range is available in multiple colours and sizes, making it a versatile choice for electrical repairs, cable assemblies, panel building, and general maintenance applications.

Trade-Grade Quality and Compliance

CABAC XLP13G/4FT heat shrink tubing is UL certified and manufactured to meet recognised industry requirements, including UL224 VW1 and ASTM D2671 standards. Rated at 600V, it provides dependable insulation performance for electrical applications where safety and durability are essential.

For best results, use with a CABAC heat gun to achieve consistent shrinking and a professional finish. Available from iSupply Electrical, this CABAC heat shrink tube gives Australian electricians convenient access to quality electrical consumables backed by competitive trade pricing and reliable supply.

Key Specs

• Brand: CABAC
• Product Type: Thin Wall Heat Shrink Tubing
• Colour: Green
• Material: Electron Beam Cross Linked Polyolefin
• Pre-Shrink Diameter: 12.7mm
• After-Shrink Diameter: 6.4mm
• Recovered Wall Thickness: 0.62mm
• Length: 1.2m (4ft)
• Operating Temperature: -75°C to +135°C
• Shrink Temperature: >105°C
• Voltage Rating: 600V
• Tensile Strength: 10.4 MPa
• Elongation at Break: 400%
• Breakdown Voltage: 25 kV/mm wall thickness
• Water Absorption: 0.15% max
• Longitudinal Shrinkage: <5%
• Glue Lined: No
• Standards Compliance: UL224 VW1, ASTM D2671

Ideal For

• Licensed electricians requiring reliable cable insulation materials
• Electrical contractors working on residential, commercial, and industrial installations
• Cable identification and colour coding applications
• Protecting electrical connections from abrasion and environmental exposure
• Switchboard assembly and electrical panel manufacturing
• Maintenance and repair work requiring durable heat shrink protection
