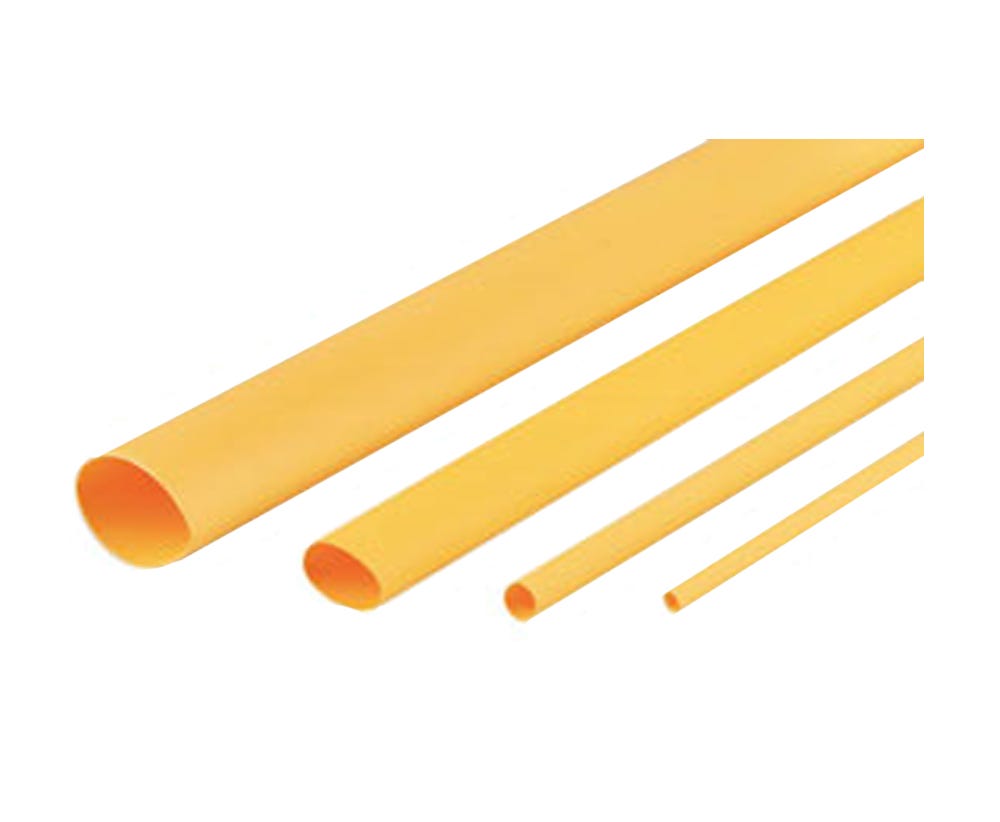

Cabac HEATSHRINK THIN WALL 1.6MM YELLOW XLP1.5Y x 200

Description

Reliable Electrical Protection for Professional Installations

Designed for demanding electrical environments, CABAC thin wall heat shrink provides excellent resistance against abrasion, impact, common fluids, solvents and UV exposure. Once heated above the recommended shrink temperature, the tubing shrinks to approximately 50% of its original diameter, creating a secure fit around cables, terminals and wire joints.

Its flame-retardant construction and 600V rating make it an ideal choice for cable insulation, wire identification and environmental protection while helping maintain safe, professional installations.

Built for Long-Term Performance

CABAC heat shrink tubing performs reliably across a continuous operating temperature range of -75°C to +135°C, making it suitable for both indoor and outdoor electrical applications. The cross-linked polyolefin material offers excellent flexibility while maintaining high tensile strength, low water absorption and outstanding dielectric performance.

Compliant with UL224 VW1 and ASTM D2671 standards, it delivers the quality and reliability professionals expect from CABAC products.

Suitable for Electrical, Industrial and Maintenance Applications

Whether you’re wiring switchboards, repairing electrical equipment, manufacturing control panels or organising cable assemblies, this yellow heat shrink tubing provides dependable insulation and easy cable identification. Its bright colour simplifies circuit identification while protecting conductors from wear and environmental exposure.

For larger installations or ongoing maintenance work, the generous 200m roll helps minimise downtime and reduces the need for frequent replacements.

Key Specifications

• Pre-shrink diameter: 1.6mm
• After-shrink diameter: 0.8mm
• Recovered wall thickness: 0.4mm
• Length: 200m roll
• Colour: Yellow
• Thin wall construction
• Electron beam cross-linked polyolefin
• Flame retardant
• Operating temperature: -75°C to +135°C
• Shrink temperature: Above 105°C
• Voltage rating: 600V
• Breakdown voltage: 25kV/mm
• UV resistant
• Resistant to abrasion, impact, solvents and common fluids
• UL224 VW1 and ASTM D2671 compliant
• Glue lined: No

Ideal For

• Licensed electricians
• Electrical contractors
• Switchboard manufacturers
• Commercial electrical installations
• Industrial maintenance
• Residential wiring projects
• Cable repairs and insulation
• Wire identification and colour coding
• Control panel assembly
• OEM electrical manufacturing
