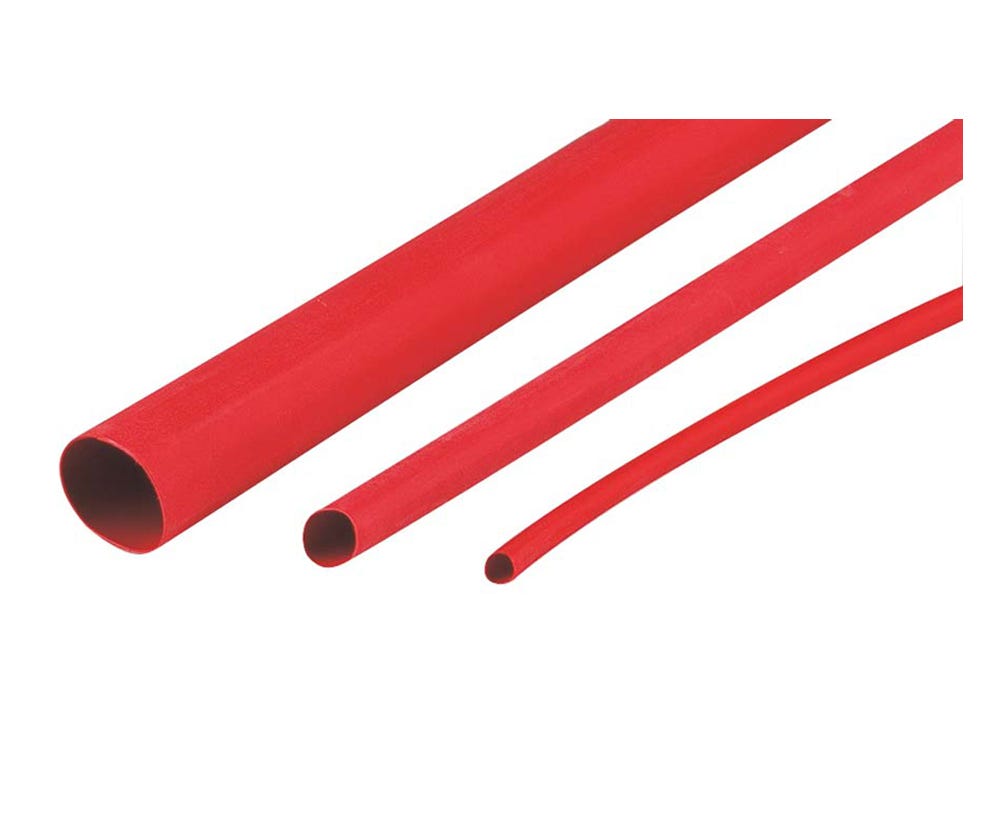

Cabac HEATSHRINK THIN WALL 1.6MM RED 10M BOX XLP1.5RD-10M

Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
Operating temperature -75 to +135 degrees Celsius
Resistant to common fluids, solvents and abrasion
UV resistant

Product Description
The CABAC XLP range of thin wall heat shrink tubing is used to insulate, protect and colour code conductors in a range of applications related to the electrical and associated industries. This general-purpose heat shrink provides electrical and mechanical protection, while also defending against environmental factors such as common fluids and/or solvents. Our red thin wall heat shrink sleeving is flexible, flame retardant, and resistant to impact and abrasion.

The XLP range of heat shrink tubing is made from polyolefin that has been cross-linked using high-energy electron beam technology. Upon the application of heat, the tubing will shrink down to approximately 50% of its pre-shrink diameter to deliver tight-fitting electrical and environmental insulation. To shrink our heat shrink tubing, we recommend the use of a CABAC heat gun (Part No. HG2232 or HG2233).

CABAC red polyolefin heat shrink tubing is UL certified and complies with a number of international standards, including ASTM D2671.

Dimensions
Pre-shrink diameter: 1.6mm
After-shrink diameter: 0.8mm
Recovered wall thickness: 0.4mm
Length: 10m box

XLP tubing is available in a wide range of colours and sizes from 1.5mm to 125mm diameter. The product datasheet includes a selection chart for your reference, see Resources.

Technical Data
Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
Continuous Operating Temp: -75 to +135 degrees Celsius
Shrinkage Temp: > 105 degrees Celsius
Longitudinal Shrinkage < 5% Tensile Strength: 10.4 MPa Breakdown Voltage: 25 kV/mm wall thickness Elongation at Break Point: 400% Water Absorption: 0.15% max Voltage Rating: 600V Heat Shock: 250 degrees for 4 hours PLEASE NOTE: The full range of XLP heatshrink is UV stabilised except clear. Non-black colour variants will fade slightly or change colour over time dependent upon the strength of the UV radiation without impacting the materials functional characteristics. Techical Specifications After-Shrink Diameter (mm): 0.4 Heatshrink Length (M): 10 Wall: Thin Recovered Wall Thickness (mm): 0.8 Product Colour: Red Pre-Shrink Diameter (mm): 1.6 Glue Lined: No
