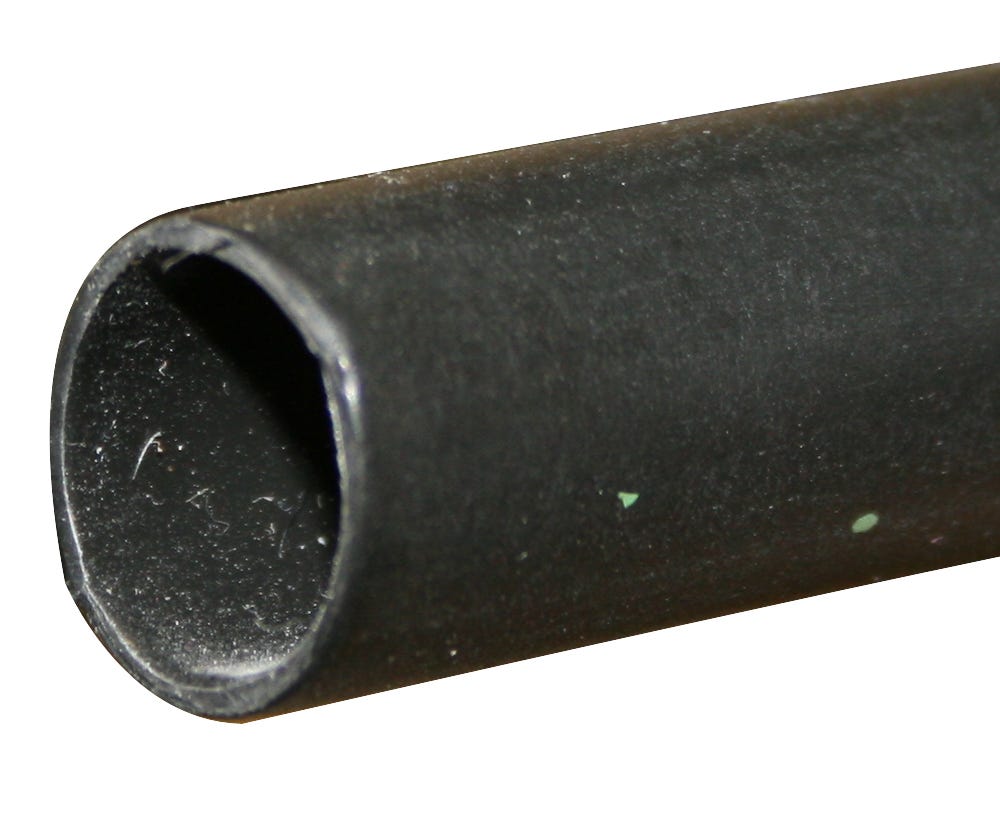

Cabac HEATSHRINK THICK WALL GLUE L 130-36 1.2M STDW130-36PA

Description

Cross-linked Polyolefin heatshrink tube used primarily for waterproof jointing and sealing cable terminations

UV resistant operating temp. -55 to +135 Deg. Celsius

Resistant to common fluids, solvents and abrasion

Product Description

Thickwall Glue Lined Heatshrink 130-36MM x 1.2M

STDW Heatshrink, has a much thicker wall than SMDW, and is used in cable joints, repairs and terminations in critical areas. The basic logic in cable repairs and jointing is that one
should replace the original thickness of insulation. The ‘recovered’ thickness is the free shrink maximum thickness, which gives a guide to the wall thickness after shrink.

Thickwall Glue Lined Heatshrink Features

? Voltage rating: 0.6/1kV (Low Voltage)

? High shrink ratio of 4:1, one piece of shrink covers a huge range

? Wall thickness is more than SMDW giving much better insulating and protection properties

? Rigidity is much greater than SMDW tubing, with a higher overall abrasion and impact strength

? Polyamide adhesive is hand applied, and sticks very well to most surfaces. There is also more adhesive in this tube than in SMDW so the overall sealing capabilities are much better.

Instructions

For waterproof applications the preparation of the cable jacket is critical to ensure good adhesion of glue. Ensure the jacket is free of grease and roughened with emery paper.

Tubing should be shrunk with a large heat gun or a soft yellow gas flame. Shrinkage should be done from the centre out, moving the heat source continually to ensure no localised overheating. The polyamide glue should extrude from both ends once the shrinkage is complete.

Note: A common cause of joint failures is not heating the heatshrink all around the joint. If you are in a trench for example, and heat only the top half of the joint, the heatshrink only shrinks on the top, and the meltable glue sealant does not melt and seal on the rear of the joint. It is essential to heat ALL AROUND the joint in particular the rear, by using a heat deflector.

Technical Data

Conformant Standards: IEC: VDE ASTM

Material: Cross-linked Polyolefin

Continuous Operating Temp: -55°C to 110°C IEC216

Shrinkage Temp: 130°C IEC216

Tensile Strength: > 12 N/mm² ASTMD638

Elongation: > 400% ASTMD638

Longitudinal Shrinkage: < 10% ASTMD2671 Dielectric Strength: > 15 KV/mm ASTMD149

Volume Resistivity: > 1 x 1012 ohm cm ASTMD257

Flammability: Not self extinguishing ASTMD867

Thermal Shock: No damage ASTMD2671-746

Technical Specifications

Product Colour: Black

Wall: Thick

Pre-Shrink Diameter (mm): 130

After-Shrink Diameter (mm): 36

Heatshrink Tube Length (M): 1.2

Recovered Wall Thickness (mm): 4.3

Glue Lined: Yes
