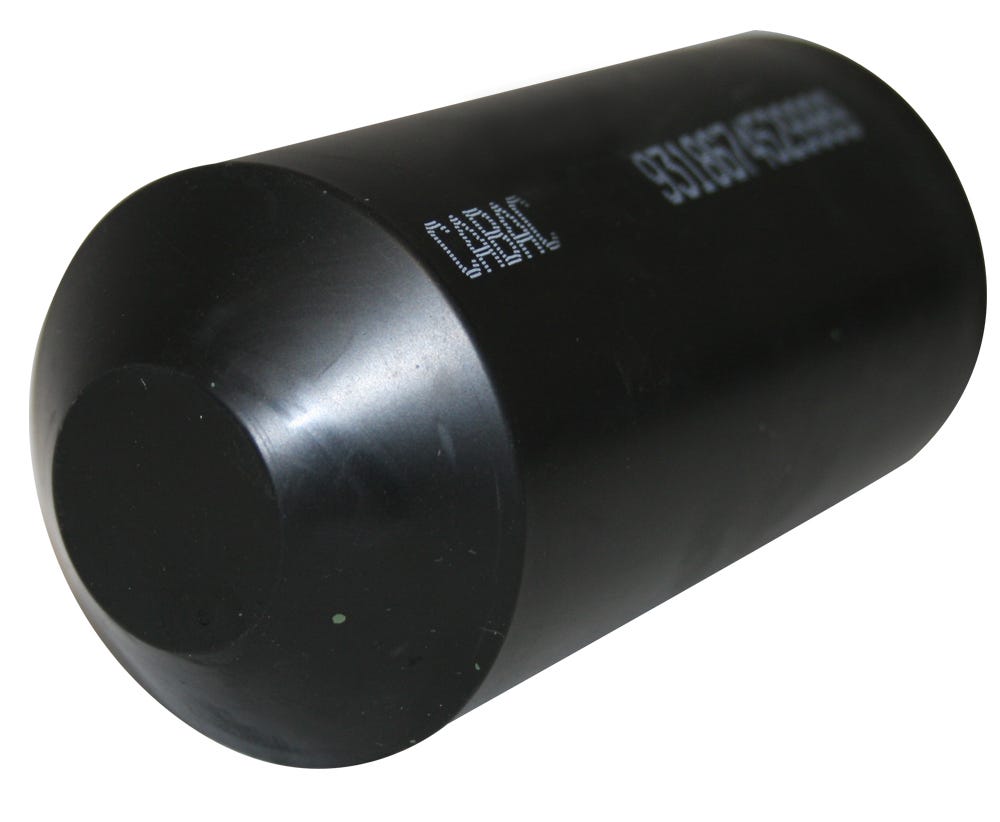

Cabac HEATSHRINK END CAP 40-15MM SRE3

Description

Seals cable ends during installation or storage. Made from cross-linked Polyolefin with hot melt glue liner which bonds cap to the cable jacket

Resistant to UV rays, aggressive soils, chemicals and corrosion

Quick reliable seal

Product Description

Heatshrink End Cap 40-15MM

Heatshrink end caps are used for sealing cable ends during installation or storage. They are made from crosslinked polyolefin and have a hot melt glue liner that bonds
the cap to the cable jacket.

Heatshrink End Cap Features

? Quick reliable seal of cable ends

? Watertight and unlimited storage life

? Highly resistant to ultraviolet rays, aggressive soils, chemicals and corrosion

Instructions

The end cap should be shrunk onto the cable end starting the shrinkage process from the closed end. Once shrink is complete glue should extrude from the edges of
the cap.

Technical Data

Conformant Standards: IEC:VDE:DIN

Material: Cross-linked polyolefin with thermoplastic sealant

Continuous Operating Temp: -35°C to +110°C

Shrinkage Temp: Starts 105°C Completed 135?

Tensile Strength: 12MPa

Elongation at Break Point: 500%

Longtitudinal Shrinkage: 10%

Breakdown Voltage: 10kV/mm wall thickness

Volume Resistivity: 1.0 x 1014 ohms cm

Water Absorption: <0.15% Flammability: Do not use in flame prone areas UV Resistance: Passed ISO 1408 Line drawing available. See Technical Data. Technical Specifications

Product Colour: Black

Pre-Shrink Diameter (mm): 40

After-Shrink Diameter (mm): 16

Glue Lined: Yes
