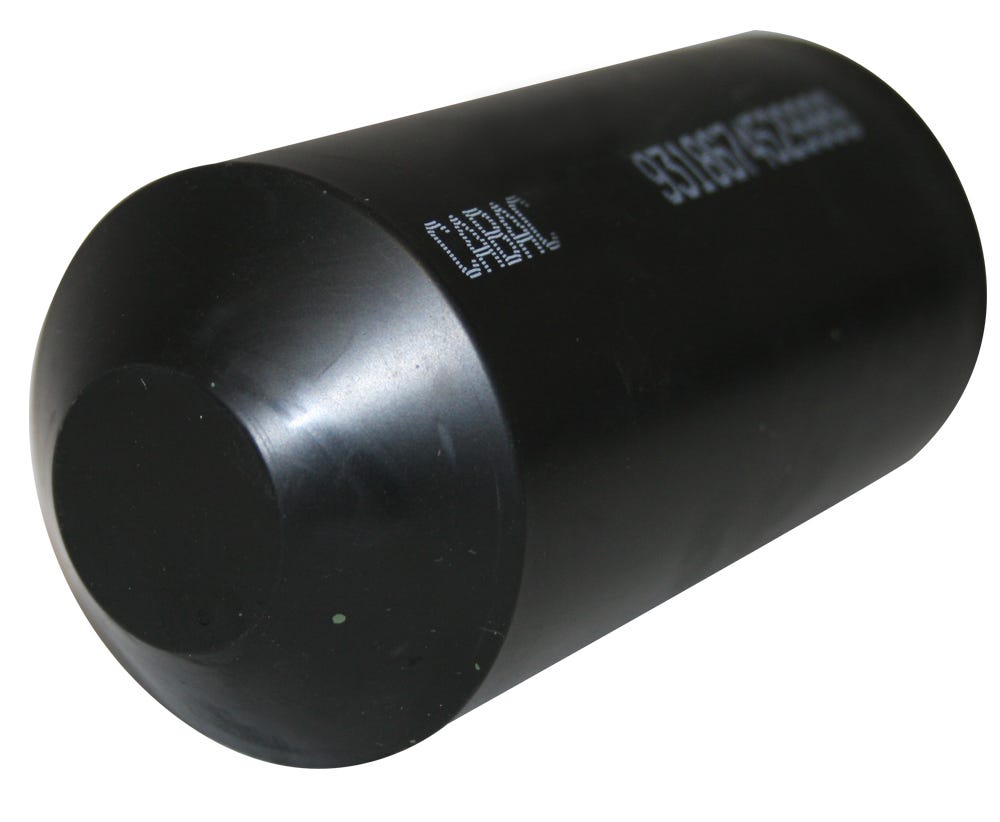

Cabac HEATSHRINK END CAP 100-52MM SRE5

Description

Cabac Heatshrink End Cap 100-52MM SRE5 for Reliable Cable End Protection

Protect exposed cable ends with the Cabac Heatshrink End Cap 100-52MM SRE5, designed to provide a secure and long-lasting seal during electrical installations, repairs, and cable storage. Manufactured from cross-linked polyolefin with a hot melt adhesive liner, this heatshrink end cap forms a strong bond with the cable jacket to prevent moisture and environmental damage.

The adhesive-lined design allows electricians and contractors to create a watertight seal quickly and efficiently, reducing the risk of corrosion, contamination, and cable deterioration over time.

Durable Heatshrink Protection for Harsh Electrical Environments

The Cabac Heatshrink End Cap 100-52MM SRE5 is engineered for demanding electrical applications where cable protection and reliability are essential. Its cross-linked polyolefin construction provides excellent resistance against ultraviolet exposure, aggressive soils, chemicals, and corrosion.

With a wide operating temperature range from -35°C to +110°C, this heatshrink end cap is suitable for various indoor and outdoor environments. Once installed correctly, the cap provides long-term protection and supports unlimited storage life, helping contractors maintain cable quality before final connection.

Fast Installation with Secure Adhesive Sealing

Designed for efficient trade use, the Cabac Heatshrink End Cap can be installed by applying heat from the closed end until the adhesive liner melts and bonds securely around the cable jacket. Once fully shrunk, adhesive extrusion around the edges confirms a complete seal.

This reliable sealing method helps reduce installation risks while providing electricians with a professional finish for cable termination and storage applications.

Key Specs

• Product Type: Heatshrink End Cap
• Model: SRE5
• Size Range: 100-52MM
• Material: Cross-linked polyolefin with thermoplastic sealant
• Continuous Operating Temperature: -35°C to +110°C
• Shrinkage Temperature: Starts at 105°C, completed at 135°C
• Tensile Strength: 12MPa
• Elongation at Break Point: 500%
• Longitudinal Shrinkage: 10%
• Breakdown Voltage: 10kV/mm wall thickness
• Volume Resistivity: 1.0 x 10¹⁴ ohms cm
• Water Absorption: <0.15%
• Standards Compliance: IEC, VDE, DIN
• UV Resistance: Passed ISO 1408

Ideal For

• Licensed electricians requiring dependable cable sealing solutions
• Electrical contractors working on commercial and industrial installations
• Cable protection during transport and long-term storage
• Outdoor cable installations exposed to UV and weather conditions
• Preventing moisture ingress and corrosion at cable ends
• Maintenance teams requiring quick and reliable cable repairs
