Cabac GLOVE 4 WAY 57-28MM/20-7MM KEV430

Description

Reliable Waterproof Cable Termination Protection

The Cabac KEV430 Heatshrink Glove provides a fast and effective solution for sealing cable terminations where moisture protection and long-term reliability are essential. Designed for professional electrical applications, this 4-way heatshrink boot seals the conductor insulation to the outer cable jacket, creating a secure barrier against water ingress and environmental damage.

With a hot melt adhesive liner, the glove melts during the shrinking process to form a strong bond between the cable and the heatshrink material. This helps deliver a durable termination seal that supports reliable performance in residential, commercial, and industrial electrical installations.

Durable Heatshrink Material for Harsh Environments

Manufactured from modified cross-linked polyolefin, the Cabac KEV430 Heatshrink Glove offers excellent mechanical strength and environmental resistance. It provides high resistance against tearing, strong tensile performance, and protection against decay, chemicals, and corrosion.

Designed for demanding electrical applications, this heatshrink boot operates across a wide temperature range from -40°C to +110°C. Its high insulation performance and resistance properties make it suitable for protecting cable connections where durability and safety are critical.

Simple Installation for Electrical Professionals

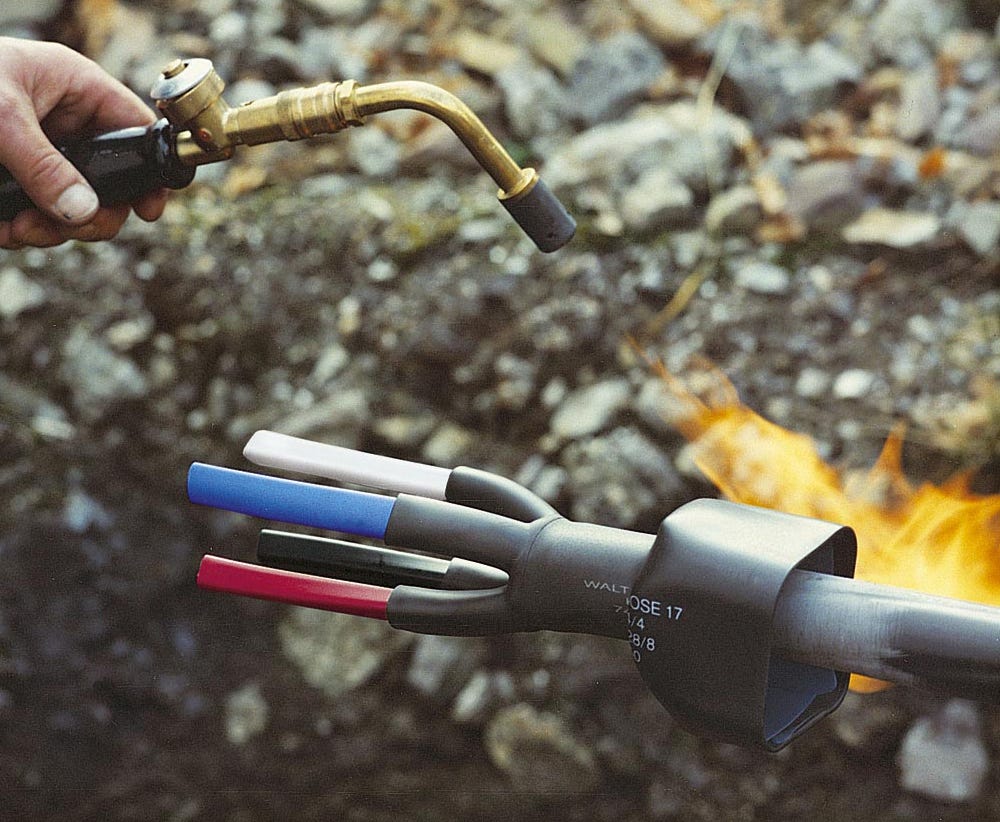

The Cabac KEV430 is designed for efficient installation using a heat gun or soft yellow gas flame. Simply ensure the cable insulation and conductors are clean, grease-free, and properly prepared before shrinking. Heating from the centre outward allows the adhesive liner to flow and create a secure seal.

For electricians and contractors, this reliable cable termination accessory helps reduce installation time while delivering professional-grade protection for electrical connections.

Key Specs

• Product Type: Heatshrink Boot/Glove
• Model: KEV430
• Configuration: 4 Way
• Size Range: 57-28MM / 20-7MM
• Material: Modified cross-linked polyolefin
• Continuous Operating Temperature: -40°C to +110°C
• Shrink Temperature: Starts at 105°C, completed at 125°C
• Tensile Strength: 18 MPa
• Elongation at Break Point: 450%
• Longitudinal Shrinkage: 10%
• Breakdown Voltage: 16 kV/mm wall thickness
• Volume Resistivity: 1.0 x 10¹⁴ ohm cm
• Water Absorption: 0.15%
• Standards: DIN, VDE, IEC conformant
• UV Resistance: Passed ISO 1408

Ideal For

• Licensed electricians completing cable termination work
• Commercial and industrial electrical installations
• Waterproof cable sealing applications
• Maintenance teams requiring reliable cable protection
• Electrical contractors working on projects requiring durable insulation solutions
• Applications requiring resistance against moisture, chemicals, and corrosion
