Cabac GLOVE 4 WAY 41-16.5/13-4MM KEV420

Description

Reliable Waterproof Cable Termination Protection

The Cabac KEV Heatshrink Glove 4 Way 41-16.5/13-4MM KEV420 provides a reliable solution for sealing and protecting multi-core cable terminations in electrical installations. Designed to create a waterproof barrier between insulated conductors and the outer cable jacket, this heatshrink glove helps prevent moisture ingress and protects cable connections from environmental damage.

Featuring a hot melt adhesive liner, the glove melts during the shrinking process to form a secure bond between the cable and the heatshrink material. This creates a durable seal that improves termination protection and helps maintain cable performance in demanding applications.

Ideal for professional electricians and contractors, the KEV420 heatshrink glove allows for quick and simple installation using standard heat application tools, helping reduce installation time while achieving a clean and secure finish.

Durable Construction for Harsh Electrical Environments

Manufactured from modified cross-linked polyolefin, the Cabac KEV heatshrink glove delivers excellent mechanical strength and long-term durability. Its high tearing resistance and tensile strength help protect cable terminations against physical stress during installation and operation.

The material is designed to withstand challenging conditions with resistance against decay, chemicals, and corrosion. With a continuous operating temperature range of -40°C to +110°C, it provides dependable performance across various electrical environments.

The KEV420 also features strong insulation properties with a breakdown voltage rating of 16 kV/mm wall thickness, making it suitable for applications where reliable electrical protection and environmental sealing are required.

Trade-Friendly Installation for Professional Results

The Cabac KEV420 heatshrink glove is designed for efficient installation by electrical professionals working across residential, commercial, and industrial projects. Before installation, cable insulation surfaces should be clean, dry, and free from grease to ensure maximum adhesive bonding.

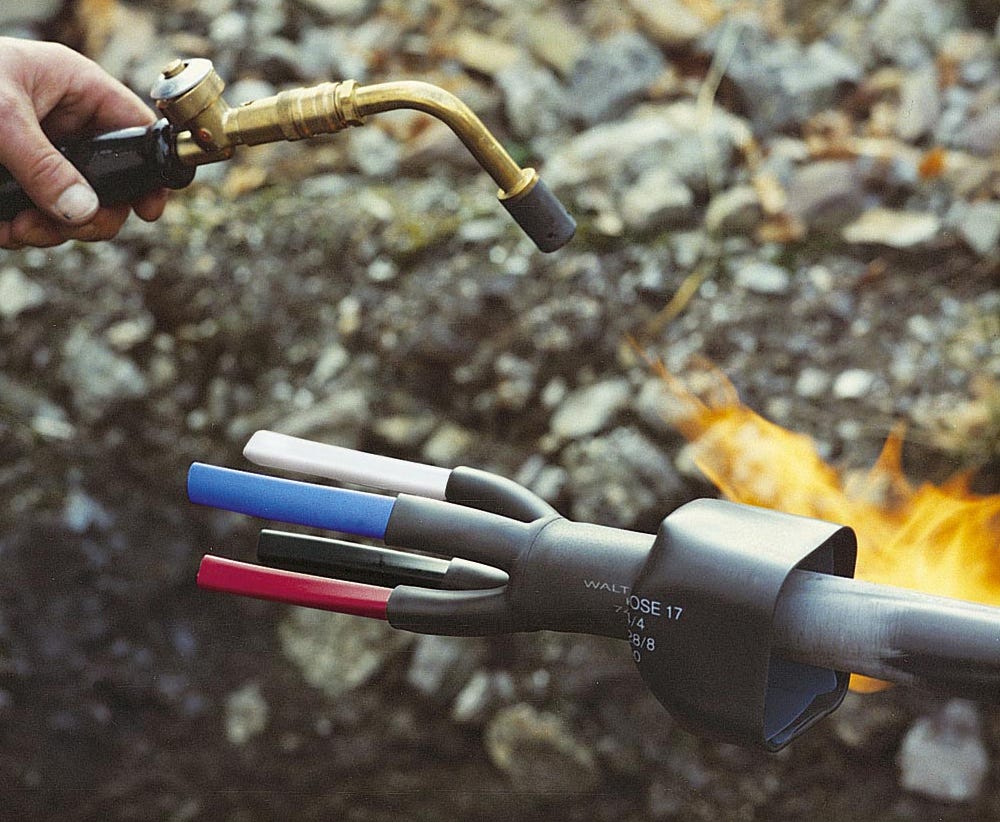

The glove is applied by shrinking from the centre outward using a heat gun or soft yellow gas flame until adhesive extrusion occurs. This creates a secure seal around the cable termination while avoiding local overheating during installation.

Key Specs

• Product Type: 4 Way Heatshrink Boot/Glove
• Model: KEV420
• Dimensions: 41-16.5MM / 13-4MM
• Material: Modified cross-linked polyolefin
• Continuous Operating Temperature: -40°C to +110°C
• Shrinkage Temperature: Starts 105°C, completed 125°C
• Tensile Strength: 18 MPa
• Elongation at Break Point: 450%
• Longitudinal Shrinkage: 10%
• Breakdown Voltage: 16 kV/mm wall thickness
• Volume Resistivity: 1.0 x 10¹⁴ ohm cm
• Water Absorption: 0.15%
• UV Resistance: Passed ISO 1408
• Standards Compliance: DIN, VDE, IEC

Ideal For

• Licensed electricians requiring waterproof cable termination solutions
• Electrical contractors working on commercial and industrial installations
• Cable jointing and termination applications requiring environmental protection
• Maintenance professionals repairing or upgrading electrical systems
• Projects where durable insulation sealing and corrosion resistance are required
