Cabac GLOVE 4 WAY 125-52/52-15MM KEV460

Description

Reliable Waterproof Cable Termination Protection for Electrical Installations

The Cabac KEV460 Heatshrink Boot/Glove 4 Way is designed to provide a secure and waterproof seal for cable terminations by sealing insulated conductors directly to the cable jacket. This professional-grade heatshrink glove is ideal for electricians requiring dependable protection against moisture, environmental exposure, and mechanical stress in electrical installations.

Featuring a hot melt adhesive liner, the KEV460 creates a strong bond when heated, ensuring the glove conforms tightly around the cable termination. The adhesive melts during the shrinking process, filling gaps and improving the overall sealing performance for long-term reliability.

With a 125-52MM glove size and 52-15MM conductor range, this Cabac heatshrink accessory provides a practical solution for protecting cable ends in a wide range of electrical applications.

Durable Construction for Harsh Electrical Environments

Manufactured from modified cross-linked polyolefin, the KEV460 Heatshrink Boot/Glove offers excellent durability and resistance against demanding site conditions. It delivers high tearing resistance and tensile strength, helping maintain protection even when exposed to physical stress during installation or operation.

The heatshrink glove is resistant to decay, chemicals, and corrosion, making it suitable for environments where cable terminations require additional protection. Its electrical insulation properties help improve termination durability while maintaining reliable performance.

The KEV460 operates across a wide temperature range from -40°C to +110°C and provides strong dielectric performance with a breakdown voltage of 16 kV/mm wall thickness.

Trade-Ready Heatshrink Solution for Professional Installers

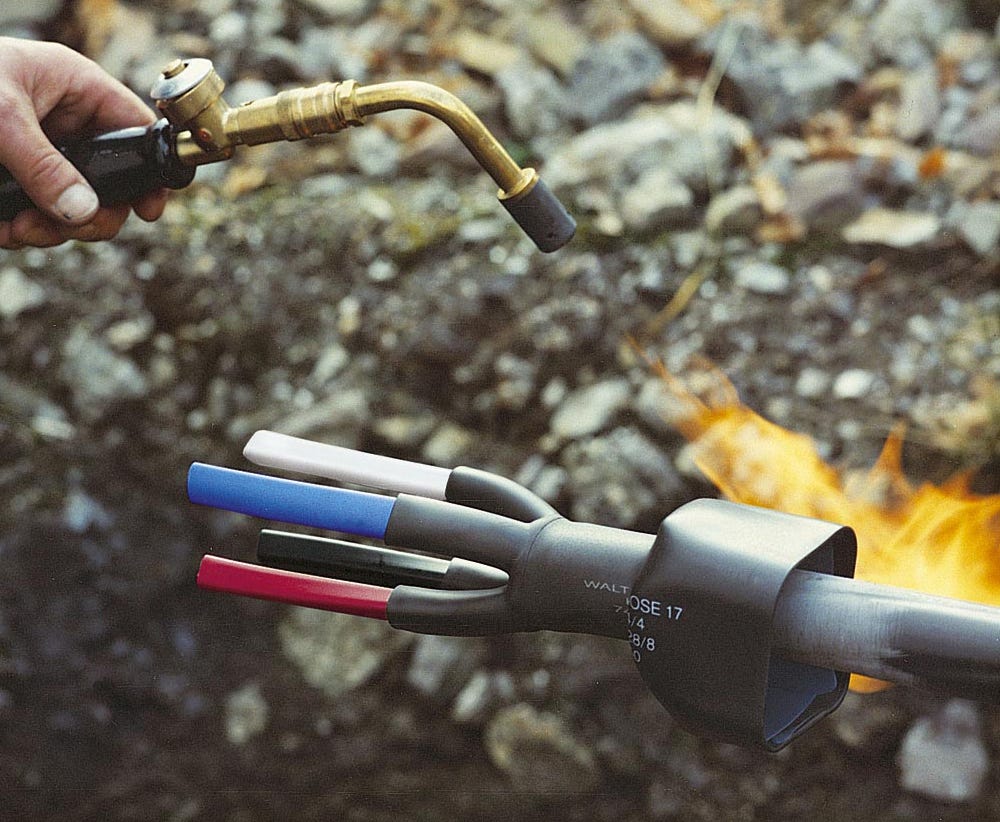

Designed for fast and efficient installation, the Cabac KEV460 requires only basic preparation and a heat source such as a heat gun or soft yellow gas flame. When correctly installed, adhesive extrusion indicates a secure bond has been achieved.

For best results, cable insulation surfaces should be clean, grease-free, and lightly roughened before shrinking to maximise adhesive bonding. The simple installation process makes it a practical choice for electrical contractors completing cable termination work where reliability and efficiency are essential.

Key Specs

• Product Type: Heatshrink Boot/Glove 4 Way
• Model: KEV460
• Size: 125-52MM / 52-15MM
• Material: Modified cross-linked polyolefin
• Continuous Operating Temperature: -40°C to +110°C
• Shrinkage Temperature: Starts 105°C, completed 125°C
• Tensile Strength: 18 MPa
• Elongation at Break Point: 450%
• Longitudinal Shrinkage: 10%
• Breakdown Voltage: 16 kV/mm wall thickness
• Volume Resistivity: 1.0 x 10¹⁴ ohm cm
• Water Absorption: 0.15%
• Standards: DIN, VDE, IEC compliant
• UV Resistance: Passed ISO 1408

Ideal For

• Licensed electricians performing cable termination work
• Electrical contractors requiring waterproof cable sealing solutions
• Commercial and industrial electrical installations
• Cable protection in outdoor and harsh environments
• Maintenance teams repairing or upgrading electrical systems
• Applications requiring protection from moisture, chemicals, and corrosion
