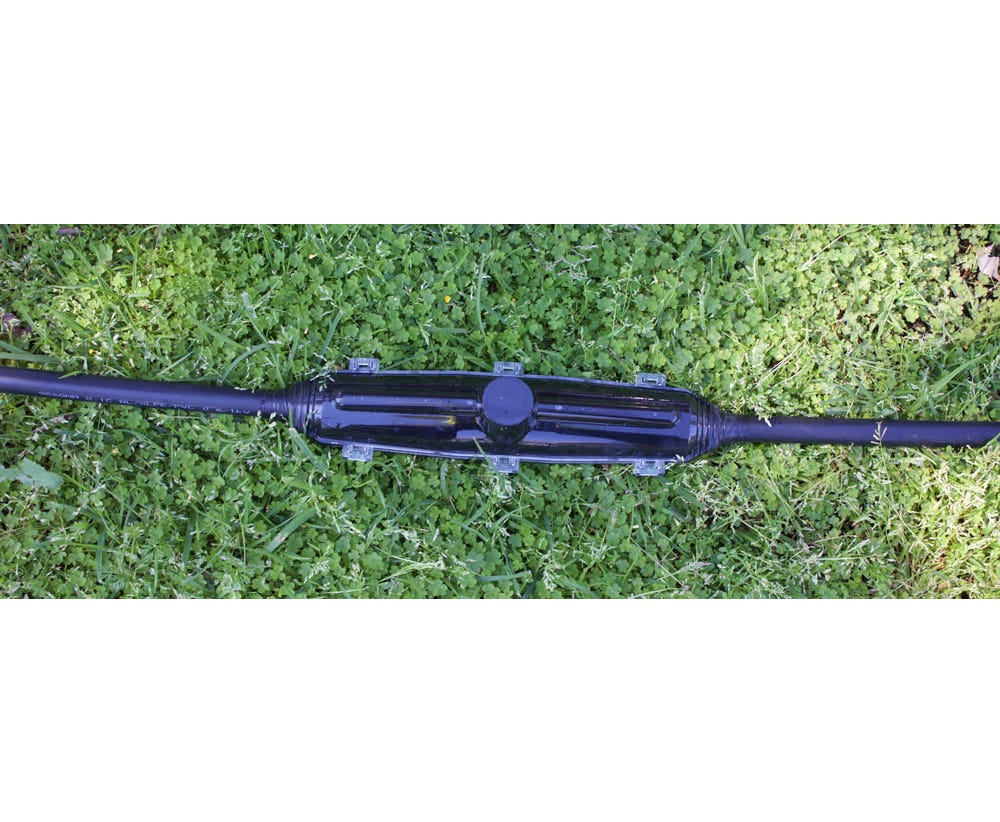

Cabac CAST RESIN JOINT 21-36MM OD GTA4

Description

Reliable Waterproof Protection for Cable Installations

Designed for demanding electrical environments, the CABAC GTA4 cast resin joint features a compact watertight construction that protects cable connections from moisture, dust, and external elements. It is suitable for direct burial applications, cable trays, rail installations, and water-submerged environments where long-term cable protection is required.

The specialised unfilled polyurethane cast resin provides excellent adhesion to different cable materials while maintaining flexible properties. Unlike rigid epoxy resins that may crack under mechanical stress, the elastic resin composition helps absorb movement caused by thermal expansion and contraction.

Easy Installation with High Electrical Insulation Performance

The CABAC Cast Resin Joint GTA4 simplifies cable jointing with features designed to support efficient installation. The transparent joint mould allows installers to visually inspect resin flow before and during pouring, helping achieve a complete and void-free fill.

Pre-shaped cut-offs and snap-lock sealing features help secure the mould around the cable, reducing installation time while maintaining a reliable seal. Once fully cured, the resin delivers excellent electrical insulation performance for safe and dependable cable operation.

Trade-Ready Cable Joint Solution for Professional Applications

Built for electricians, contractors, and maintenance teams, the CABAC GTA4 meets VDE standards and provides a dependable solution for low-voltage cable joining and repair applications. Its extended storage capability makes it suitable for keeping as part of a professional electrical inventory.

Key Specs

• Model: GTA4
• Cable diameter range: 21-36mm outer diameter
• Product type: Cast resin straight-through cable joint
• Application: Single and multi-core telephone, signal, and power cables
• Voltage rating: Up to 3.3kV
• Resin type: Unfilled polyurethane cast resin
• Protection: Watertight cable joint design
• Standards compliance: VDE compliant
• Storage life: Up to 3 years
• Maximum storage temperature: 30°C
• Armoured: No

Ideal For

• Licensed electricians completing cable repairs and extensions
• Electrical contractors working on commercial and industrial projects
• Underground cable installations requiring moisture protection
• Telecommunications and signal cable connections
• Low-voltage power cable jointing applications
• Maintenance teams requiring reliable cable repair components
