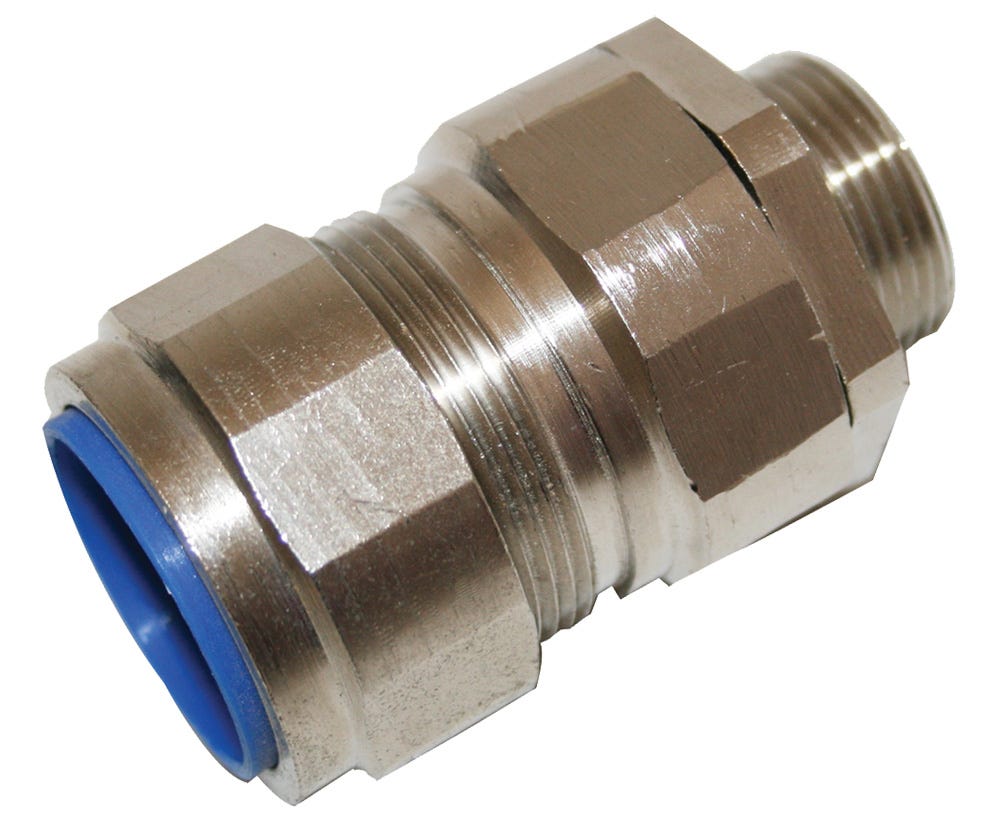

Cabac SWA GLAND CABLE 20.3-27.4 CW25

Description

Product Description

The CABAC range of armoured metal glands are a weatherproof solution when working with steel wire armoured cable.?
?The brass body is protected by anti-corrosive nickel plating that prevents deterioration. A neoprene rubber seal to the cable outer jacket excludes dust and water with a protection rating of IP66.?
?Each gland can accommodate a generous cable range to simplify product selection. Suitable for PVC and XLPE insulated armoured cables?

?To install, simply follow normal gland installation practices.?
Our SWA glands feature a wedge seal which deflects inwards. This unique feature makes our product easier to work with than conventional glands and saves the installer valuable time.?
?
Lock nut sold separately.

Dimensions

Mounting Thread Dia. (C): 25mm?
Thread Length (D): 15mm?
Max. Under Armour Cable Range (A): 19.9mm?
Min. Cable Range (B): 20.3mm?
Max. Cable Range (B): 27.4mm?
Armour Wire Dia.: 1.25-1.6mm?
Across Corners: 39.9mm?
?Lock nut: LNM25?
Shroud: SH3?

?Tip: to ensure you choose the correct gland, it is essential to make sure you have determined the over and under armour dimensions of your cable- this data can be found in cable manufacturers technical books or by measuring the cable.?

?Available in a range of sizes, refer to the product data sheet for a handy SWA gland selection chart.?

Technical Data

Body: Brass?
Finish: Nickel plated?
Seal: Neoprene rubber?
Conformant Standard: BS6121: Part 1:1989?
IP Rating: IP66
