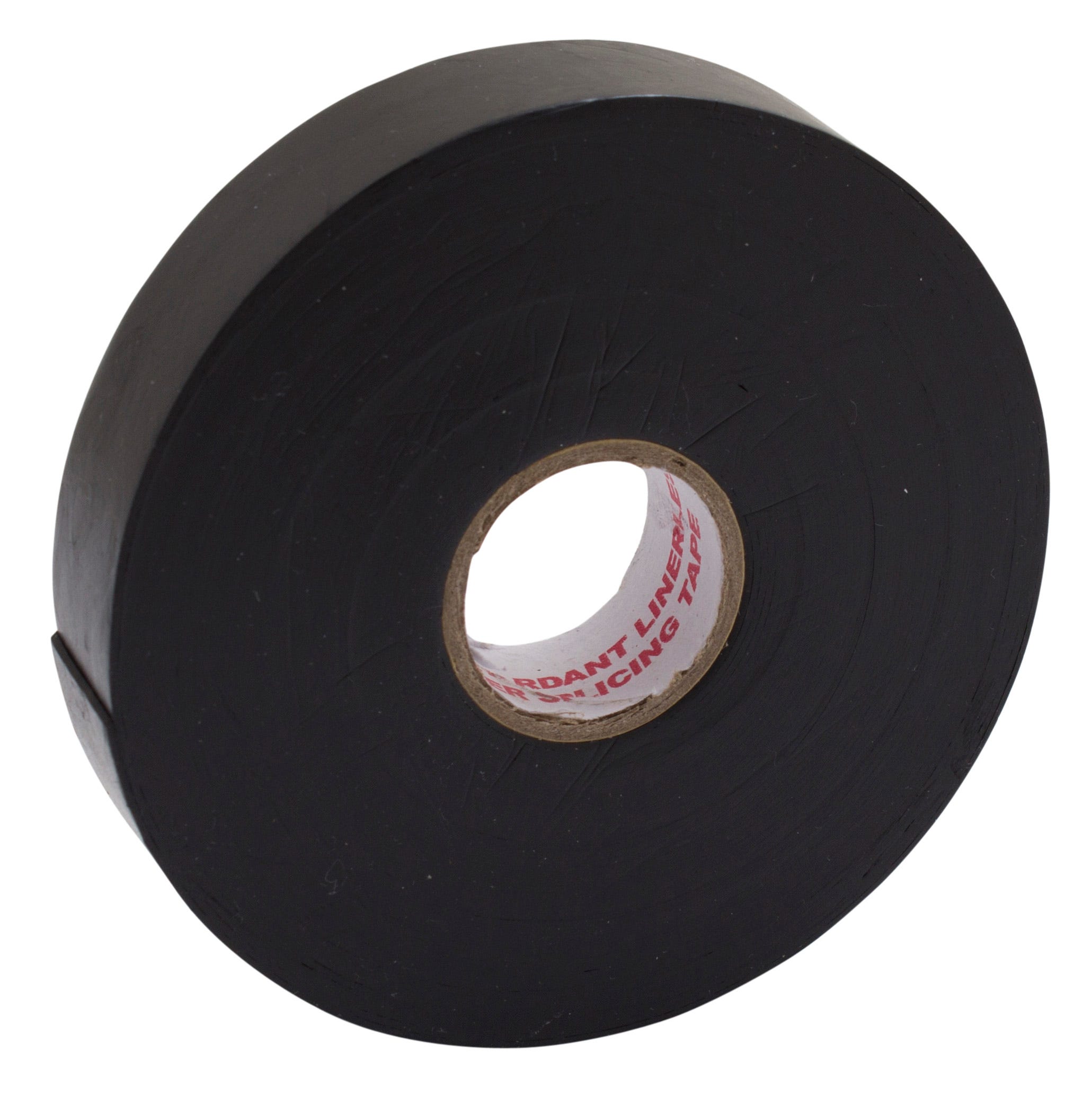

Powerjoint POWERJOINT RT241 RUBBER SPLICING 25X9M T030019RT25

Description

31 mil (0.76mm) EPR, self-bonding, high voltage tape for insulating and jacketing splices through 69kV

Linerless – quicker application than a tape with liner

Flame retardant, high thermal conductivity

Excellent ozone and checmical resistance

Product Description

RT241 Features

– Linerless, self-bonding primary insulating tape rated up to 69kV

– High thermal conductivity

– Flame retardant

– Excellent physical and electrical properties

– Designed to insulate splices and terminate cables whose overload temperatures can reach 130 deg C

– Wide range of temperature

– Weatherproofing

Applications

– Primary insulation for splicing all types of solid dielectric insulated cables up to 69kV

– Up main insulation 35kV solid medium cable stress cone when making application

– Intermediate joint and terminal protection

– Moisture seal for electrical connection

– Bus insulation

– Cable end sealing

– Wire for electric motor

Technical Data

Dimensions: 25mm x 0.76mm x 9m

Technical Specifications

Armoured: No
