Cabac CCON 50-120MM2RUN 50MM2TAP CAEC50

Description

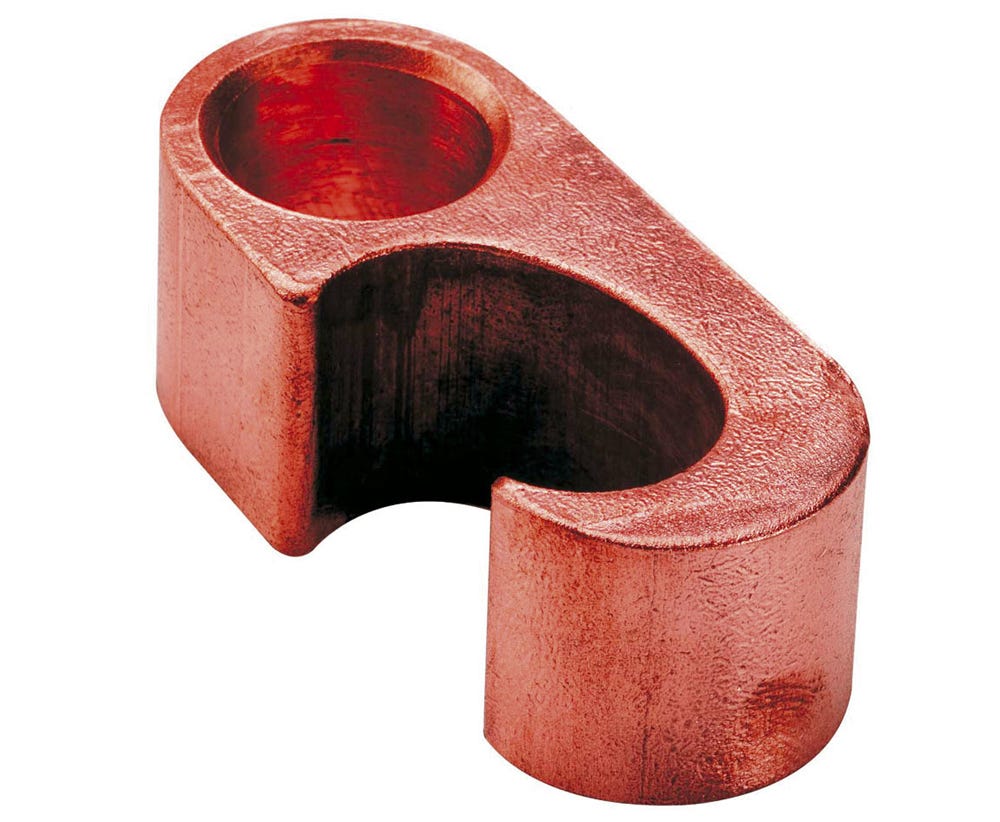

Heavy-Duty Copper C-Connector for Earthing

The Cabac CAEC50 C-Connector is a heavy-duty solution for tapping copper conductors within buried earthing grids and earthing networks. Designed for applications requiring reliable, corrosion-resistant and high-current connections, it accommodates a 50–120mm² run conductor with a 50mm² tap.

Manufactured from 99.9%+ high-conductivity copper, the connector provides a robust conductive path for earthing installations. Its C-shaped construction is pre-loaded with jointing compound, helping protect the connection against corrosion and supporting long-term performance when installed underground.

The CAEC50 can also be used for connections to earth rods measuring approximately 13–15mm in diameter, making it suitable for a range of grounding and earthing configurations.

Built for Buried Earthing Applications

This Cabac C-Connector is designed specifically for direct-burial applications where the completed joint needs to withstand underground conditions. The corrosion-resistant construction and supplied jointing compound help provide a durable connection within buried copper earthing systems.

Once correctly crimped, the resulting joint is tamper-proof and suitable for permanent earthing installations. The connector is dimensionally identical to commonly accepted C-connector dimensions in the Australian market, supporting compatibility with established installation practices.

Simple, High-Strength Crimp Connection

The CAEC50 is installed using an appropriate crimping die and a standard 13-tonne crimping tool. Its C-connector profile is designed for secure mechanical and electrical joining of copper conductors, providing a practical method for creating tap-off connections without conventional bolted hardware.

Key Specs

• Brand: Cabac
• Model: CAEC50
• Type: Copper C-Connector, Tap-Off Style
• Run conductor: 50–120mm²
• Tap conductor: 50mm²
• Earth rod compatibility: 13–15mm diameter
• Material: 99.9%+ high-conductivity copper
• Jointing compound: Pre-loaded
• Installation: Crimp connection
• Recommended tool: Standard 13-tonne crimping tool
• Application: Buried copper earthing grids and earthing networks
• Installation suitability: Direct burial
• Connection characteristics: Tamper-proof and corrosion resistant

Ideal For

• Buried copper earthing grids
• Electrical earthing networks
• Earth rod connections
• Tap-off connections from copper conductors
• Commercial and industrial grounding installations
• Electrical contractors requiring high-current earthing connections
• Projects requiring corrosion-resistant direct-burial connections
