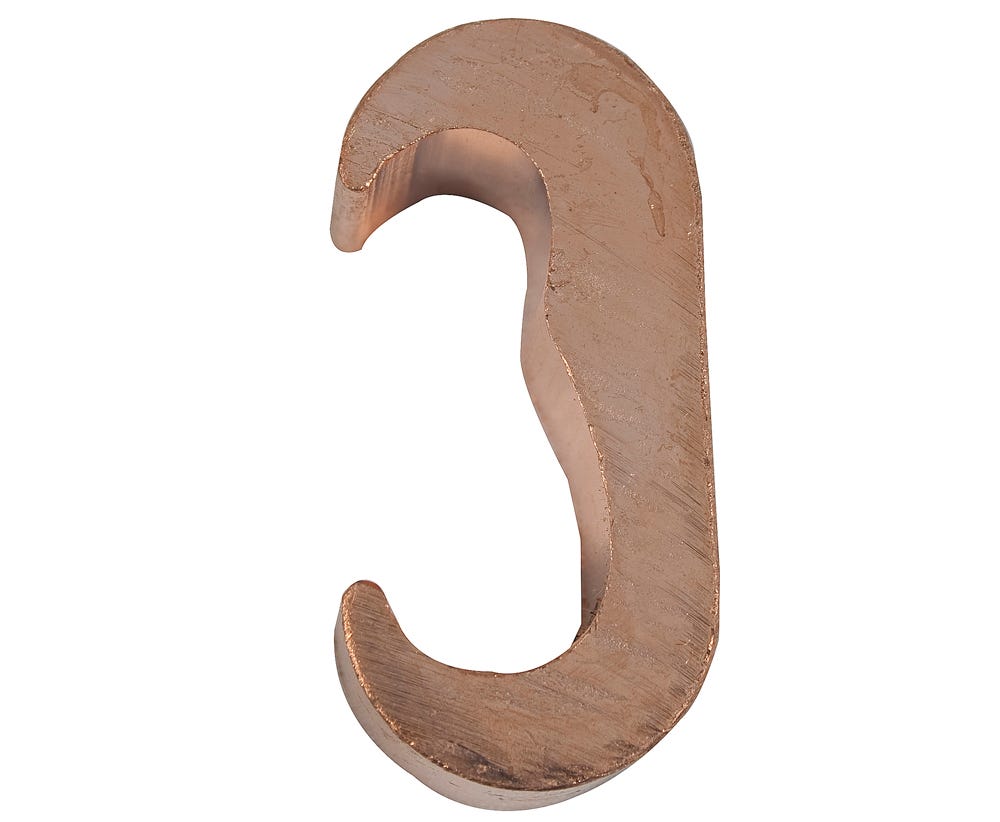

Cabac C CONNECTOR WIDE JAW 10-35MM CACD35
$27.10 inc GST
The Cabac CACD35 provides a robust, high-conductivity connection solution for copper conductor joining, tapping and earthing applications. With its wide-jaw design, corrosion-resistant copper construction and suitability for direct burial, it is a practical choice for professional electrical installations.
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
50 in stock
Description
Reliable Copper Conductor Connections
The CACD35 is designed to create secure connections between copper conductors, making it suitable for joining and tapping applications. Its C-shaped configuration allows conductors to be positioned within the connector before compression using compatible tooling. The connector is particularly suited to smaller earthing connections involving 16mm, 25mm and 35mm conductors, helping electricians establish dependable connections within distribution earth systems.
Designed for Earthing Applications
For earthing installations, connection integrity is essential. The Cabac CACD35 is designed for use in earthing networks and has been tested to IEEE 837 requirements. Its copper construction provides high conductivity, while its corrosion-resistant properties support use in installations where the connection may be exposed to demanding environmental conditions. The connector is also suitable for direct burial, making it useful for earthing and grounding installations where connections are installed below ground.
Trade-Ready Electrical Connector
The CACD35 has a conductive material specification of copper with approximately 99.95% purity, along with a tensile strength of 200 MPa and a ductility rating of 40%. It is rated for operating temperatures from -55°C to 155°C. Compatible tooling is interchangeable between CABAC and Burndy systems, providing practical flexibility for electrical contractors using established compression tooling.
Key Specs
- Model: CACD35
- Connector type: C connector, wide jaw
- Conductor range: 10–35mm
- Material: Copper
- Copper purity: 99.95%
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Operating temperature: -55°C to 155°C
- Electrical conductivity: 99.7% IACS
- Resistivity: 1.738 micro-ohm cm
- Suitable for direct burial
- Corrosion-resistant construction
- Tested to IEEE 837
- Tooling interchangeable between CABAC and Burndy
Ideal For
- Joining copper conductors
- Tapping copper conductors
- Distribution earthing systems
- Earthing and grounding networks
- Direct-burial earthing connections
- Electrical contractors and licensed electricians
- Commercial, industrial and infrastructure projects
