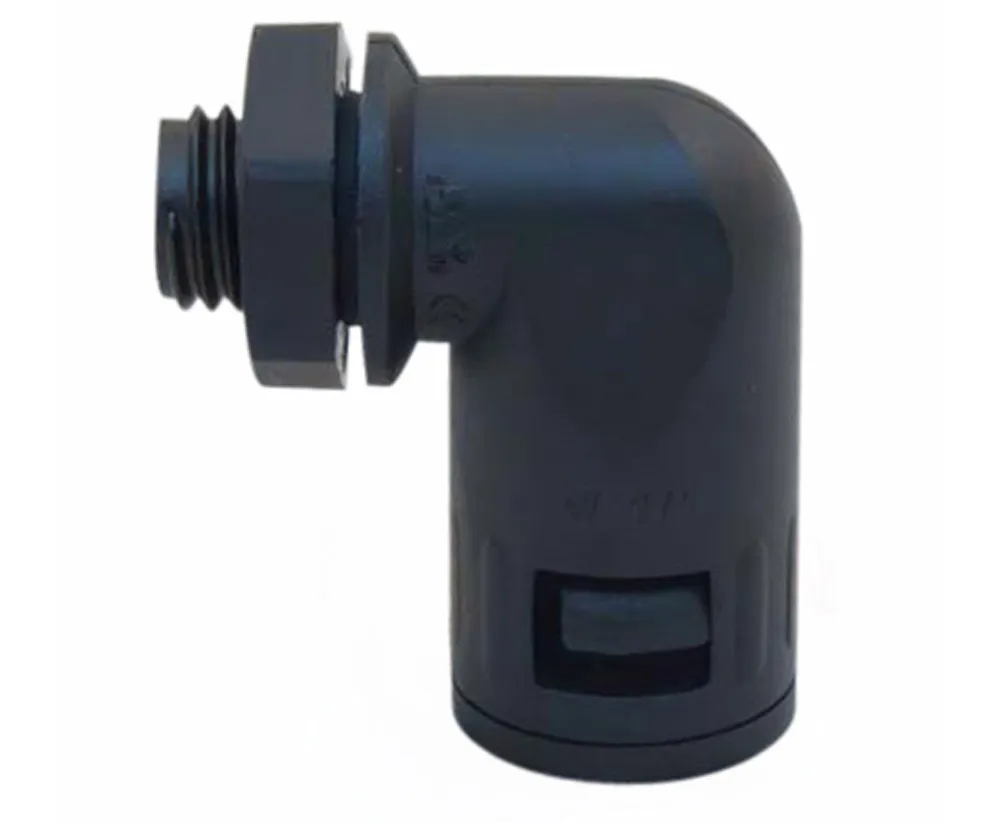

CABFLX 90 DEG QUICK CONN 20MM (1/each) CFM2-20B
$19.30 inc GST
- Non-metallic 90 Degree connector for liquid tight conduit, halogen free PA6 nylon, extreme low fire hazard UL94 V-0
- Halogen, phosphor and cadmium free, UV resistant
- Temperature rating -40 to +115 degrees Celsius, flame retardant
- Self-extinguishing, IP66, anti-static and RoHS compliant
- Self-locking Push Fit installation onto conduit, no tool required
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Description
Designed to complement the CABFLX range of low fire hazard conduits, these 90-degree conduit connectors are made from high quality polyamide nylon and are free from halogen, phosphor and cadmium. Our high-performance fittings feature a self-locking mechanism that allows for secure, push-fit installation onto conduit, with no special tools required.
CABFLX 90-degree conduit connectors are useful for navigating corners and changes in direction when working with flexible nylon conduit. These standard fittings offer IP66 rated ingress protection and are supplied complete with locknut.
Technical Data
Conduit Size: 20mm
Thread Size: M20 x 1.5
Temperature rating: -40 to +115 degrees Celsius (Intermittent to +150 degrees Celsius)
Additional information
| Brand | |
|---|---|
| MPN | |
| Type |
