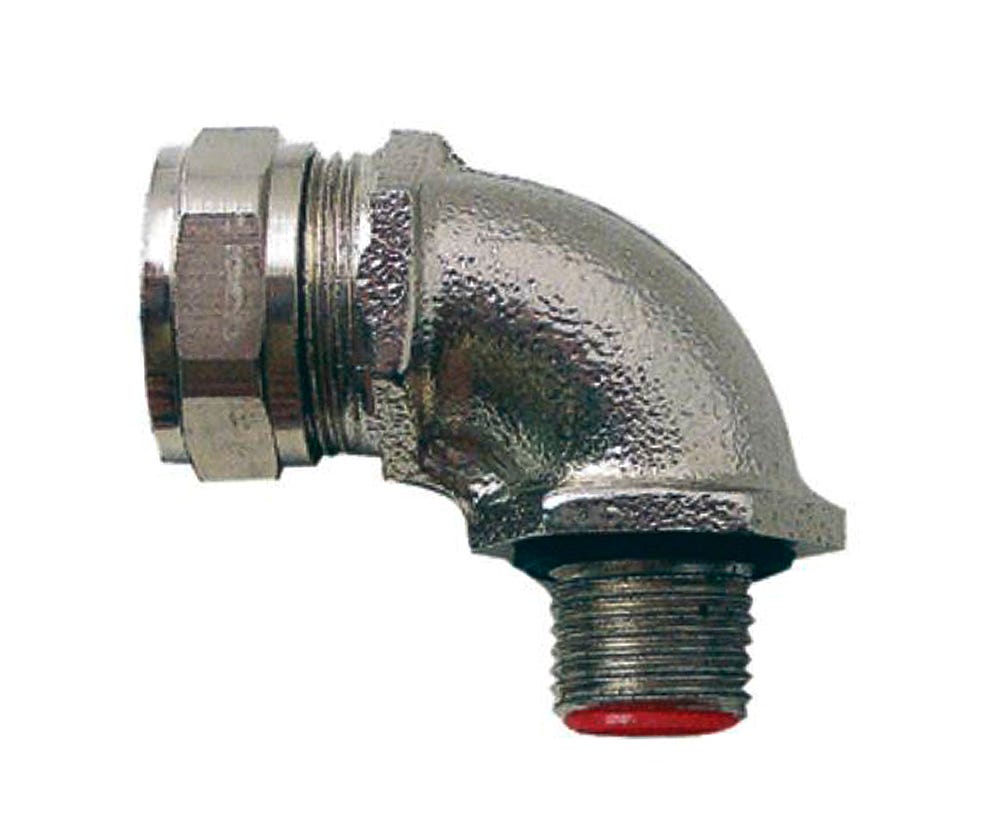

Adaptaflex M TYPE 90 DEG SWIVEL ELBOW M16 M20 SPL16/M20/C90
Conduit System
Description
90-degree elbow fitting with fixed external male thread
For insertion into threaded entries or knockouts to connect conduit
Typical applications include industry processing and automation
Temperature range of -65 to +150 degrees Celsius in static applications
Material: Nickel plated brass
Technical Specifications
Size (inch): 3/8
Nominal Conduit Size (mm): 16
Thread Size: M20
Conduit Ducting Fitting Type: Type M Swivel Elbow 90 Deg
