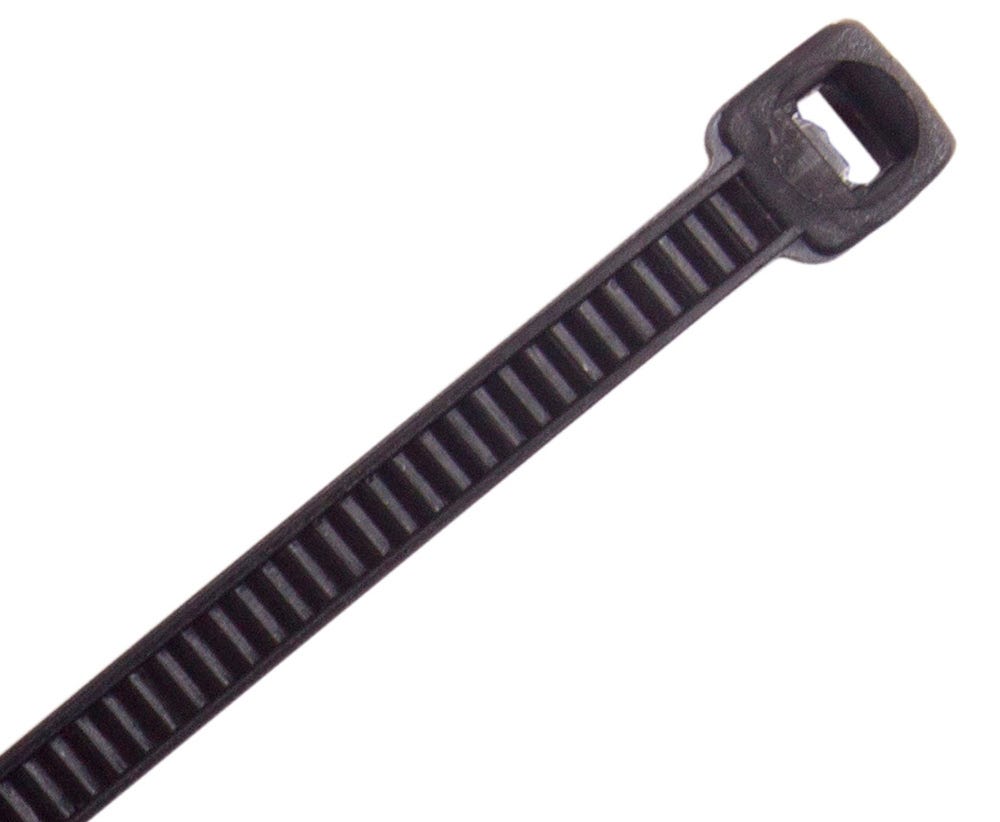

Cabac NYLON CABLE TIE 370 X 4.8MM UV BLACK CT360BK

Description

Product Description

Strength, durability and adjustability are paramount in the design and development of our cable ties. CABAC nylon cable ties are made from halogen free PA66 nylon with an integrally moulded head and pawl. This, combined with intimate locking engagement between the pawl and strap teeth, means that our cable ties have high durability and strength without any metal parts.?
?CABAC cable ties are designed to meet applicable strength requirements without sacrificing ease of use. In fact, our cable tie design incorporates several measures to improve comfort and safety. The product has smooth, round edges that are more comfortable to work with and reduce the risk of cuts to cable insulation or hands. The tail of the tie features a bent-tip with v-shaped grooving that prevents your grip from slipping. This means less effort during pick-up, insertion and pull through.?
?CABAC UV stabilised black cable ties are suitable for outdoor applications.

Technical Data

Loop Tensile Strength: 22kg?
Bundle Diameter: 102mm?
Length: 370mm?
Width: 4.8mm?
Thickness: 1.4mm?
Colour: Black?
Conformant Standards: UL, Mil Spec, IEC, VDE, DIN.?
Refer: Mil-S-23190E – testing?
Smoke Emission: Low smoke/ halogen free?
Material: PA66 with UV stabilisers?
UV Stability: 2.5% carbon black for UV protection?
Breakdown Voltage: 20 kV/mm?
Moisture Content: 2.5% w.v. @ 23%/50%RH?
Operating Temperature: -40 to +85 degrees Celsius?
Flammability: Passed U.L. 94V-2

Tools & Accessories

Installation tools are not required, but suggested where controlled, uniform tension and cut-off are needed.?
?
Cable Tie Tensioning Tool?
Part number: KTT?
?
Self-Adhesive Mount?
Part number: SAM25BK?
?
Screw Mount?
Part number: CTB5BK
