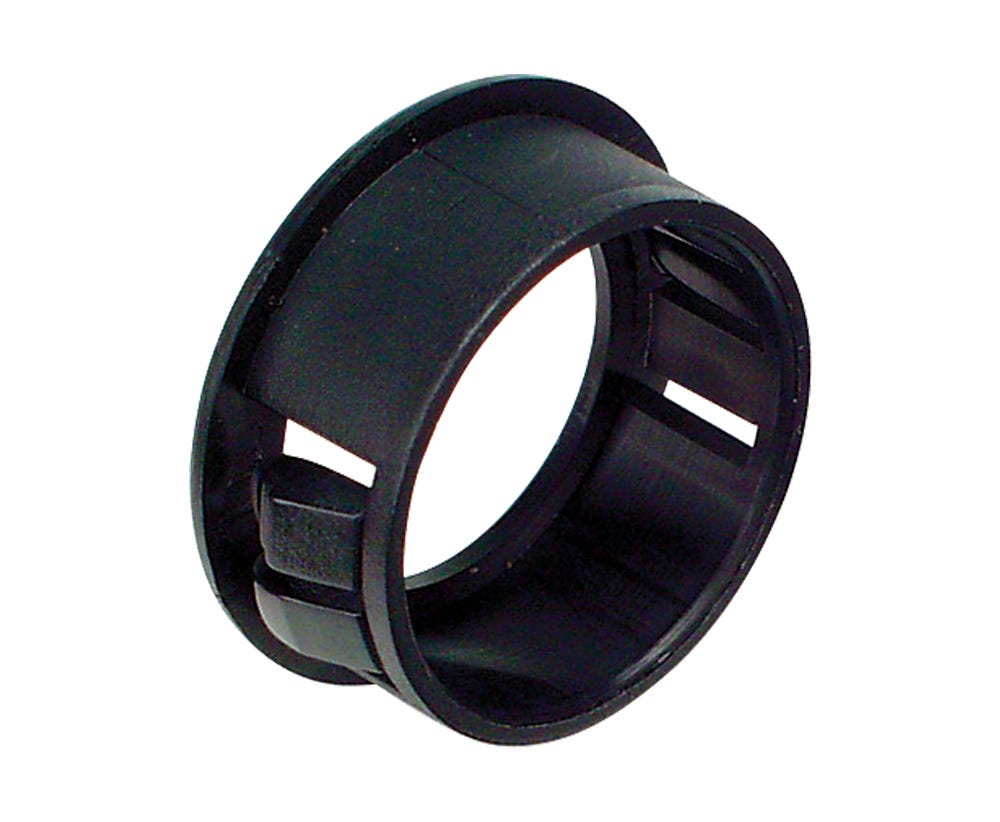

Cabac NYLON BUSH 15.9MM NSB16 x 100

Description

Product Description

Sharp edges can easily damage cables passing through panel holes. Our nylon bushes (grommets) are a quick and easy solution to this common problem, creating a smooth surface that protects cables against cuts and abrasions sustained from sharp chassis.?
?Installation is straightforward – the nylon bush grommet snaps into place using self-contained locking teeth to secure it to the panel hole. With the raw edges covered, feeding cables through the panel hole is a smooth and simple process. Alternatively, split bushing is available for when you need to retrofit cable protection to existing installations.?
?Our nylon bushing is available in a range of sizes, and is also compatible with our range of nylon plugs.

Product Dimensions

Chassis Thickness: 0.8-3.2mm?
Hole Size (A): 15.9mm?
Inner Diameter (B): 12.2mm?
Outer Diameter (C): 18.6mm?
Height (L): 10.3mm?

?Line drawing available for reference, see Additional Information.

Technical Data

Material: Nylon 66 UL, 94 V-2?
Colour: Black
