Cabac P CLIP NYLON 6.4 MM CABLE NATURAL PCN-6 x 100

Description

Product Description

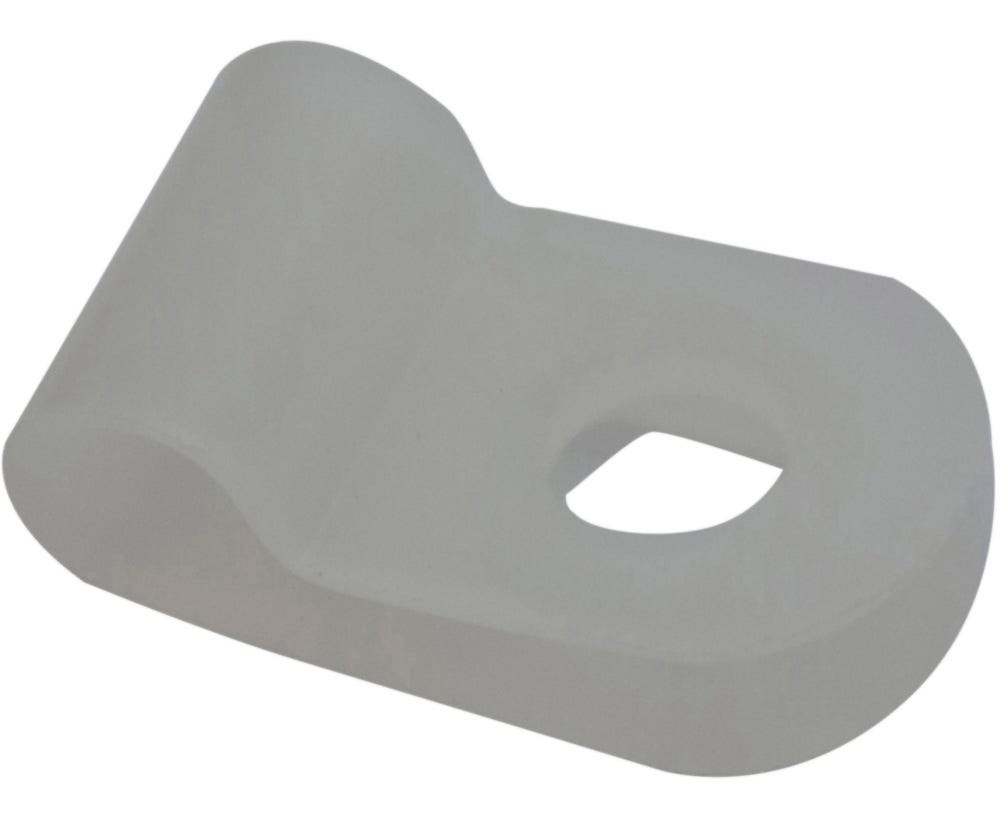

CABAC P clips provide an economical, secure way to mount cables and looms to just about any surface, including walls and cabinets.?
?Our natural P clips are manufactured from nylon 66, a durable material that suits indoor applications. The clip edges are radiused to prevent them from damaging the cable or bundle.?
?Part number PCN-6 will suit cables or bundles with a maximum diameter of 6.4mm. The cable, loom or harness is simply slipped into the clip, and is then mounted to the surface using a suitable fastener. Each P clip size has a 4.6mm mounting hole that allows it to be secured to a surface using a screw or bolt.

Product Dimensions

Max Cable Dia. (A): 6.4mm?
Width (B): 10mm?
Mount (C): 4.6mm?
(D): 10mm?
(E): 20mm?
(F): 1.4mm?

?Line drawing available for reference, see Additional Information.?

?We have a range of other sizes available for cable diameters up to 12.7mm, refer to the product datasheet for a selection chart.

Technical Data

Material: Nylon 66 94V-2 UL approved?
Max Operating Temperature: -40 to +90 degrees Celsius?
Colour: Natural
