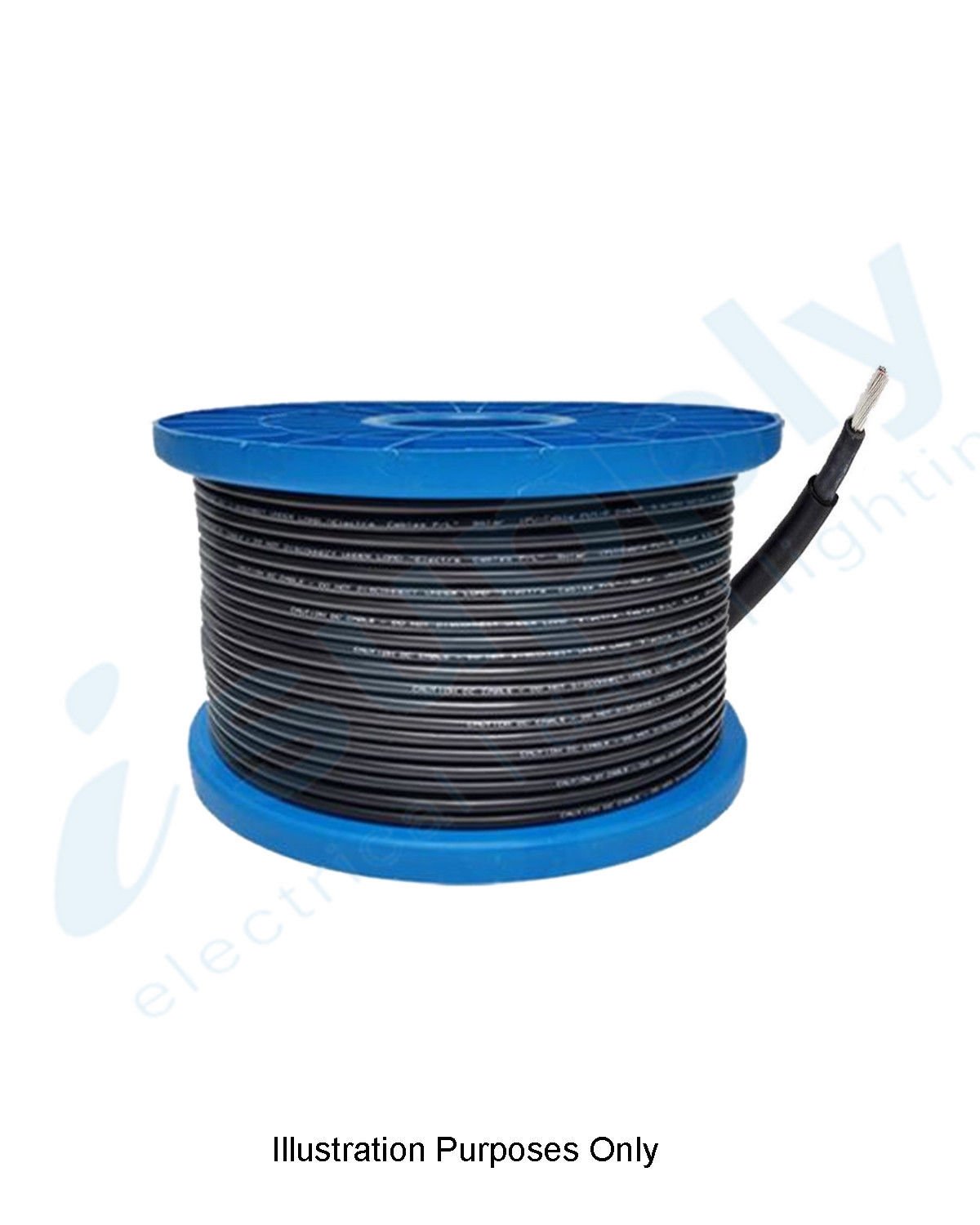

6mm² Single Core Solar Power Cable DC 30A PV Photovoltaic SHEATHED 100mtr

Description

6mm² Single Core Solar Power Cable DC 30A PV Photovoltaic Sheathed 100

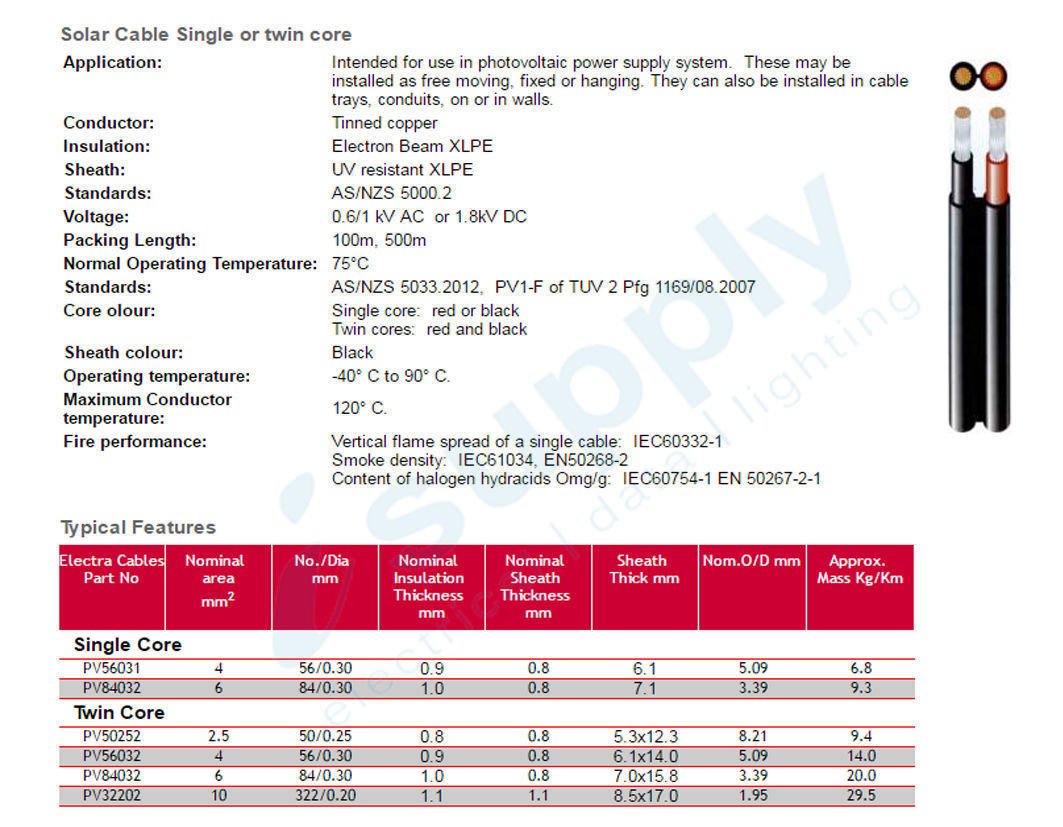

Structure & Dimensions

Model PV1-F

Type 1 x 6mm² Tinned Annealed Copper

Rating 600/1000 VAC, 1,800V DC (-40°C -> 120°C)

Conforms to standard 2PfG1169/08.07 TUV Rheinland

Conductor Material Tinned Copper

Structure 56/0.30

Max. diam of conductor 2.7mm

Material Photovoltaic with irradiation crosslinking polyolefin insulating materials

Overall diameter 4.2±0.1mm

Colour Red & Black

Jacket Material Photovoltaic with irradiation crosslinking polyolefin insulating materials

Overall Diameter 6.1±0.1mm

Colour Black

Mark Content & colour of print printed with ink/white

Conductor Max Resistance (DC) @ 200°C ≤ 5.09 /kg

Insulation Elongation at break ≥160%

Vol resist. @ 20°C ≥ 1.0 × 1012 Ω x m

Jacket elongation at break ≥ 160%

resist. @ 21°C ≥ 1.0 x Ω x m

Tax Invoice Included

Cheapest Prices Available! Call us for a BULK ORDER quote—pallet QTY quantities available ASAP

FREE Delivery to Anywhere in Sydney Metro for 1/2 Pallet > Pallet QTY’s

Additional Notes: Australian Standards Approved

Need bulk quantity? Contact us for a quote

Shipping cost is different if you are anywhere in Western Australia Please ask for a quotation. Thanks
