Securview 200m Combined Figure 8 & 4/6/6-Core Alarm / Access Control Cable APAC200G

Description

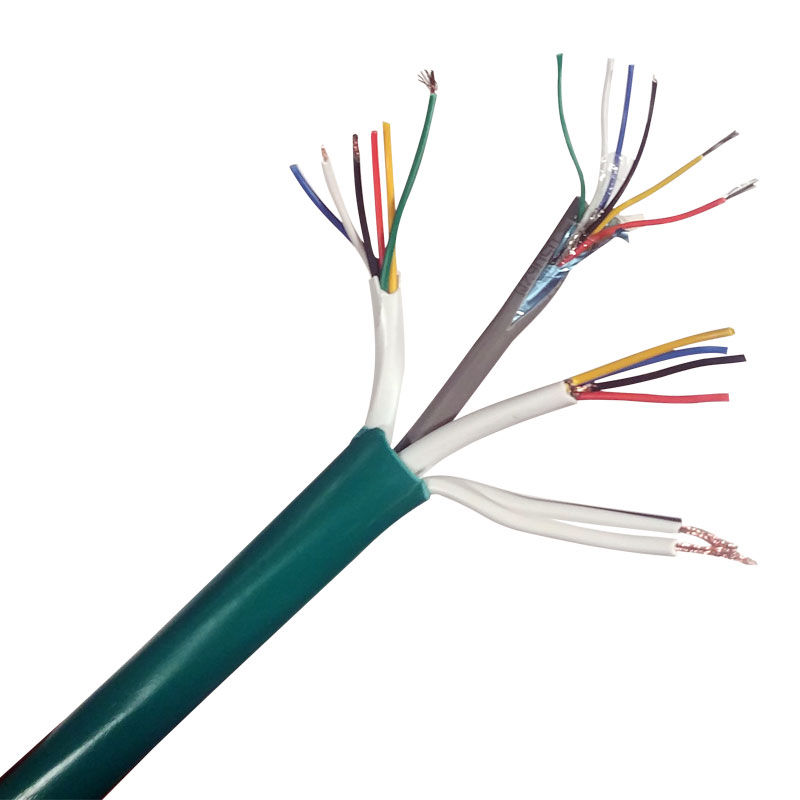

The APAC200G is an all-in-one composite cable, specifically designed for access control systems. The cable consists of 1 x 6-Core access control cable, 1 x 4-Core & 6-Core alarm cables, and 1 x Figure 8 power cable, all encased in a thick green outer sheath.

Product features:

• Specifically designed for access control installations

• Composite access control cable (200m length, green colour)

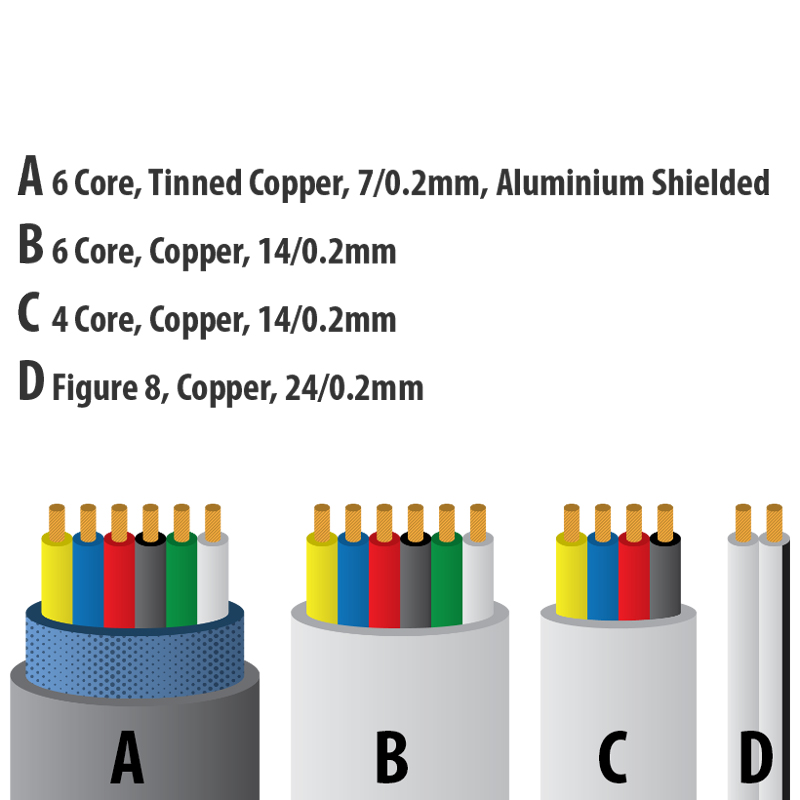

• 1x 24/0.2mm Figure 8 power cable

• 1x 7/0.2mm 6-Core tinned copper, aluminium shielded cable

• 1x 14/0.2mm 4-Core copper cable

• 1x 14/0.2mm 6-Core copper cable

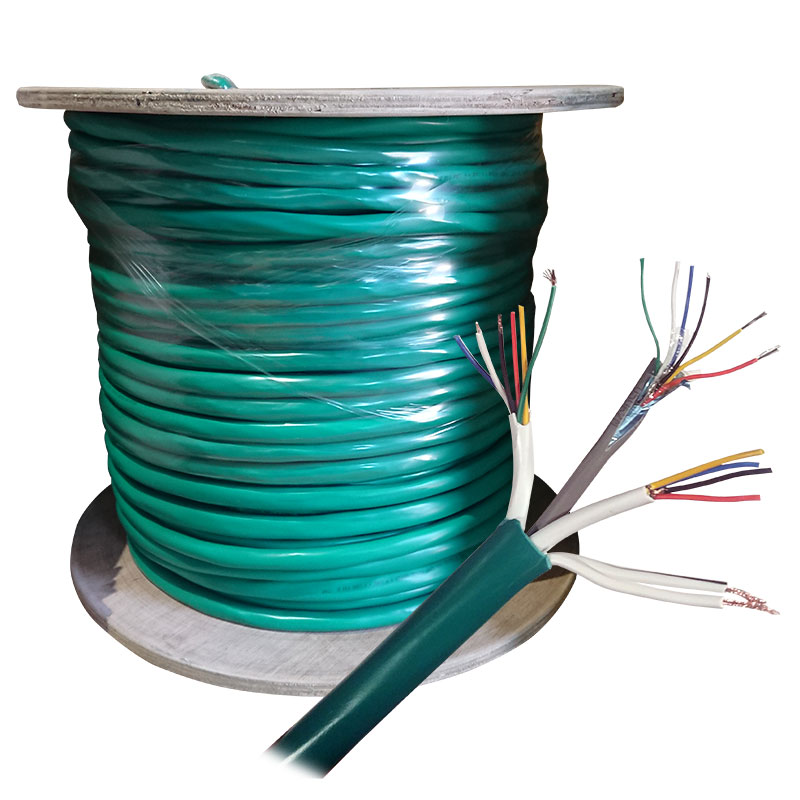

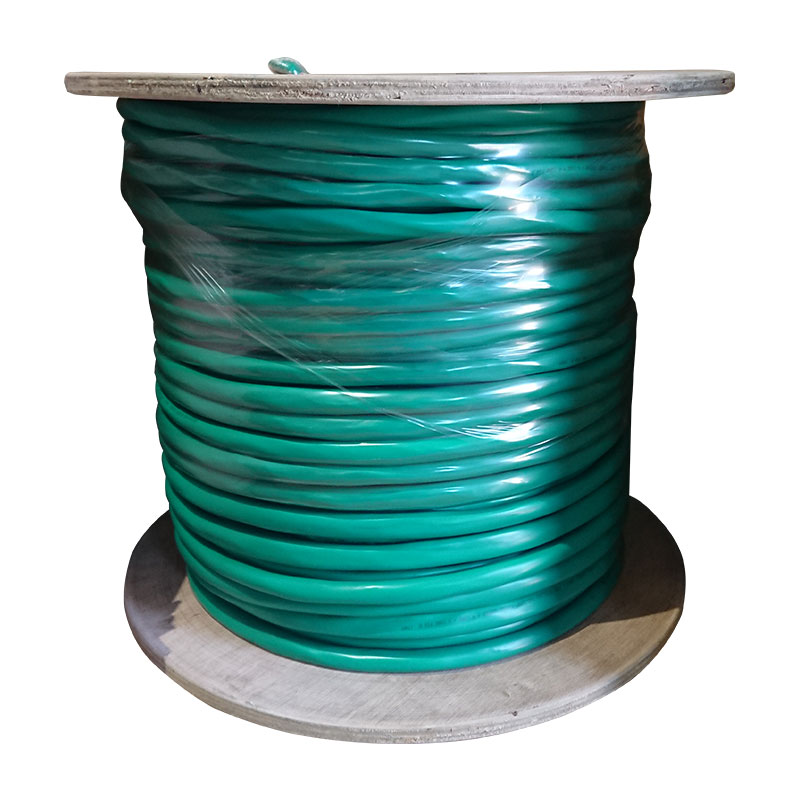

• Tough wooden spool

• PVC insulation & jacket

SPECIFICATIONS

Cable:

Cable Type: Figure 8 & 4/6/6-Core

Cable Length (Metres): 200m

Cable Colour: Green

Connection:

Termination: Unterminated

Other:

AWG (Approx): N/A

Warranty (Years): 1

Shipping Weight and Dimensions

Includes product and packages

Width: 415mm

Height: 480mm

Depth: 415mm

Weight: 60.00kg
