10 Mtre x 2.5mm 3 Core + Earth Flat Air Conditioning Cable Blue – Electra AC76704-CUT10 – Buy Per 10 Metres

Description

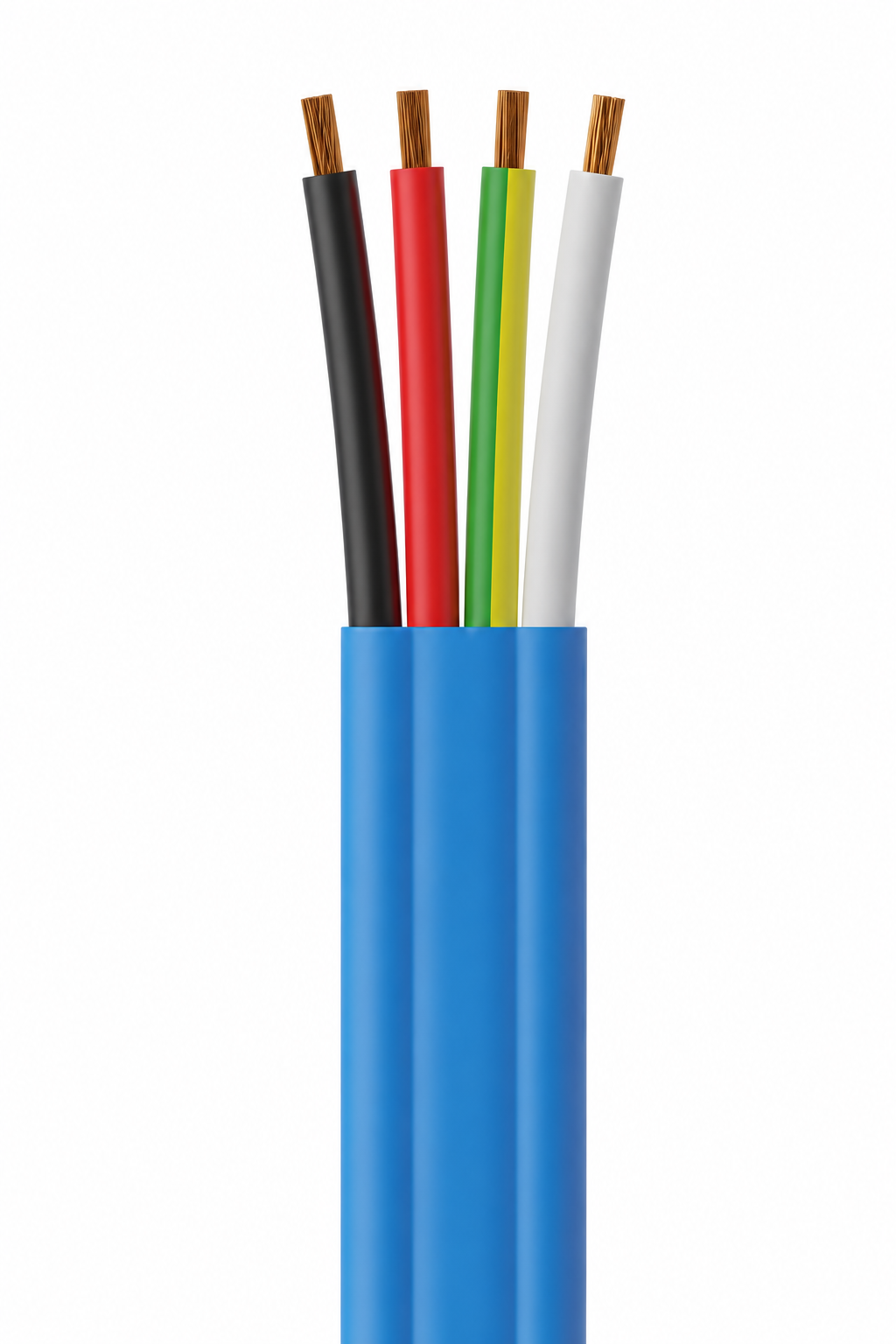

Electra 2.5mm² 3 Core + Earth Blue Air Conditioning Cable – Buy Per 10 Metres

Blue-sheathed flat air-conditioning cable with three insulated copper conductors plus an earth conductor. Suitable for air-conditioning interconnection wiring where the installation instructions specify this cable construction and size. Manufacturer part number: AC76704.

How to order

• Quantity 1 = 10 metres of cable.
• Quantity 2 = 20 metres, supplied as one continuous length where available.
• Quantity 3 = 30 metres, supplied as one continuous length where available.
• We cut the requested total in one continuous length where stock and maximum cut length allow. Contact iSupply before ordering unusually long cuts.

Product specifications

• Brand: Electra Cables
• Manufacturer reference (100 m drum): AC76704
• Conductor size: 2.5 mm²
• Core configuration: 3 Core + Earth (4 conductors including earth)
• Cable design: Flat air-conditioning interconnecting cable
• Outer sheath: Blue PVC
• Conductors: Plain annealed copper conductors
• Insulation and sheath: V75 PVC insulation with blue 4V-75 PVC outer sheath
• Voltage class: Refer to manufacturer documentation and the marking on the actual supplied drum; cable must meet the chosen equipment requirements.
• Selling unit: 10 metre cut, not a 100 metre drum

Installation notes

This is the indoor/outdoor air-conditioning interconnecting cable where permitted by the air-conditioner manufacturer. It is not automatically suitable for the switchboard-to-outdoor-unit mains supply, and is not interchangeable with shielded communications or flexible cable required by some systems. Installation and cable selection must be confirmed by a licensed electrician in accordance with applicable Australian requirements and the equipment wiring diagram.
