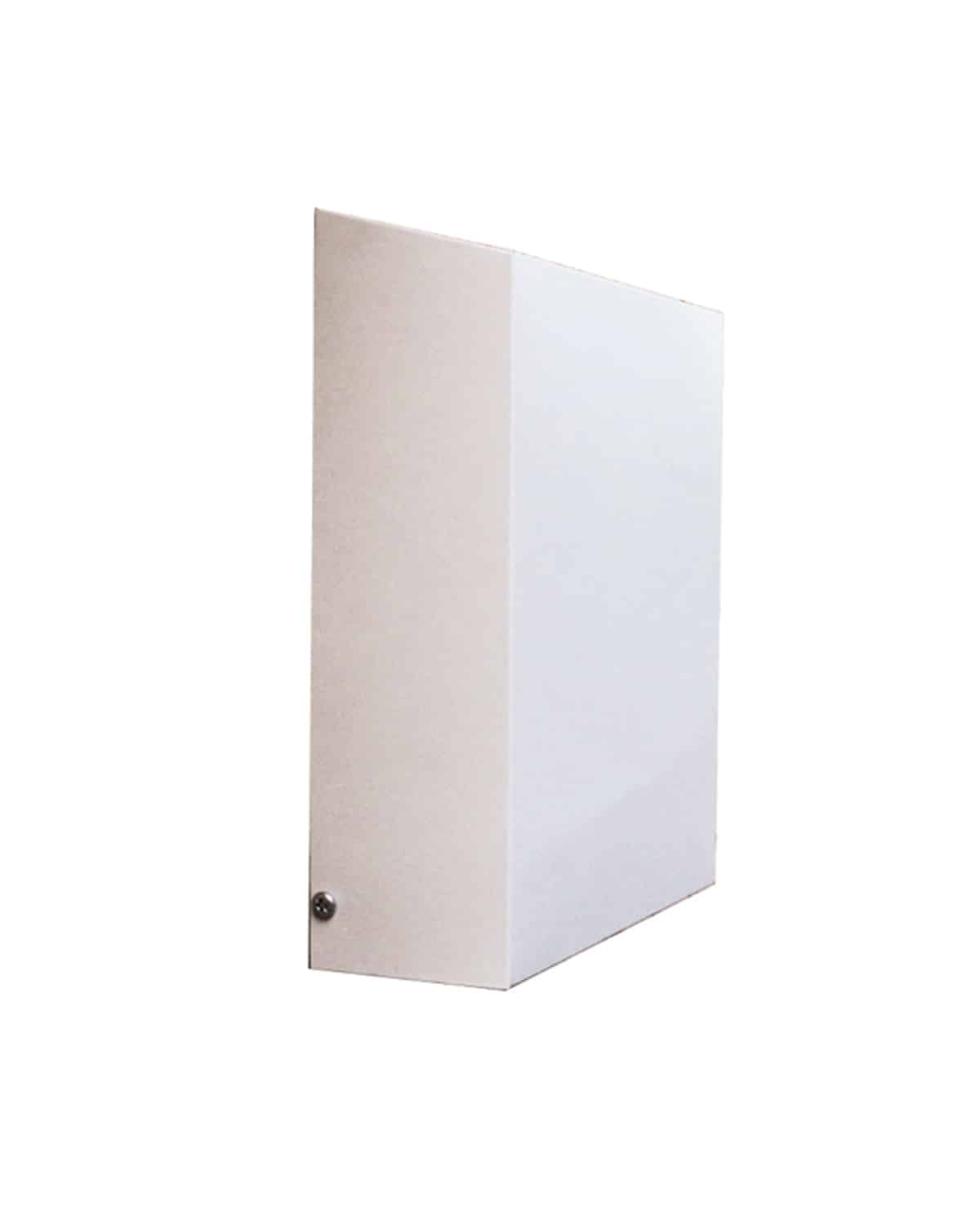

FANTECH Thru Wall Exhaust Fan 2 pole 150mm EWE152

The Ezifit Thru-Wall is an exterior surface-mounted exhaust fan that is very powerful and easy to install. It is ideal for downstairs toilets, laundries and kitchens, or for retrofitting an existing in-line fan system. It provides easy access for cleaning and is suitable for applications requiring long lengths of duct.

Features

• Designed for exterior surface mounting.
• The compact design makes it ideal for installation in tight spaces.
• Provides quiet, powerful exhaust.
• Can be used with a variable speed controller.
• Grey Colorbond finish that can be painted to match the wall colour.
• Fitted with insect-proof mesh.

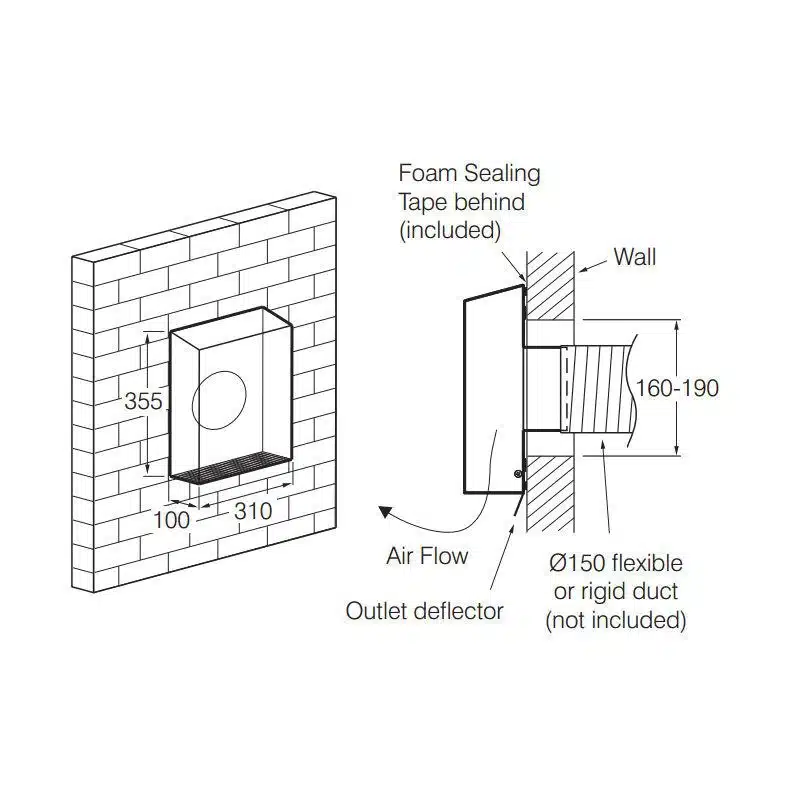

• Connects to 150mm diameter duct.
• Can exhaust from a number of points.
• Duct and grille kits are available.

Construction

Metal cover with shade grey Colorbond finish.

Insect-proof mesh included.

Backward-curved centrifugal fan with non-stalling characteristics.

Motors

Type – external rotor, squirrel cage induction motor.

Electricity supply – 230V, single-phase, 50Hz.

Bearings – sealed for life ball.

Speed-controllable using an electronic speed controller.

Class B motor, IP44 rated.

Internal Thermal Protection

Manual-reset thermal protection

Testing

Air flow tests to ISO5801:1997

Noise tests to BS848:Part 2 1985
