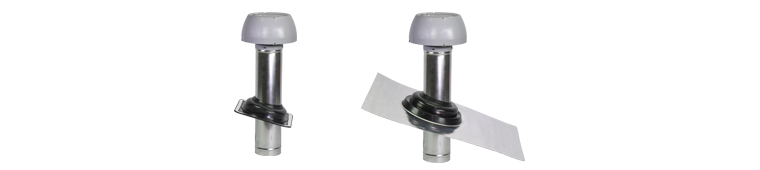

Fantech Ezifit Thru Roof Exhaust Fan (Plastic) ECEP156M

Description

The Ezifit Thru Roof exhaust fan is engineered to deliver strong airflow through 150mm and 200mm ducts from one or more locations, making it ideal for long duct runs. Designed for easy installation, this unit operates quietly within the building since it is mounted externally on the roof.

Eight different models are available, each with a choice of metal deck or tile roof flashing.

Features:

Duct made of galvanized steel with a UV-stabilized ABS plastic cowl.
Simple installation process.
Includes a convenient 3-pin plug and lead.
Motor assembly connects to the duct via a 3-pin plug.
Delivers high performance with minimal noise.
Capable of exhausting air from multiple points or rooms.
Compatible with both tile and metal deck roofs.
External mounting ensures quiet operation inside the building.
Features a high-quality ‘Continuous Rated’ motor.
Adjustable speed with an electronic controller.
Optional colored finish available.
Supply air units also offered.
Construction:

Galvanized steel duct.
UV-stabilized ABS plastic cowl.
Backward-curved centrifugal impeller.
Includes duct support straps and brackets for the 204 model.
Roof flashing piece provided; specify roof type (tile or metal) when ordering.
Motors:

Type: External rotor, squirrel cage induction motor.
Power supply: 230V, single-phase, 50Hz.
Bearings: Sealed-for-life ball bearings.
Can be equipped with a speed controller.
Additional motor details are available on pages O-2/3.
Internal Thermal Protection:

Auto-reset type.
Testing:

Airflow tested according to ISO5801:2007.
Noise tested based on BS848: Part 2, 1985.
