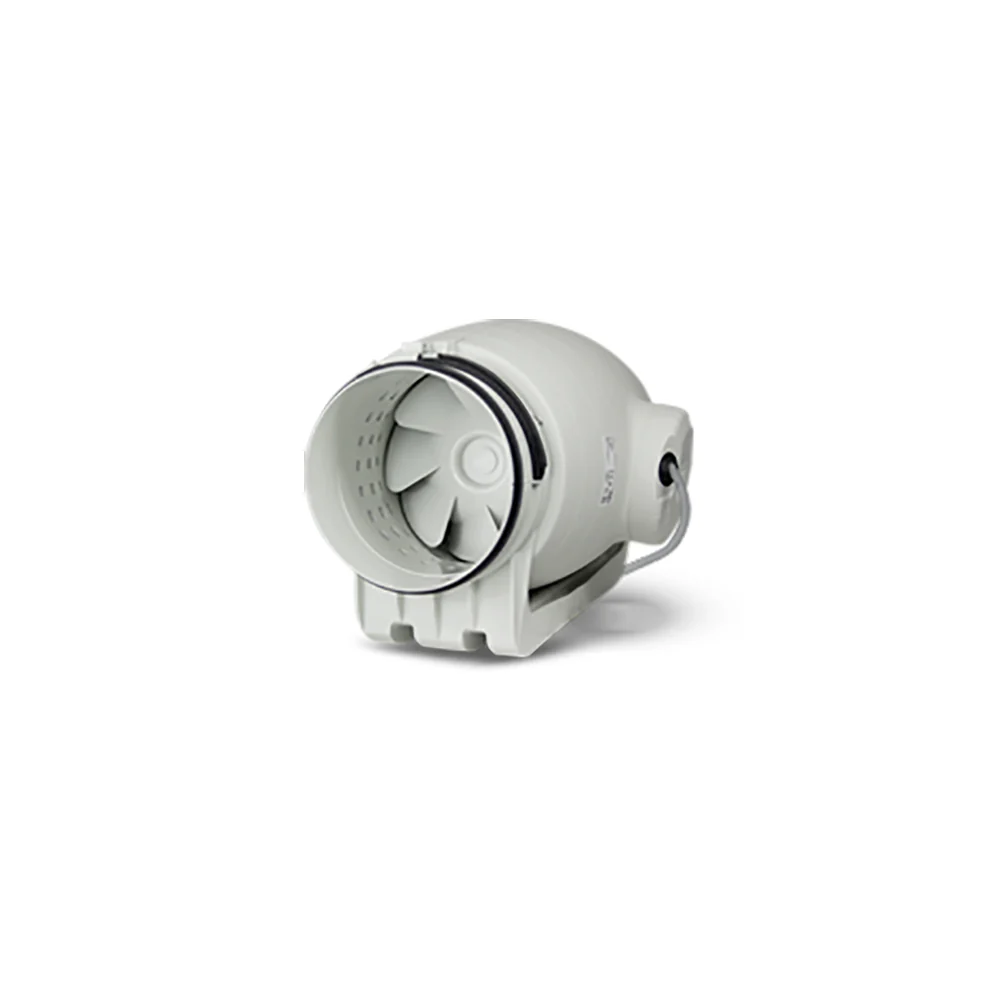

Fantech TD Silent Exhaust Fan Series L575mm TD-250/100SIL

Description

Keep Ventilation Powerful and Quiet

The Fantech TD Silent Exhaust Fan Series combines effective air movement with reduced operating noise, making it a practical choice where ventilation performance and quieter operation are both important. The TD-250/100SIL uses a high-performance mixed-flow impeller to support efficient airflow through ducted ventilation systems while its internal design helps minimise noise.

Powered by a 230V single-phase, 50Hz squirrel cage induction motor, this model provides reliable operation for demanding ventilation applications. Its two-speed motor gives tradespeople flexibility when adjusting fan performance to suit the requirements of an installation. The motor operates at 31 rps or 37 rps, with an 18W / 24W wattage rating.

Built for Reliable Installation

Designed with practical installation in mind, the Fantech TD Silent Exhaust Fan features an integrated mounting foot that simplifies positioning and securing the fan. The included plug and lead also help streamline electrical connection during installation.

The fan body can be removed without disturbing the connected ductwork, providing a useful advantage when servicing or maintaining the ventilation system. Ball bearings support dependable fan operation, while the IP44 rating provides protection suited to the specified application. With a maximum ambient temperature of 60°C, the fan is designed to operate reliably across a range of ventilation environments.

A Practical Choice for Trade Projects

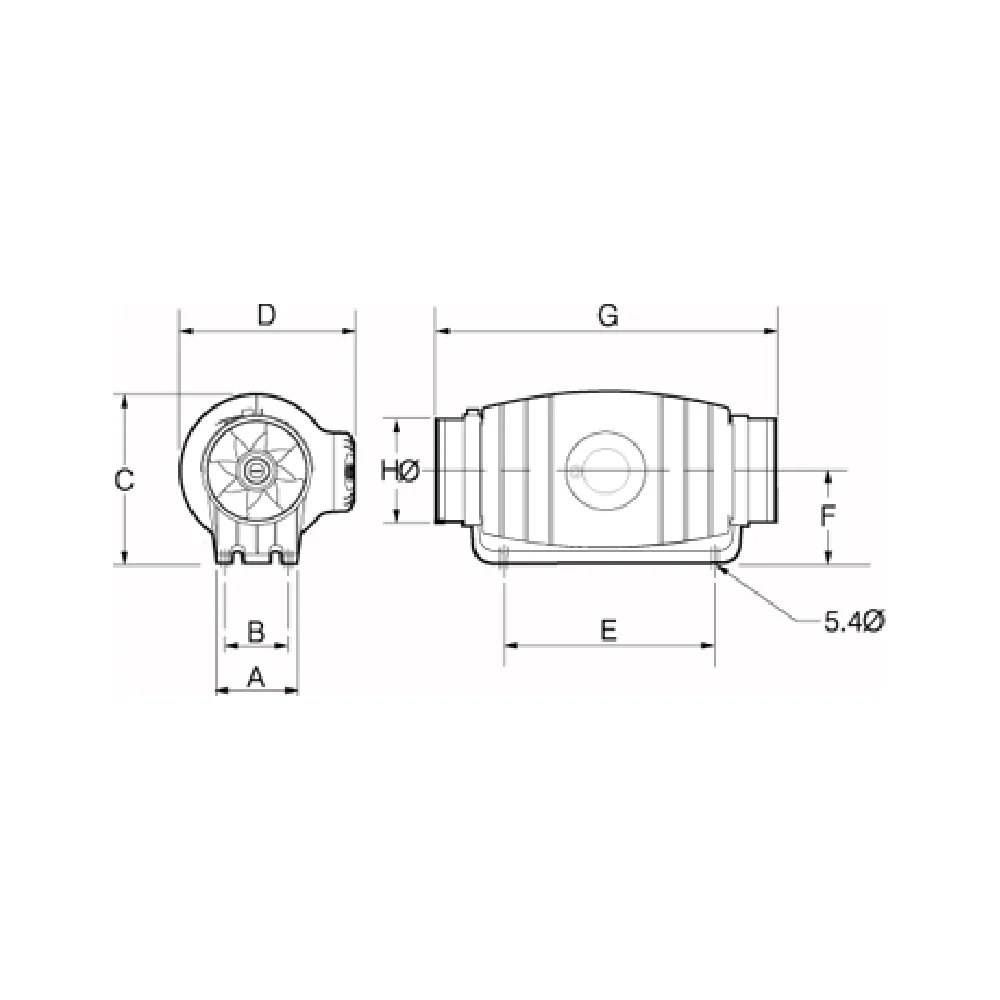

With a 233mm width, 233mm height and 575mm length, the TD-250/100SIL is designed for integration into ducted ventilation systems where dependable air movement and reduced noise are priorities. Its Fantech Trade design makes it suitable for professional electrical and mechanical installation work.

Key Specs

• Brand: Fantech Trade
• Collection: TD Silent
• SKU: TD-250/100SIL
• Operating voltage: 240V
• Motor supply: 230V, single-phase, 50Hz
• Wattage: 18W / 24W
• Speed: 31 rps / 37 rps
• Motor type: 2-speed squirrel cage induction motor
• Bearings: Ball
• Maximum ambient temperature: 60°C
• IP rating: IP44
• Usage: Outdoor
• Width: 233mm
• Length: 575mm
• Height: 233mm
• Base width: 83mm

Ideal For

• Licensed electricians installing ducted ventilation systems
• Commercial and industrial ventilation projects
• Maintenance teams requiring accessible fan servicing
• Applications where reduced operating noise is important
• Projects requiring reliable mixed-flow air movement
• Trade installations where straightforward mounting and connection are valued
