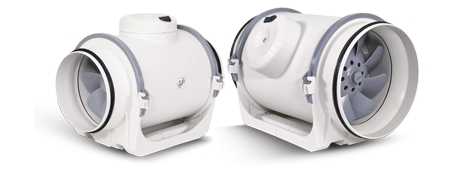

Fantech TD EVO VAR DUAL CONTROL IN-LINE DUCT MOUNTED FAN TD-EVO-250VAR
$1,633.20 inc GST
Model No.: TD-EVO-250VAR

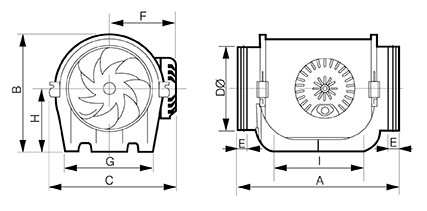

Dimensions (mm):
A: 390
B: 289
C: 306
DØ: 247
E: 40
F: 159
G: 230
H: 155
Weight: 6.2 kg
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
The TD EVO VAR in-line fan is designed to offer outstanding performance with low energy consumption for both residential and commercial environments. It features adjustable speed control either through an on-board potentiometer or remotely via a 0-10V or 4-20mA analogue input signal.
Additionally, the TD EVO VAR is equipped with an adjustable run-on timer (1 to 30 minutes), allowing continued extraction of steam and odors after leaving the room.
Suitable for use in toilets, bathrooms, ensuites, laundries, and kitchens in homes, hotels, apartments, and commercial spaces, this fan comes in 6 models to fit standard duct sizes ranging from 100 to 315mm in diameter.
Features:
High-performance mixed-flow impeller
Optimized impeller, guide vanes, and outlet diffuser for quieter operation
Main fan body can be detached without disrupting the ductwork
Highly efficient single-phase AC motor
Flexible mounting options
Rotatable junction box
Integrated run-on timer with options for 0, 1, 5, 15, and 30 minutes
