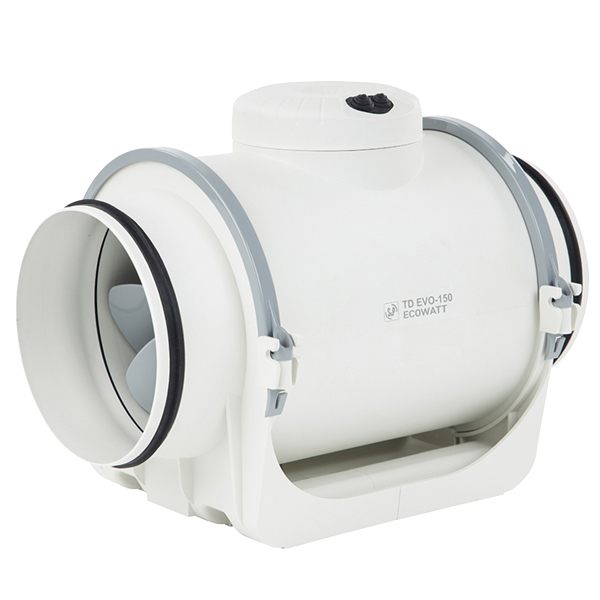

Fantech TD EVO VAR DUAL CONTROL IN-LINE DUCT MOUNTED FAN TD-EVO-100VAR
$734.40 inc GST
Model No: TD-EVO-100VAR

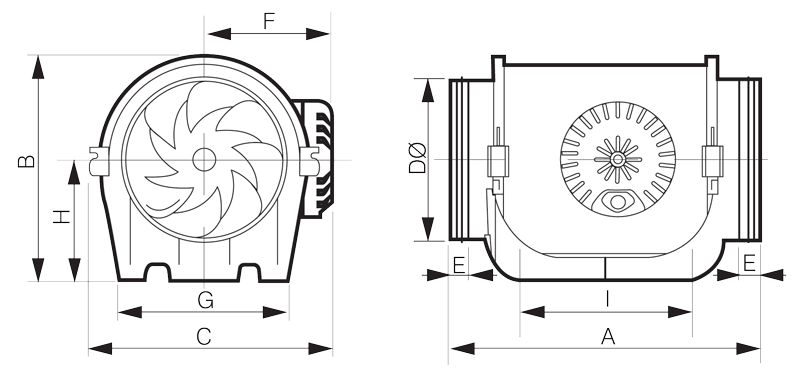

Dimensions:
A: 302 mm
B: 181 mm
C: 201 mm
DØ: 97 mm
E: 29 mm
F: 107 mm
G: 133 mm
H: 100 mm
Weight: 1.7 kg
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
The TD EVO VAR in-line fan is engineered to deliver exceptional performance with minimal energy use for both domestic and commercial settings. It features adjustable speed control through an on-board potentiometer or remotely via a 0-10V or 4-20mA analogue input signal.
Additionally, the TD EVO VAR includes a built-in, adjustable run-on timer (1 to 30 minutes) that allows for continued extraction of steam and odors after you leave the room.
This fan is ideal for use in toilets, bathrooms, ensuites, laundries, and kitchens within homes, hotels, apartments, and commercial buildings. The range includes 6 models to fit standard duct sizes from 100 to 315mm in diameter.
Features:
High-performance mixed-flow impeller
Optimized impeller, guide vanes, and outlet diffuser for reduced noise
Main fan body can be removed without disturbing ductwork
Highly efficient single-phase AC motor
Versatile mounting options
Rotatable junction box
Integrated run-on timer with settings for 0, 1, 5, 15, and 30 minutes
