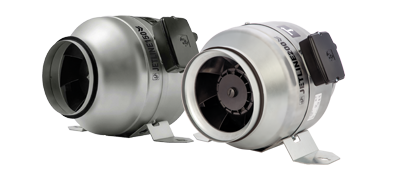

Fantech In-line Duct Mounted Fan JETLINE-250ECO

Description

Efficient EC Motor Performance

The Fantech JETLINE-250ECO is an energy-efficient Fantech in-line duct fan designed to provide reliable air movement through standard circular ducting. Its advanced electronically commutated (EC) motor combines high performance with efficient operation, while speed can be adjusted from 10% to 100% using the internal potentiometer or a 0-10V external control signal. This makes the fan suitable for applications where precise airflow management is required.

A patented centrifugal impeller, enhanced guide vane and outlet diffuser work together to deliver effective airflow with reduced operating noise. Silent-block motor mounts help minimise vibration, supporting quieter operation in residential, commercial and other ventilation installations.

Durable Construction and Flexible Installation

Built for trade and professional applications, the JETLINE-250ECO features a pressed galvanised sheet-steel outer housing and foot mount for dependable durability. Internal components, including the patented centrifugal impeller, are manufactured from injection-moulded plastic.

Installation is made easier with the supplied galvanised steel quick-fit mounting bracket. The fan is designed for direct connection to standard circular ducting and can be installed in any position, giving electricians and HVAC professionals greater flexibility when working around existing ductwork and restricted installation spaces.

Reliable Air Movement for Trade Applications

The Fantech JETLINE-250ECO is designed for professionals who need dependable ventilation equipment that is straightforward to install and configure. Its adjustable EC motor allows airflow to be tailored to the requirements of the installation, while the durable housing and sealed-for-life bearings support reliable ongoing operation.

For electrical and HVAC contractors, the combination of energy-efficient motor technology, flexible speed control, quiet operation and quick-fit installation makes this 250mm duct fan a practical choice for new installations, upgrades and maintenance work.

Key Specs

• Model: JETLINE-250ECO
• Product type: In-line duct mounted fan
• Motor type: Electronically commutated (EC)
• Power supply: 230V ±10%, single-phase, 50/60Hz
• Speed adjustment: 10%–100%
• External control: 0-10V analogue input
• Bearings: Sealed-for-life ball bearings
• Insulation class: Class B
• Protection rating: IP44
• Housing: Pressed galvanised steel
• Mounting: Galvanised steel quick-fit bracket
• Installation: Any orientation
• Protection: Manual-reset thermal overload device
• Standard: AS/NZS 60335-2-80:2016

Ideal For

• Residential ventilation installations
• Commercial ventilation systems
• HVAC contractors and installers
• Electrical contractors working on ventilation projects
• Maintenance and facilities teams
• Applications requiring adjustable airflow
• Installations using standard circular ducting
• Projects where low vibration and quieter operation are important
• Installations requiring flexible mounting orientation
