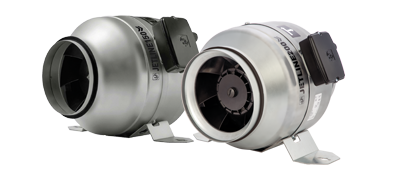

Fantech In-line Duct Mounted Fan JETLINE-150ECO
$1,222.58 inc GST
The Fantech Jetline-150ECO is a compact in-line duct fan featuring an efficient EC motor, adjustable speed control, quiet operation and flexible mounting. Built with galvanized steel construction and a quick-fit bracket, it suits residential, commercial and light industrial ventilation projects requiring dependable airflow, installation and durable performance.
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
20 in stock
Description
Efficient Air Movement for Ducted Systems
Built for direct connection to standard circular ducting, the Jetline-150ECO is suited to installations where dependable ventilation and space-efficient equipment are important. The optimized impeller, guide vane and outlet diffuser support quiet operation, while silent-block motor mounting helps minimize vibration and noise. Speed can be adjusted from 10% to 100%, giving installers greater control over ventilation performance.
Durable Construction and Flexible Installation
The fan features a pressed galvanized steel outer housing and foot mount for robust construction in demanding installation environments. Internal components and the patented centrifugal impeller are injection-molded plastic. A galvanized steel quick-fit mounting bracket simplifies installation, and the fan can be installed in any orientation to suit different duct layouts and site requirements.
Trade-Ready Ventilation Performance
The Jetline-150ECO is a practical choice for electricians, HVAC installers, builders and maintenance professionals who need reliable in-line ventilation equipment with flexible speed control. Its compact construction, efficient EC motor and adaptable mounting design help simplify installation while supporting consistent ventilation performance.
Key Specs
- Model: JETLINE-150ECO
- Motor: Electronically commutated (EC)
- Power supply: 230V ±10%, single-phase, 50/60Hz
- Speed control: 10% to 100% via 0-10V analogue input
- Bearings: Sealed-for-life ball bearings
- Insulation: Class B
- Protection: IP44
- Thermal overload: Manual-reset
- Standard: AS/NZS60335-2-80:2016
- Housing and foot mount: Pressed galvanized steel
- Mounting bracket: Galvanized steel quick-fit type
Ideal For
- Residential ventilation systems
- Commercial ventilation installations
- Light industrial applications
- Standard circular ducting systems
- Projects requiring adjustable fan speed
- Installations where low vibration and noise are important
- Electrical and HVAC contractors needing flexible mounting options
