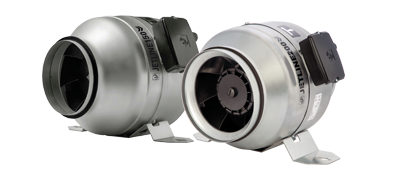

Fantech In-line Duct Mounted Fan JETLINE-125ECO

Description

The Jetline EcoWatt is a high-performance, compact in-line fan featuring advanced EC motor technology. It includes silent-block motor mounting to minimize vibrations and reduce noise levels. The fan is designed for easy installation with its quick-fit mounting bracket and is adaptable to any mounting position. The range consists of six models that fit standard duct sizes from 100 to 315mm in diameter.

Features:

Energy-efficient with cutting-edge EC motor technology.
Adjustable speed from 10% to 100% using a 0-10V analogue input signal.
High-performance, patented centrifugal impeller.
Engineered for quiet operation with optimized impeller, guide vane, and outlet diffuser.
Directly connects to standard diameter circular ducting.
Low-profile, durable outer casing made of galvanized sheet steel.
Sturdy galvanized steel quick-fit mounting bracket for easy installation.
Can be mounted in any orientation.
Construction:

Outer housing and foot mount are made from pressed galvanized steel for robust durability.
Internal components and the patented centrifugal impeller are constructed from injection-molded plastic.
Motor:

Type: Electronically commutated (EC) motor.
Power supply: 230V ±10%, single-phase, 50/60Hz.
Bearings: Sealed-for-life ball bearings.
Speed control: Adjustable via an internal potentiometer in the terminal box or an EC-type speed controller with a 0-10V external signal.
Insulation: Class B, IP44 rated.
Internal Protection:

Equipped with manual-reset thermal overload protection, complying with AS/NZS60335-2-80:2016 standards for in-duct fans.
