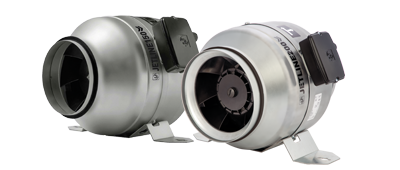

Fantech In Line Centrifugal Duct Fan JETLINE-315

Description

Efficient Inline Air Movement for 315mm Ducting

The Fantech JETLINE-315 is a high-performance inline centrifugal duct fan designed to provide efficient air movement through standard 315mm circular ducting. Its patented centrifugal impeller works with an optimized guide vane and outlet diffuser to support effective airflow while helping minimise operational noise. This makes it a practical choice for ventilation installations where reliable performance and quieter operation are important.

The compact design connects directly to standard circular ductwork, while the galvanized sheet-steel outer casing provides a durable housing suited to trade and professional applications. Silent-block motor mounts help reduce vibration, supporting smoother operation in installed ventilation systems.

Fast Installation and Flexible Mounting

Installation is made simpler with the sturdy galvanized steel quick-fit mounting bracket. The JETLINE-315 can be mounted in different orientations, giving installers greater flexibility when working around existing ductwork, equipment and restricted spaces. A supplied plug and lead also supports straightforward electrical connection.

The internal housing and patented centrifugal impeller are made from injection-molded plastic, while the outer housing and foot mount use pressed galvanized steel. Together, these construction features provide a practical combination of durability and installation convenience for ventilation projects.

Reliable Motor and Built-In Protection

The JETLINE-315 uses a single-speed squirrel cage induction motor powered by a 220–240V single-phase 50Hz supply. Sealed-for-life ball bearings help provide dependable operation with minimal bearing maintenance, while compatibility with VA-type speed controllers provides additional installation flexibility.

The motor features Class F insulation and an IP44 rating. For the JETLINE-315, manual-reset thermal overload protection helps protect the fan motor during operation. The internal protection system complies with AS/NZS 60335-2-80:2016 requirements for in-duct fans.

Key Specs

• Model: JETLINE-315
• Fan type: Inline centrifugal duct fan
• Duct size: 315mm
• Power supply: 220–240V, single-phase, 50Hz
• Motor type: Single-speed squirrel cage induction motor
• Bearings: Sealed-for-life ball bearings
• Speed control: Compatible with VA-type speed controllers
• Insulation: Class F
• Protection rating: IP44
• Internal protection: Manual-reset thermal overload protection
• Construction: Pressed galvanized steel outer housing and foot mount
• Impeller: Patented centrifugal impeller
• Mounting: Quick-fit galvanized steel mounting bracket
• Connection: Supplied with plug and lead
• Standard: AS/NZS 60335-2-80:2016 for in-duct fans

Ideal For

• Licensed electricians and HVAC installers working on ventilation systems
• Commercial and industrial duct ventilation installations
• Projects requiring 315mm standard circular duct connections
• Installations where reduced vibration and quieter operation are beneficial
• Trade professionals needing flexible fan mounting options
• Maintenance and replacement applications requiring a compact inline fan
