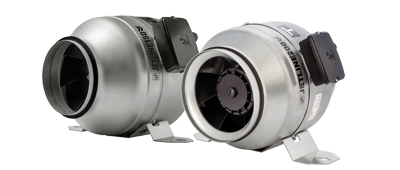

Fantech In Line Centrifugal Duct Fan JETLINE-100ECO
$990.26 inc GST
The Fantech JETLINE-100ECO is an efficient EC motor inline centrifugal duct fan with 10–100% variable speed control, quiet operation, flexible mounting and a durable galvanized steel casing. Designed for standard circular ducting, it provides a practical ventilation solution for residential, commercial and trade applications requiring controlled air movement and reliable performance.
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
20 in stock
Description
Efficient EC Motor Performance
The Fantech JETLINE-100ECO is a high-performance in-line centrifugal duct fan designed to provide efficient air movement through standard circular ducting. Its advanced electronically commutated (EC) motor technology supports energy-efficient operation while allowing flexible speed adjustment from 10% to 100%. Speed can be controlled using the internal potentiometer in the terminal box or an EC-type speed controller connected through a 0-10V analogue input signal. This makes the Jetline EcoWatt a practical choice for ventilation systems where controlled airflow and efficient operation are important.
The patented centrifugal impeller is optimized alongside the guide vane and outlet diffuser to support quiet, effective air movement. Sealed-for-life ball bearings and an IP44-rated motor provide dependable operation for suitable in-duct applications.
Compact, Quiet and Durable Construction

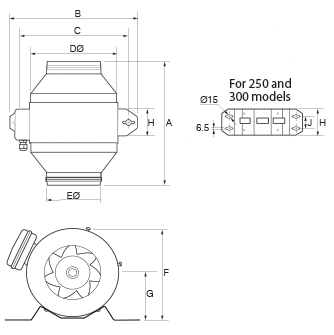

Built for installation flexibility, the JETLINE-100ECO features a low-profile galvanized steel casing with a sturdy galvanized steel quick-fit mounting bracket. The fan can be mounted in any position, helping installers accommodate different duct layouts and space requirements. The housing and foot mount are manufactured from pressed galvanized steel for durability, while the internal housing and patented centrifugal impeller use injection-molded plastic construction.
Its silent-block motor mounting helps minimize vibration and operating noise, making it well suited to projects where efficient ventilation needs to be balanced with a quieter installation environment. The design is intended for direct connection to standard circular ducting, simplifying integration into compatible ventilation systems.
Fast Installation and Reliable Operation
The JETLINE-100ECO is designed with trade installation requirements in mind. Its quick-fit mounting bracket helps streamline installation, while the compact construction makes it easier to position within suitable ductwork layouts. The 230V ±10% single-phase motor operates at 50/60Hz and incorporates manual-reset thermal overload protection. The motor insulation is Class B and the unit is IP44 rated.
Key Specs
- Model: JETLINE-100ECO
- Motor type: Electronically commutated (EC)
- Power supply: 230V ±10%, single-phase
- Frequency: 50/60Hz
- Speed control: Internal potentiometer or 0-10V external signal
- Speed range: 10% to 100%
- Motor insulation: Class B
- Motor protection: IP44
- Bearings: Sealed-for-life ball bearings
- Construction: Pressed galvanized steel housing and foot mount
- Impeller: Patented centrifugal, injection-molded plastic
- Mounting: Any position
- Installation: Direct connection to standard circular ducting
- Thermal protection: Manual-reset thermal overload
- Compliance: AS/NZS 60335-2-80:2016 requirements for in-duct fans
Ideal For
- Residential ventilation installations
- Commercial ventilation systems
- Electrical and HVAC trade projects
- Standard circular ducting applications
- Installations requiring variable fan speed control
- Projects where compact construction and reduced vibration are important
- Maintenance and replacement ventilation work
- Trade installations requiring flexible mounting options
